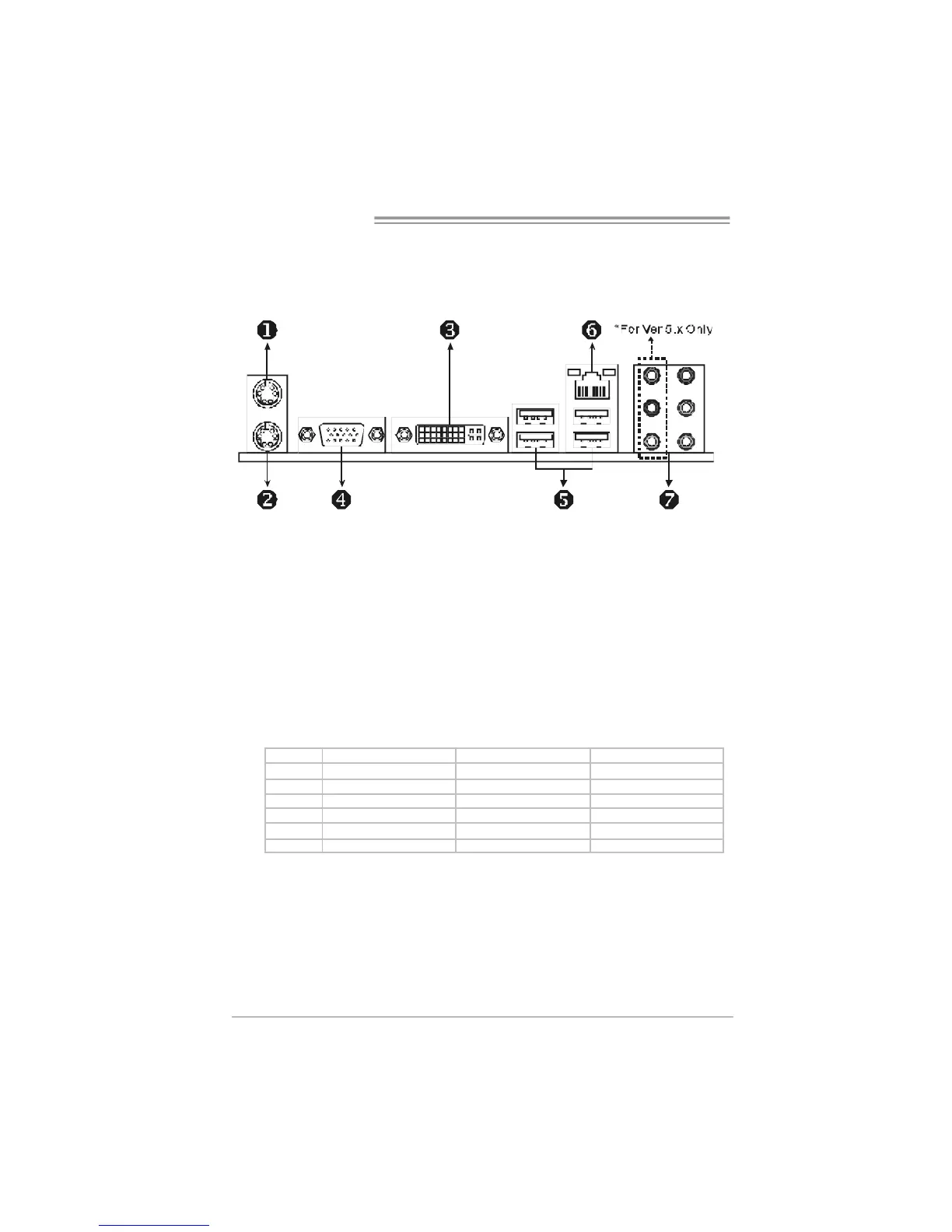

1.4 REAR PANEL CONNECTORS
X
PS/2 Mouse Port
Y
PS/2 Keyboard Port
Z DVI-D VGA Port
The Digital Visual Interface (DVI) is a video i nterf ace trans mitting digital video signals to
digital display devices s uch as flat panel LCDs or digital projectors. The DVI-D connector
allows digital signals trans mission onl y.
[ D-Sub VGA Port
Transmit anal og vi deo signals to computer monitor or any other dis play panels equipped
with D-Sub VGA input .
\ USB 2.0 Port x 4 ] RJ-45 LAN Port
^ Audio Jack x 6 (for Ver 5.x) / Audio Jack x 3 (for Ver 6.x)
Port 2-Channel 4-Channel 6-Channel/8-Channel
Blue Line-In Line-In Line-In
Green Line-Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In
Orange Center/ Subwoof er
Black Rear Speaker Out Rear Speaker O ut Rear Speaker Out
Grey Side Speaker O ut
