Motherboard Manual
12
CHAPTER 3: HEADERS & JUMPERS SETUP
3.1 H
OW TO SETUP JUMPERS

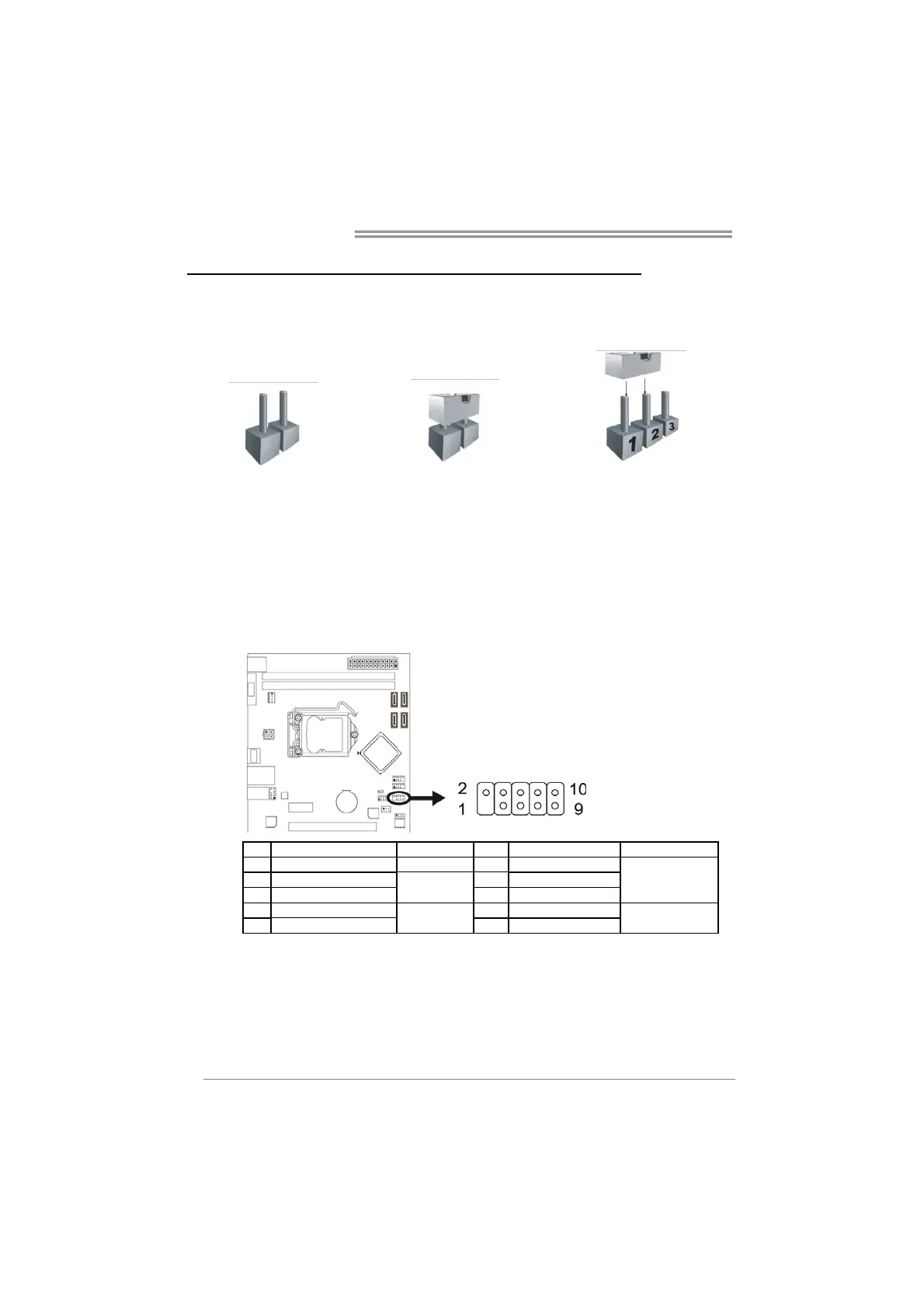

The illustration shows how to set up jumpers. When the jumper cap is placed on
pins, the jumper is “close”, if not, that means the jumper is “open”.
Pin opened Pin closed Pin1-2 closed
3.2 DETAIL SETTINGS
JPANEL1: Front Panel Header
This connector includes Power-on, Reset, HDD LED and Power LED
connections. It allows user to connect the PC case’s front panel switch
functions.
Pin Assignment Function Pin Assignment Function
1 N/A N/A 2 Power LED (+)
Power LED
3 HDD LED(+)
HDD LED
4 Power LED (+)
5 HDD LED(-) 6 Power LED (-)
7 Ground
Reset Button
8 Power Button
Power-On Button
9 Reset Control 10 Ground
