I945P-A7
13
PCI-Ex16: PCI-Express x16 Slot
- PCI-Express 1.0a compliant.
- Maximum theoretical realized bandwidth of 4GB/s
simultaneously per direction, for an aggregate of 8GB/s
totally.
PCI-Ex1_1/PCI-Ex1_2: PCI-Express x1 slots (Only for Rev 1.0)
- PCI-Express 1.0a compliant.
- Data transfer bandwidth up to 250MB/s per direction;
500MB/s in total.
- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data
pins.
- 2X bandwidth over the traditional PCI architecture.
PCI-EX: PCI-Extreme Slot
- PCI-Extreme slot is a special design for PCI-Express
interface graphic cards.
- PCI-Extreme slot is compliant with PCI-Express 1.0a
specification.
- PCI-Extreme slot is compatible with PCI-E x4 and PCI-E x1
expansion card.
- The bandwidth of data transfer is up to 1GB/s per direction,
and for an aggregate of 2GB/s in total.

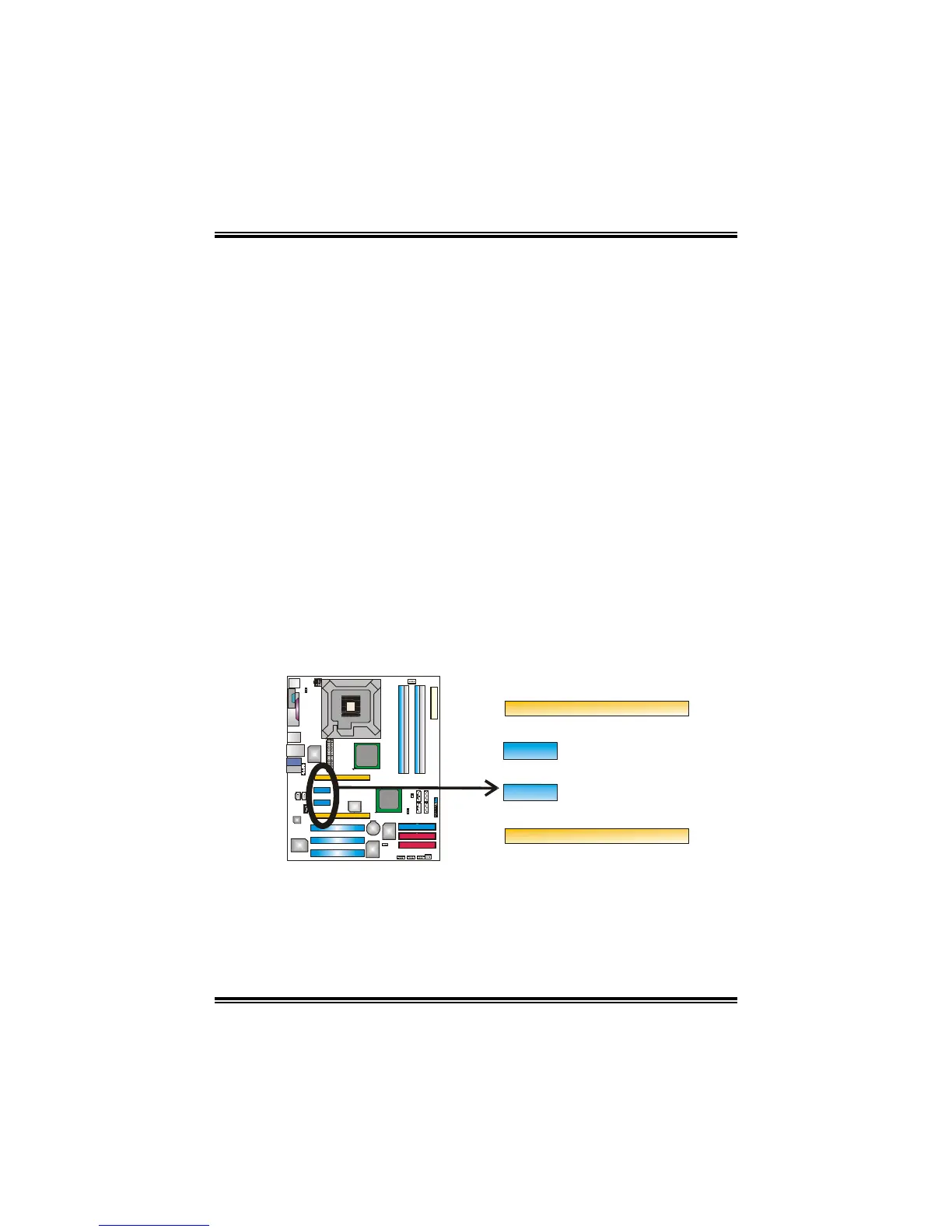

PCI-Ex16
PCI-Ex1_1 (for v1.0)
PCI-Ex1_2 (for v1.0)
PCI-EX
