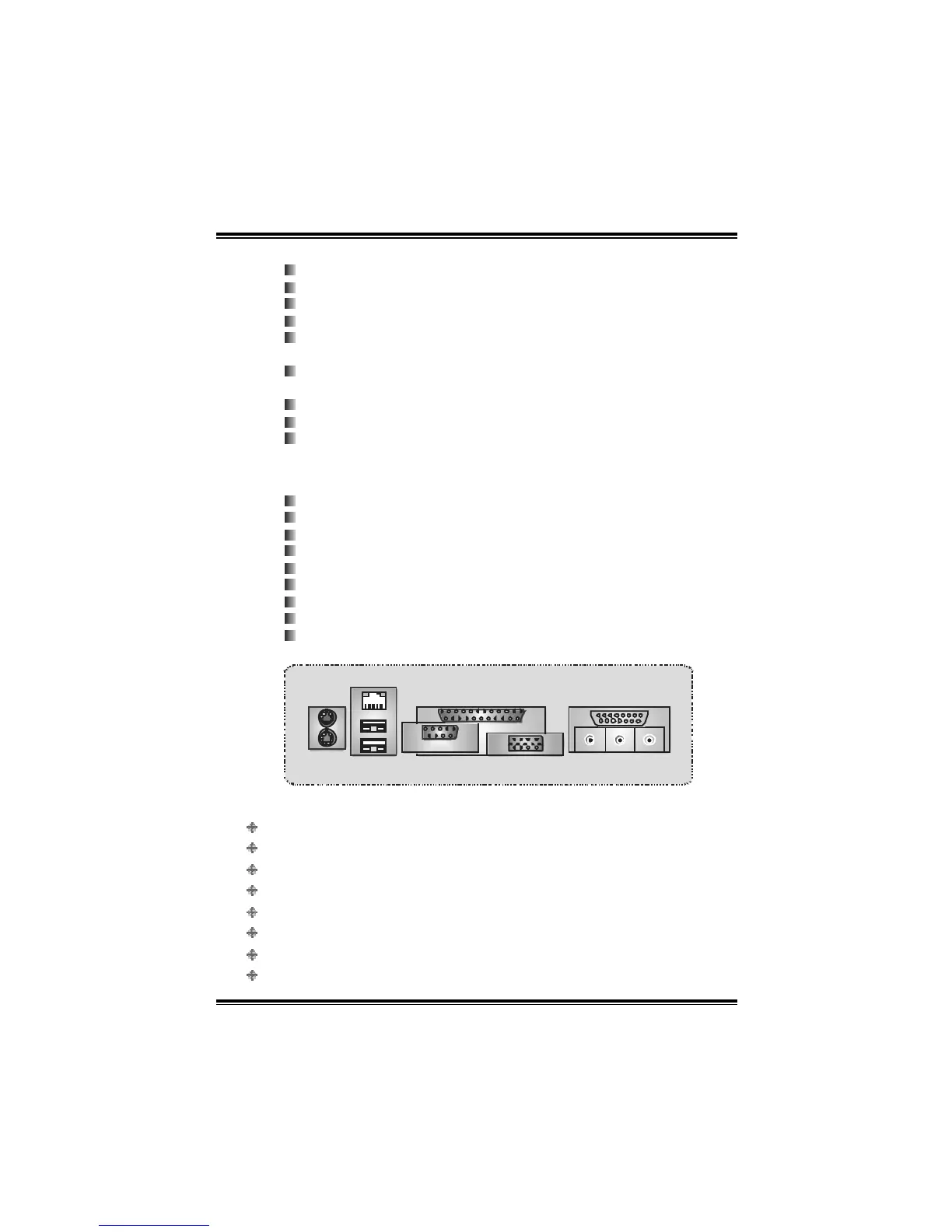

Biostar K8M800-M7A User Manual

K8M800-M7A
3
Internal On-board I/O Connectors and Headers
1 front panel header supports front panel facilities.
1 CD-in connector supports 1 CD-ROM audio-in device.
1 front audio header supports front panel audio function.
1 S/PDIF-Out connector supports digital audio-out function.
1 chassis open header supports PC case-opened warning
function.
1 FDD connector supports 2 Floppy drives with 360K, 720K,
1.2M, 1.44M and 2.88Mbytes.
2 IDE connectors support 4 hard disk devices.
2 Serial ATA connectors support 2 SATA devices.
2 USB headers support 4 USB 2.0 ports at front panel. (JUSB3
is optional)
Back Panel I/O Connectors
2 USB 2.0 ports.
1 VGA port.
1 Serial port.
1 Game port.
1 Printer port.
1 RJ-45 LAN jack.
1 PS/2 Mouse port.
1 PS/2 Keyboard port.
1 Audio port including 1 Speaker-out connector, 1 Line-in
connector, and 1 MIC-in connector.
Line InSpeaker Out
Mic In
LAN
USB x2
PS/ 2
Keyboard
PS/ 2
Mouse
Print er port
COM1
VGA1
GAME Port
1.2 PACKAGE LIST
HDD cable x1
User’s Manual x1
Fully Setup Driver CD x1
Rear I/O panel for ATX case x1
FDD cable x1 (optional)
USB 2.0 cable x1 (optional)
Serial ATA cable x1 (optional)
S/PDIF out cable x1 (optional)

Biostar K8M800-M7A Specifications

General

Brand	Biostar
Model	K8M800-M7A
Category	Motherboard
Language	English
