K8M800-M7A
6
2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.

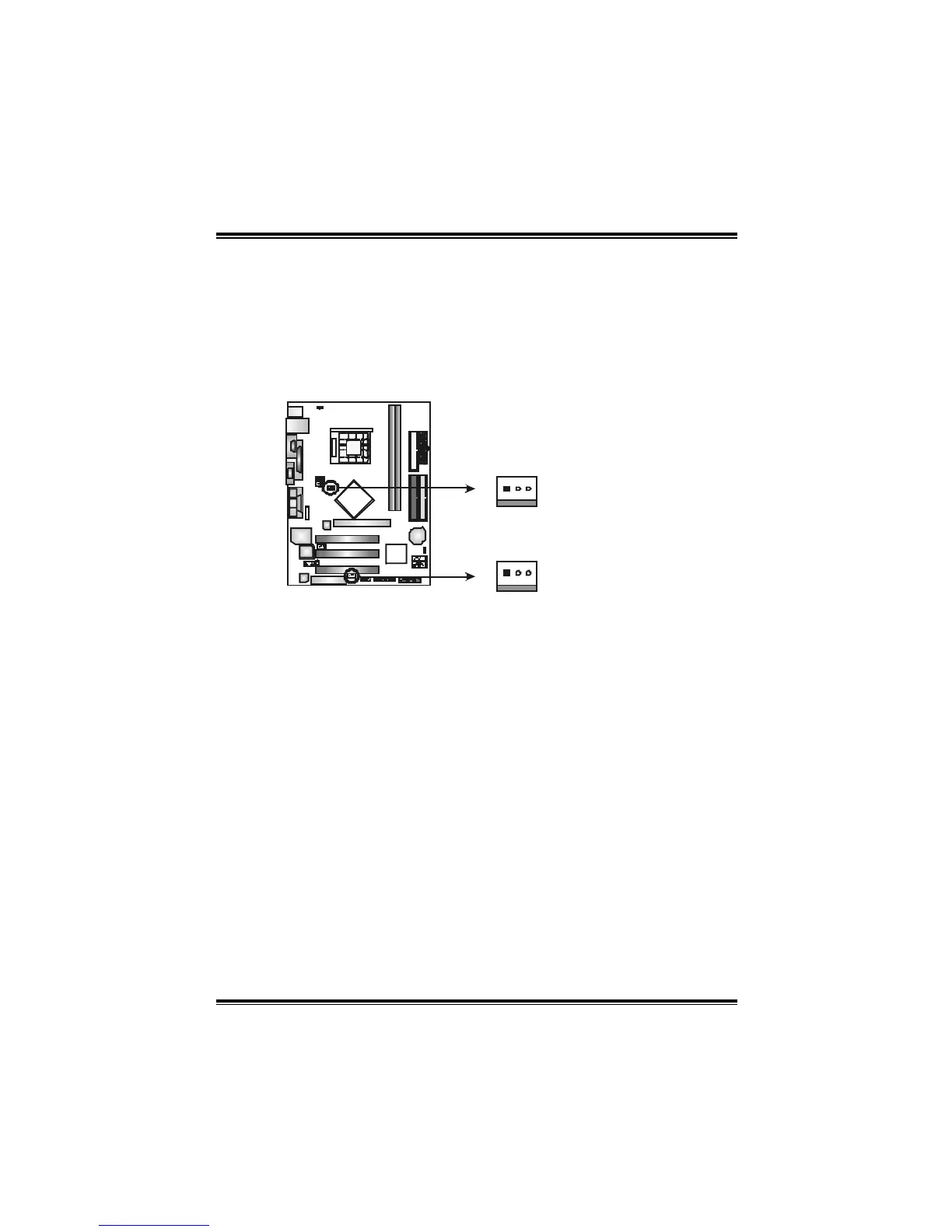

JCFAN1: CPU Fan Header
JSFAN1: System Fan Header
Pin
Assignment
1 Ground
2 +12V
JSFAN1
31
JCFAN1
31
3 FAN RPM rate
sense
Note:
The JCFAN1 and JSFAN1 support 3-pin head c onnector. When c onnecti ng with wires
onto connec tors, please note that the red wire is the positive and s hould be c onnected t o
pin#2, and the bl ack wire is Ground and s hould be connected t o GND.
