Motherboard Manual
10
2.4 CONNECTORS AND SLOTS

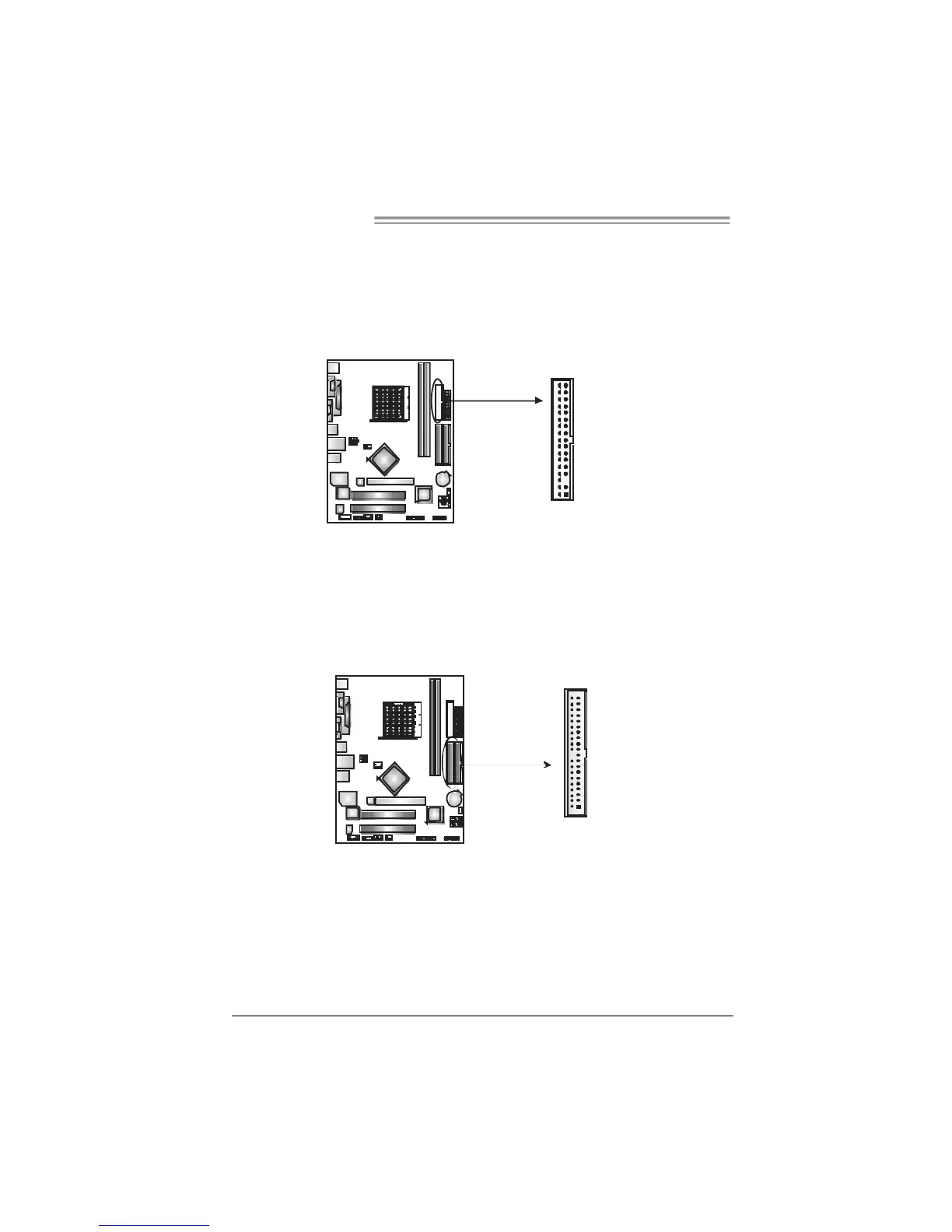

FDD1: Floppy Disk Connector
The motherboard prov ides a standard floppy disk connector that supports 360K,
720K, 1.2M, 1.44M and 2.88M floppy disk ty pes. This connector supports the
prov ided f loppy drive ribbon cables.
34 33
12
IDE1/IDE2: Hard Disk Connectors
The motherboard has a 32-bit Enhanced PCI IDE Controller that prov ides PIO
Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 f unctionality.
The IDE connectors can connect a master and a slav e driv e, so y ou can connect
up to four hard disk drives. The f irst hard drive should always be connected to
IDE1.
IDE2IDE1
21
3940
