K8M800 Micro AM2
7

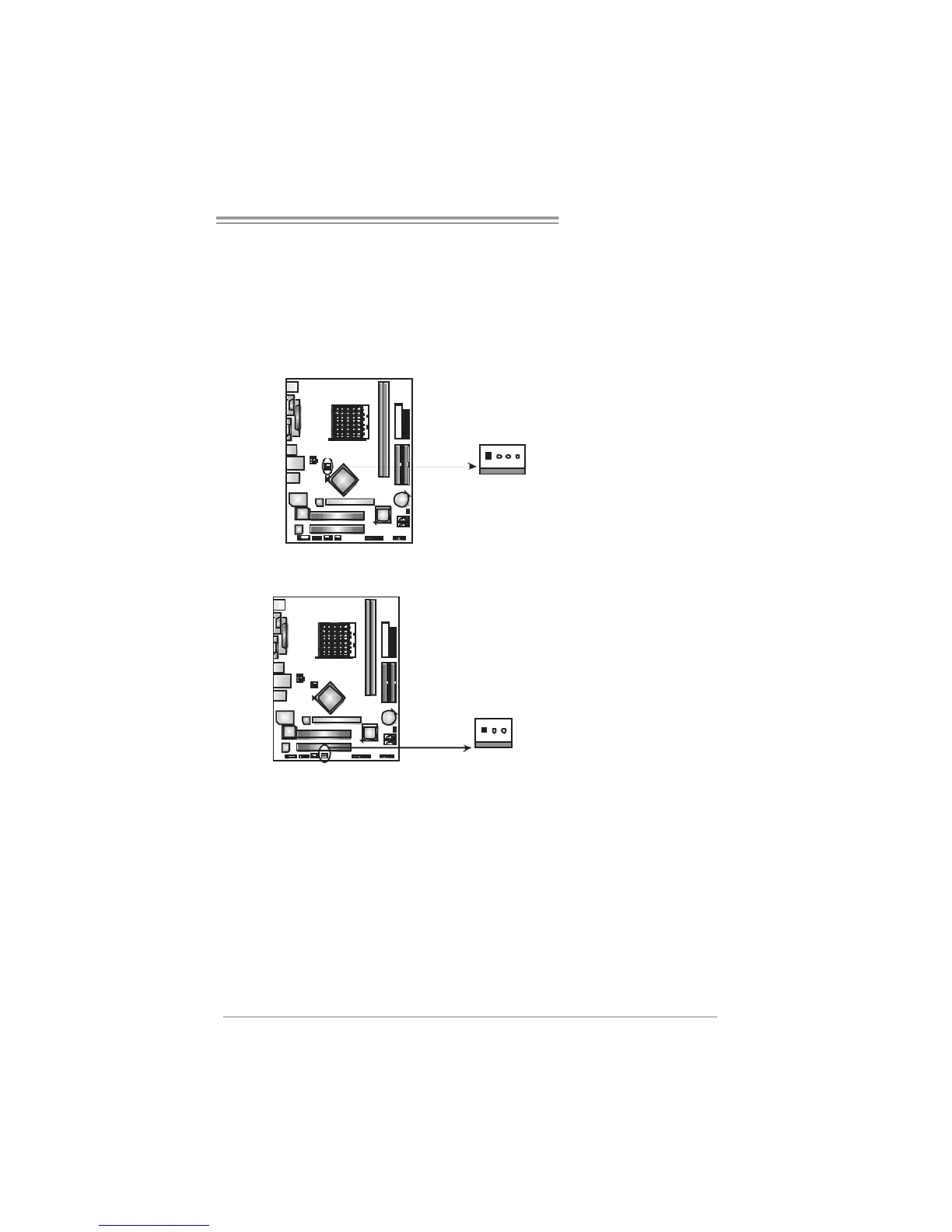

2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
JCFAN1: CPU Fan Header
Pin
Assignment
1 Ground
2 +12V
3 FAN RPM rate
sense
14
JCFAN1
4 Smart Fan
Control
JSFAN1: System Fan Header
Pin
Assignment
1 Ground
2 +12V
13
JSFAN1
3 FAN RPM rate
sense
Note:
The JCFAN1 a nd JSFAN1 s up port 4- pin and 3-pin h ead co nnec tors. Wh en c on necti ng
with wires ont o c onnect ors, ple ase no te that t he re d wire is t he positi ve an d s houl d b e
conn ected t o pi n#2, and the bl ac k wir e is Gro und a nd s ho uld b e c on nect ed to GND.
