Biostar MCP6P-M2 User Manual

Motherboard Manual
24

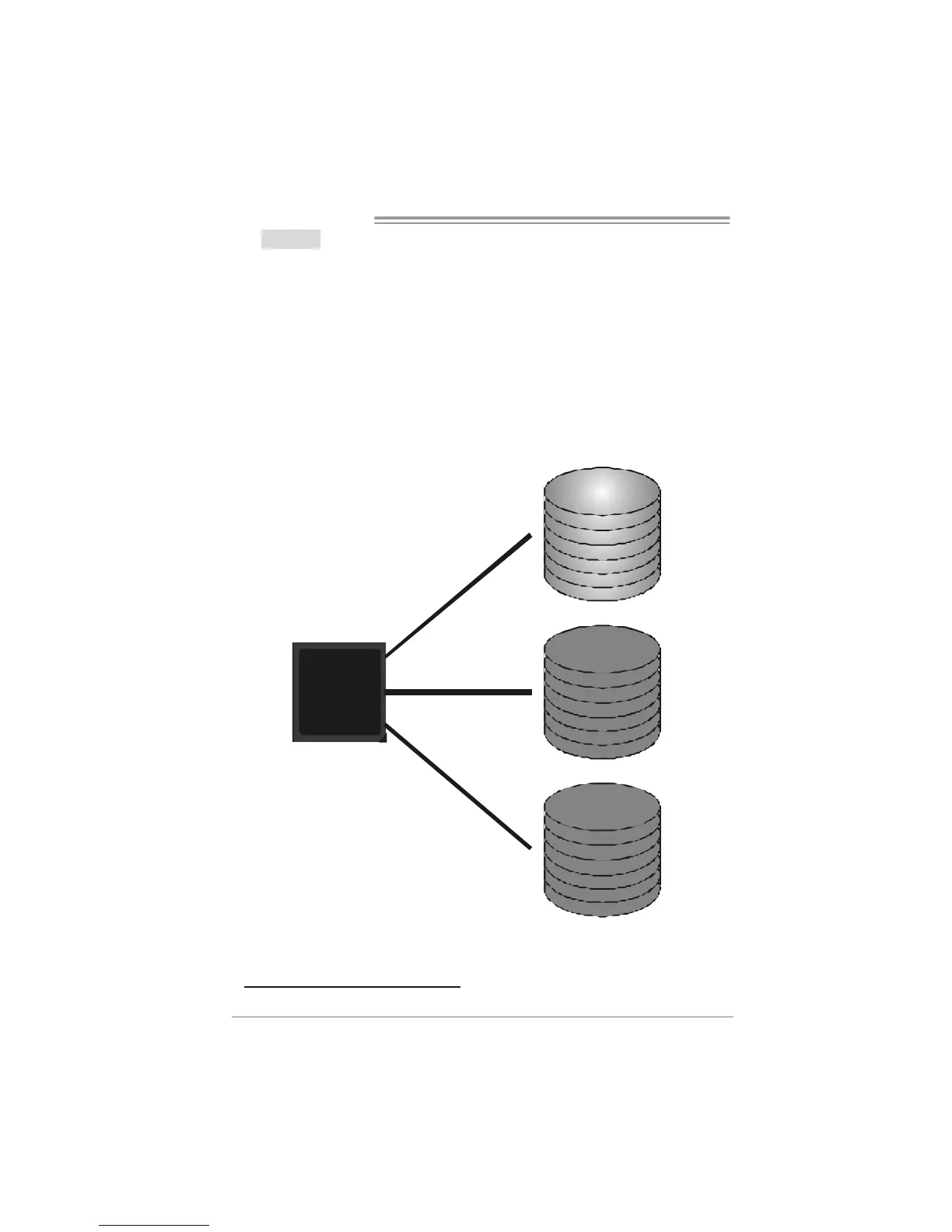

RAID 5:
RAID 5 stripes both data and parity information across three or more drives. It writes
data and parity blocks across all the drives in the array. Fault tolerance is maintained by
ensuring that the parity information for any given block of data is placed on a different
drive from those used to store the data itself.
Features and Benefits
 Drives: Minimum 3.
 Uses: RAID 5 is recommended for transaction processing and general
purpose service.
 Benefits: An ideal combination of good perf ormance, good fault tolerance,
and high capacity and storage efficiency.
 Drawbacks: Individual block data transfer rate same as a single disk. Write
performance can be CPU intensive.
 Fault Tolerance: Yes.
Disk 1
DATA 3
PARITY
DATA 7
DATA 1
DATA 9
PARITY
Disk 2
PA R I T Y
DATA 5
DATA 8
DATA 2
PA R I T Y
DATA 11
Disk 3
DATA 4
DATA 6
PA R I T Y
PA R I T Y
DATA 10
DATA 12
nForce
6100-430
※ For more detailed setup information, please refer to the Driver CD, or go to
http://www.nvidia.com/object/IO_28159.htm l to download the NVIDIA RAID User’s Guide.

Biostar MCP6P-M2 Specifications

General

Form Factor	Micro ATX
CPU Socket	AM2
Memory Type	DDR2
Maximum Memory	4GB
Storage Interface	SATA, IDE
SATA	4 x SATA 3Gb/s
IDE	1 x IDE
Audio Chipset	Realtek ALC662
Audio Channels	6-Channel
LAN Chipset	Realtek RTL8201CL
Max. LAN Speed	10/100Mbps
PS/2	1 x PS/2 Keyboard, 1 x PS/2 Mouse
CPU Type	AMD Athlon 64 X2 / Athlon 64 / Sempron
Memory Slots	2
Expansion Slots	1 x PCI-E x16 1 x PCI-E x1 2 x PCI
USB Ports	4 x USB 2.0
