Biostar N68S3B Setup Manual

Motherboard Manual
14

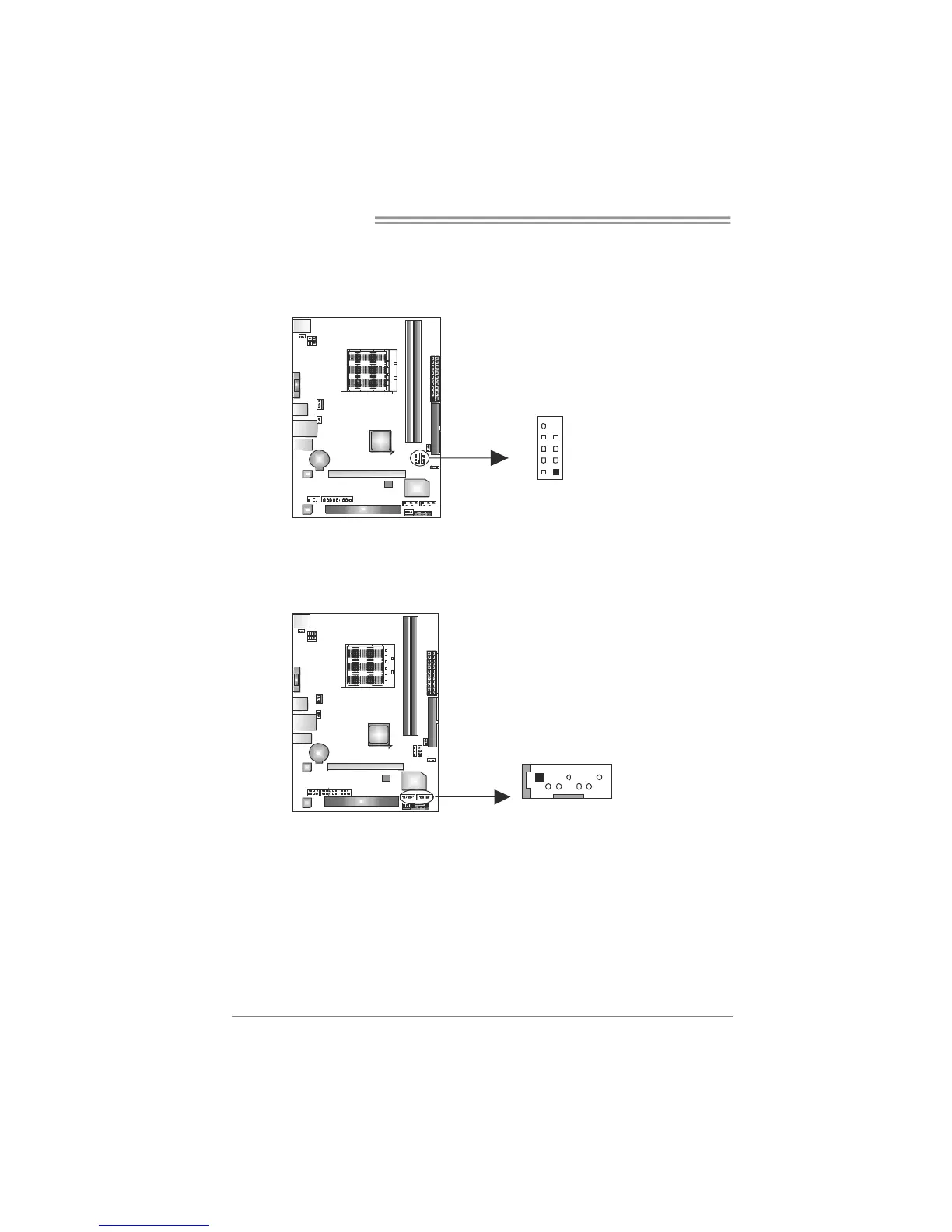

JUSB2/JUSB3: Headers for USB 2.0 Ports at Front Panel
These headers allow user to connect additional USB cable on the PC front panel,
and also can be connected with internal USB devices, like USB card reader.
Pin
Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 NC
21
10 9
JUSB2 JUSB3
10 Key
SATA1/SATA2: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 2 channels SATA interface,
it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.
Pin
Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
1
4
7
SATA2 SATA1
7 Ground

Biostar N68S3B Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Supported memory clock speeds	800, 1066, 1333 MHz
Processor socket	Socket AM3
Processor manufacturer	AMD
Maximum number of SMP processors	1
Power fan connector	Yes
USB 2.0 ports quantity	4
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Motherboard chipset	Nvidia MCP68S
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows XP/Vista/7
Graphics card	GeForce 7025
Maximum graphics card memory	512 MB
Parallel processing technology support	Not supported
RAID levels	0, 1
LAN controller	Realtek RTL8201CL
Networking features	Fast Ethernet
BIOS type	-

Weight and Dimensions

Depth	170 mm
Width	235 mm
