Biostar N68S3B Setup Manual

N68S3B
3
SPEC
CMOS clear header x1 Restore CMOS data to factory default
USB connector x2 Each connector supports 2 front panel USB ports
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Printer Port Connector x1 Each connector supports 1 Printer port
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
VGA port x1
LAN port x1
USB Port x4
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connect to D-SUB monitor
Connect to RJ-45 ethernet cable
Connect to USB devices
Provide Audio-In/Out and microphone connection
Board Size 170 mm(W) x 235 mm(L) uATX
Special
Features
RAID 0 / 1
OS Support Windows XP / Vista / 7
Biostar reserves the right to add or remove support
for any OS With or without notice.
1.4 R

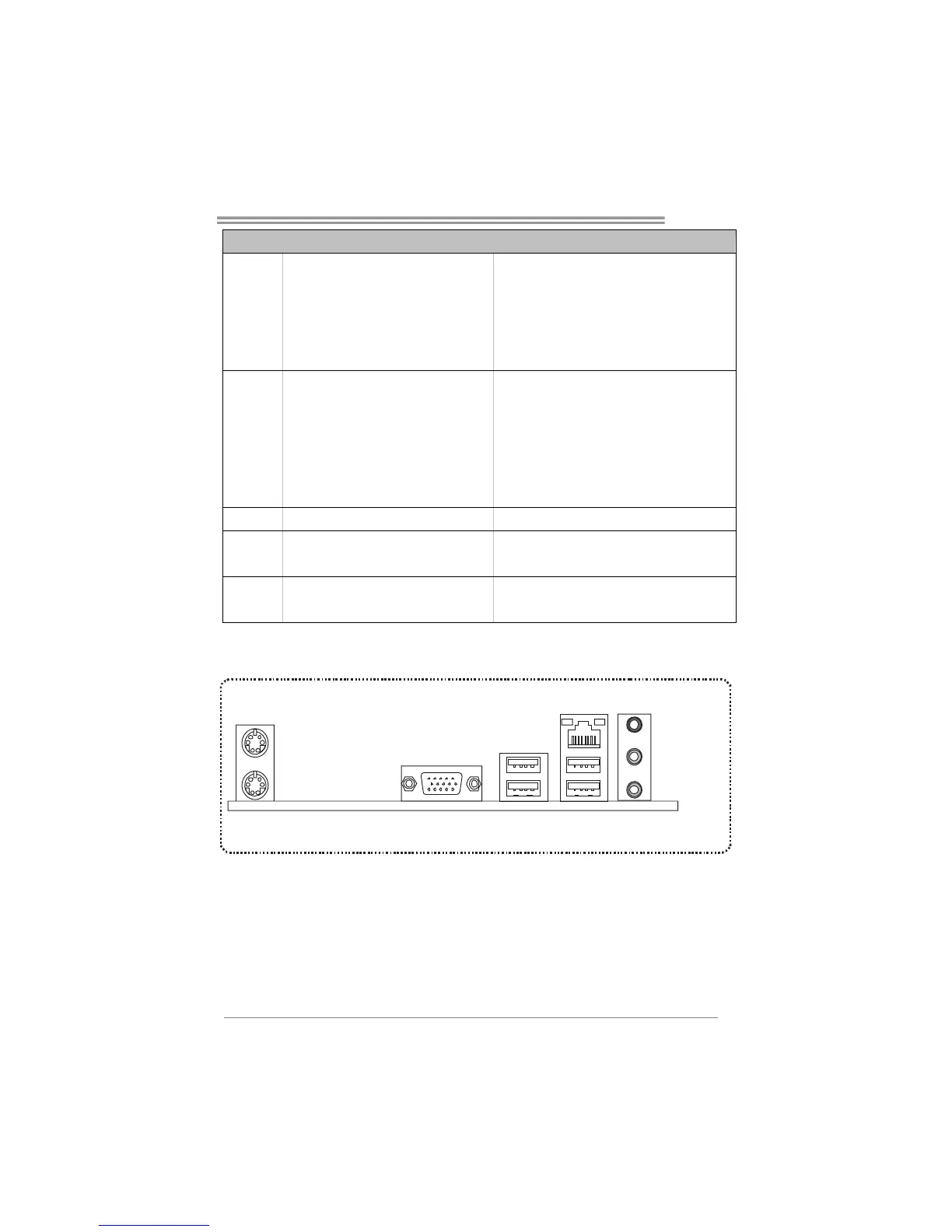

EAR PANEL CONNECTORS
PS/2
Mouse
PS/ 2
Keyboard
USBX2USBX2
LAN
VGA
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center

Biostar N68S3B Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Supported memory clock speeds	800, 1066, 1333 MHz
Processor socket	Socket AM3
Processor manufacturer	AMD
Maximum number of SMP processors	1
Power fan connector	Yes
USB 2.0 ports quantity	4
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Motherboard chipset	Nvidia MCP68S
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows XP/Vista/7
Graphics card	GeForce 7025
Maximum graphics card memory	512 MB
Parallel processing technology support	Not supported
RAID levels	0, 1
LAN controller	Realtek RTL8201CL
Networking features	Fast Ethernet
BIOS type	-

Weight and Dimensions

Depth	170 mm
Width	235 mm
