Biostar N68S3B Setup Manual

Motherboard Manual
16

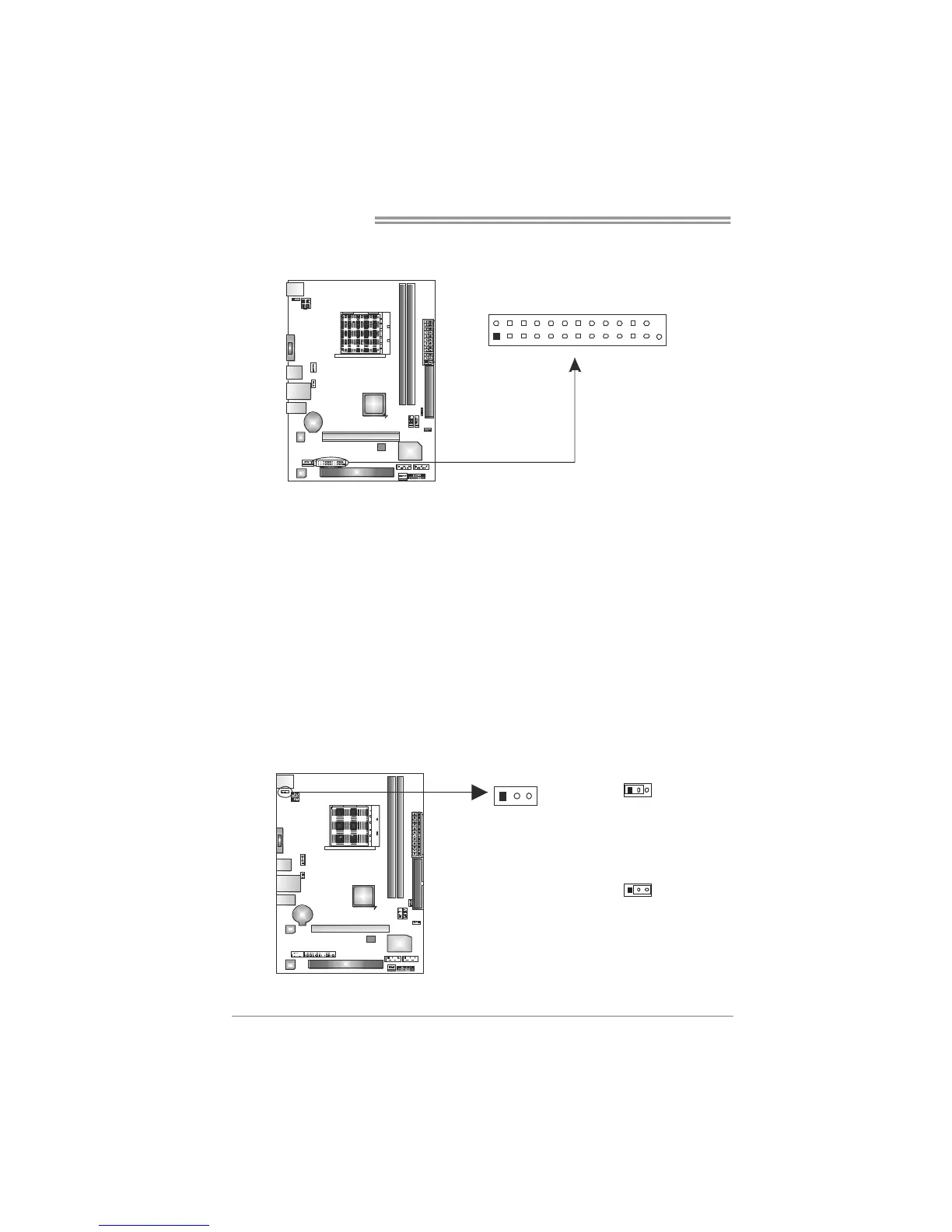

JPRNT: Printer Port Connector
This header allows you to connect printer port on the PC.
125
2
26
Pin Assignment Pin Assignment
1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground
4 -Error 17 Data 7
5 Data 1 18 Ground
6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy
9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground
12 Ground 25 SCLT
13 Data 5 26 Key
JKB_PWR: Power Source Header for PS/2 Keyboard and Mouse
31
Pin 1-2 close
+5V for PS/2 keyboard and
mouse.
31
31
Pin 2-3 close
+5V STB for PS/2 keyboard
and mouse.

Biostar N68S3B Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Supported memory clock speeds	800, 1066, 1333 MHz
Processor socket	Socket AM3
Processor manufacturer	AMD
Maximum number of SMP processors	1
Power fan connector	Yes
USB 2.0 ports quantity	4
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Motherboard chipset	Nvidia MCP68S
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows XP/Vista/7
Graphics card	GeForce 7025
Maximum graphics card memory	512 MB
Parallel processing technology support	Not supported
RAID levels	0, 1
LAN controller	Realtek RTL8201CL
Networking features	Fast Ethernet
BIOS type	-

Weight and Dimensions

Depth	170 mm
Width	235 mm
