Motherboard Manual
6

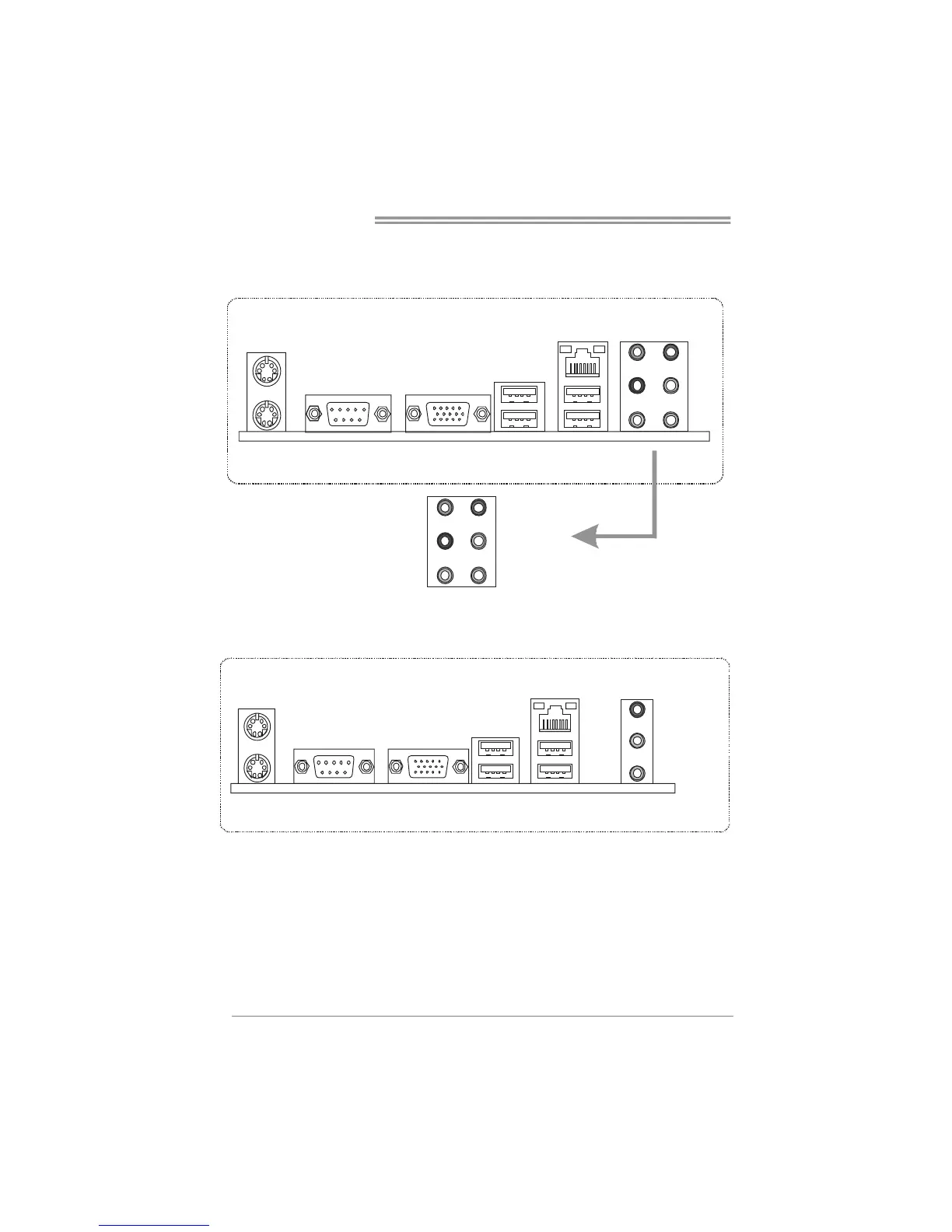

1.4 REAR PANEL CONNECTORS (FOR VER 5.X)
PS/2
Mouse
PS/2
Keyboard
USBX2USBX2
LAN
COM1 VGA
Line In
Line Out
Mic In
Center
Rear
Side
AUDIO JACK
1.5 REAR PANEL CONNECTORS (FOR VER 6.X)
PS/ 2
Mouse
PS/2
Keyboard
USBX2USB X2
LAN
COM1 VGA
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
Since the audio chip supports High Definition Audio Specification, the function of each audio
jack can be defined by software. The input / output function of each audio jack listed above
represents the default setting. However, when connecting external microphone to the audio
port, please use the Line In (blue) and Mic In (Pink) audio jack.
