CHAPTER 2: HARDWARE INSTALLATION
2.1 Installing Central Processing Unit (CPU)

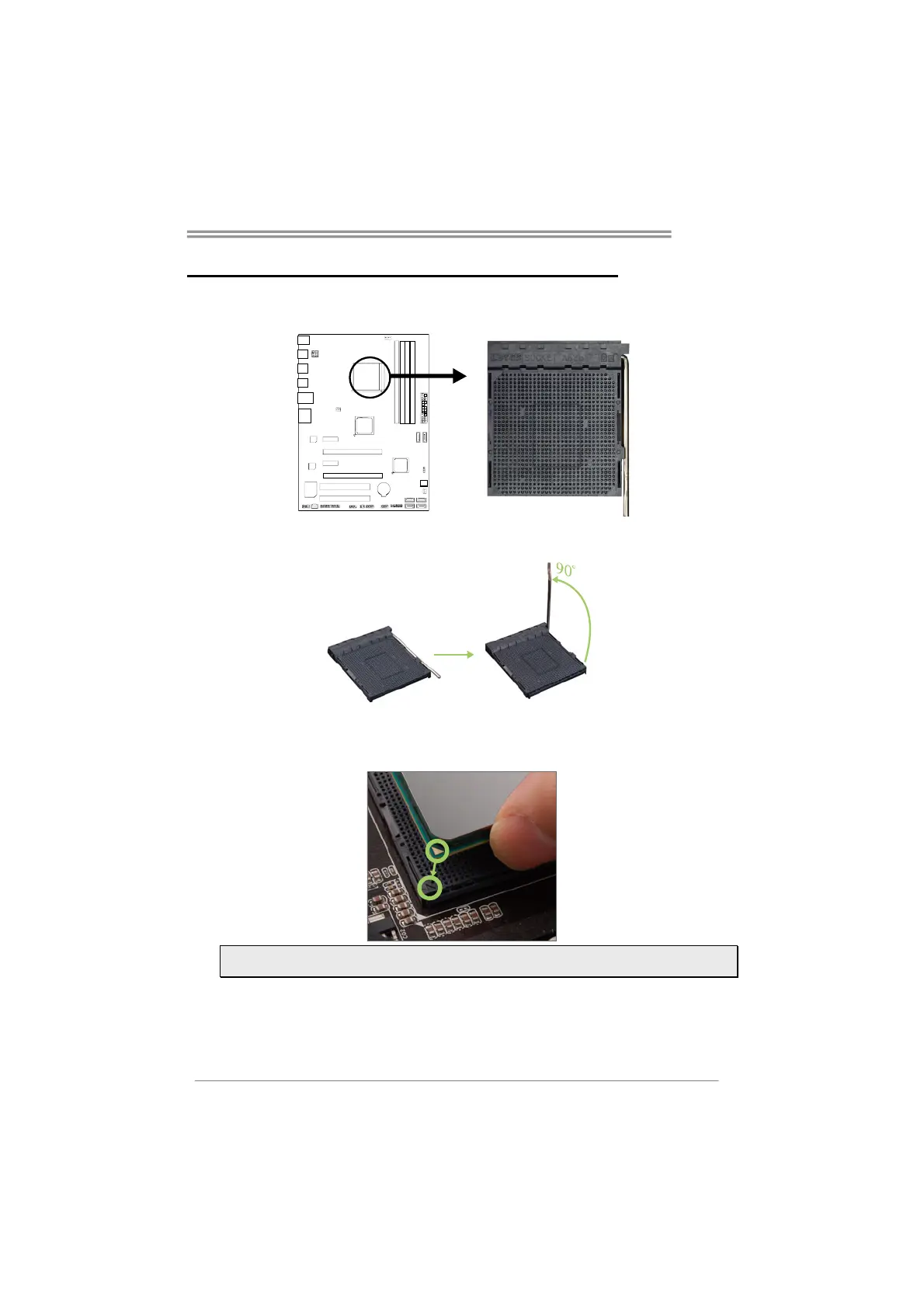

Step 1: Pull the lever toward direction A from the socket and then raise the lever
up to a 90-degree angle.
Step 2: Look for the white triangle on socket, and the gold triangle on CPU should
point towards this white triangle. The CPU will fit only in the correct
orientation.
Note: The CPU fits only in one correct orientation. Do not force the CPU into the socket to
prevent damaging the CPU.
