Motherboard Manual
6

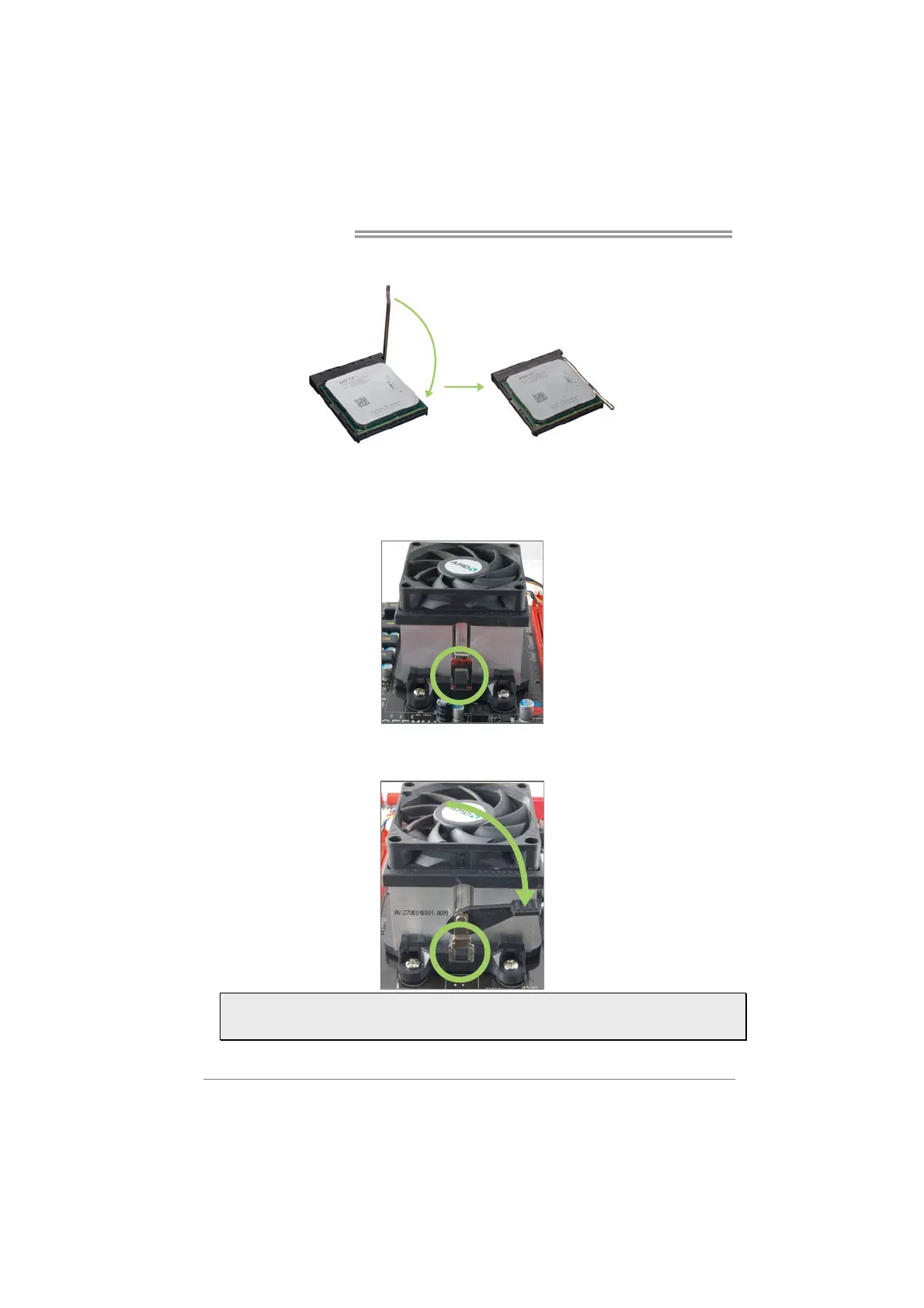

Step 3: Hold the CPU down firmly, and then close the lever toward direct B to
complete the installation.
2.2 Install a Heatsink
Step 1: Place the heatsink and fan assembly onto the retention frame. Match the
heatsink clip with the socket mounting-lug. Hook the spring clip to the
mounting-lug.
Step 2: On the other side, push the retention clip straight down to lock into the
plastic lug on the retention frame, and then press down the locker until it
stops.
Note1: Do not forget to connect the CPU fan connector.
Note2: For proper installation, please kindly refer to the installation manual of your CPU
heatsink.
