TForce 550
17

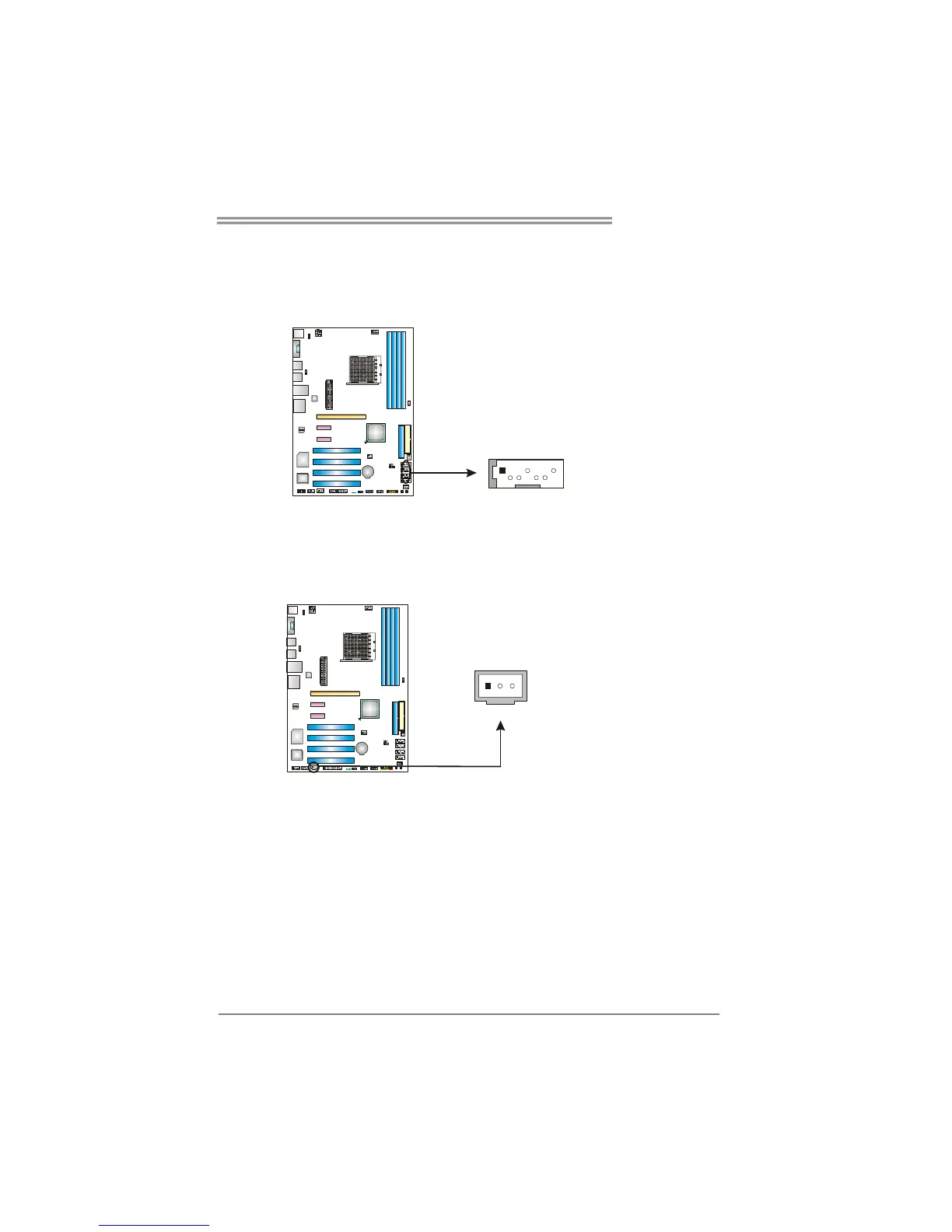

JSATA1~JSATA4: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 2 channels SATA interface,
it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.
Pin
Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
1
47
7 Ground
JSPDIF_OUT: Digital Audio out Connectors
This connector allows user to connect the PCI bracket SPDIF output header.
Pin
Assignment
1+5V
2 SPDIF_OUT
1
3
JSPDIF_OUT
3 Ground
