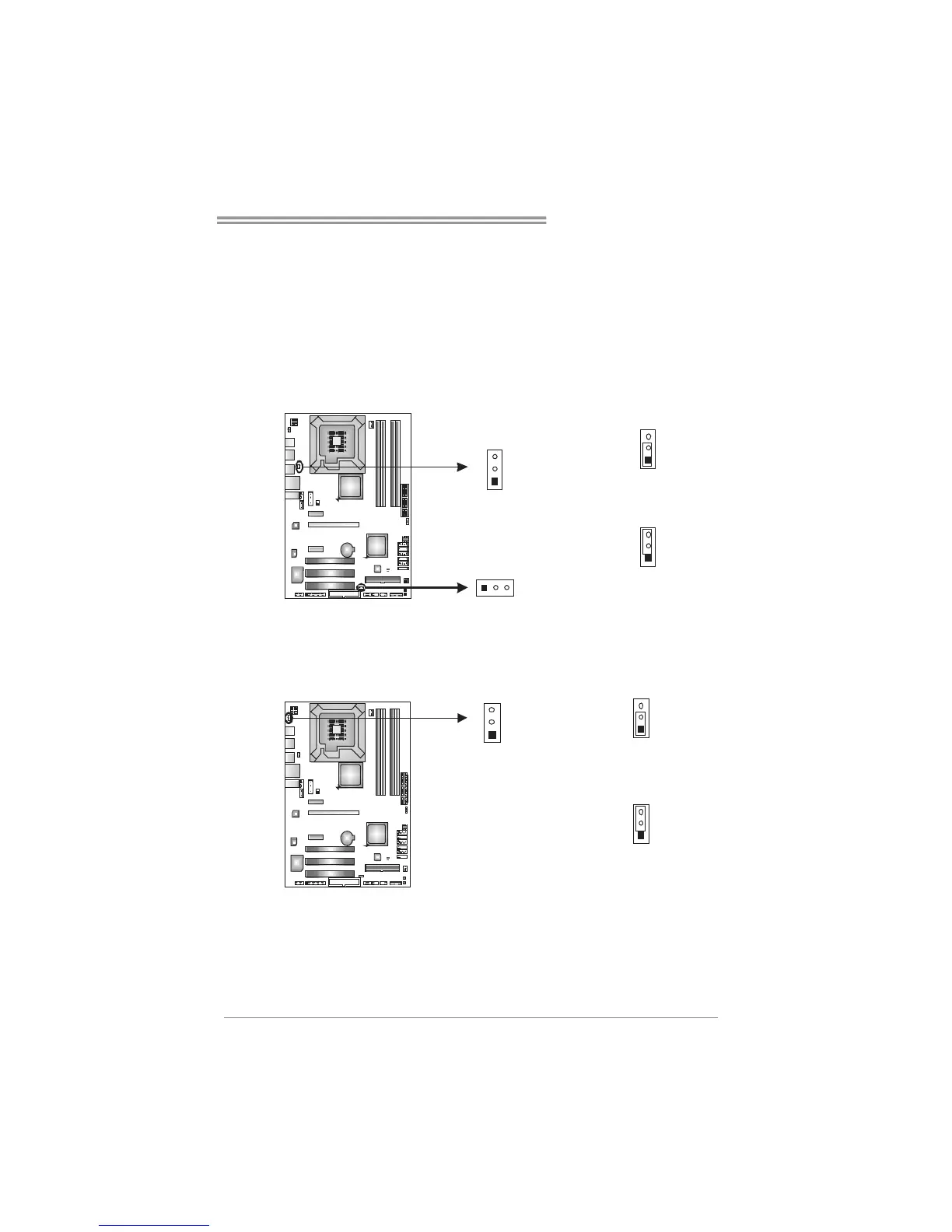

JUSBV1/JUSBV2: Power Source Headers for USB Ports
Pin 1-2 Close:
JUSBV1: +5V for USB ports at JUSB1/JUSB2/JRJ45USB1.
JUSBV2: +5V for USB ports at JUSB3/JUSB4/JUSB5.
Pin 2-3 Close:
JUSBV1: +5V STB for USB ports at JUSB1/JUSB2/ JRJ45USB1.
JUSBV2: +5V STB for USB ports at JUSB3/JUSB4/JUSB5.
1
3
Pin 1-2 close
13
1
3
JUSBV1
JUSBV2
1
3
Pin 2-3 close
JKBV1: Power Source Header for PS/2 Keyboard and Mouse
1
3
Pin 1-2 close
+5V for PS/2 keyboard and
mouse.
1
3
1
3
Pin 2-3 close
+5V STB for PS/2 keyboard
and mouse.
