Birch CD-108E - RS232 and WAND Emulation Pinouts

6
6
1
5
9
6
1
5
9

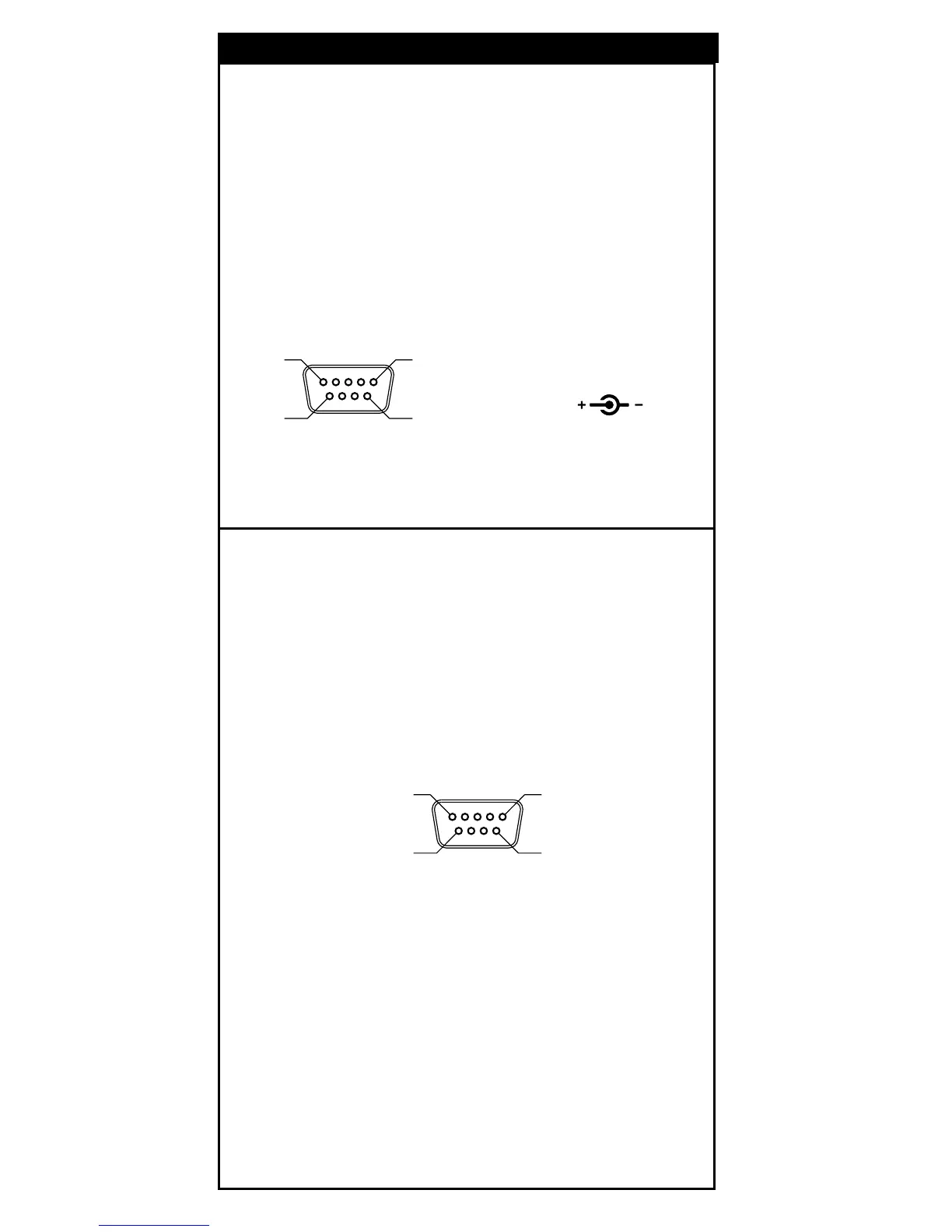

DB 9 Female Pin Assignment
2. RS-232 Output
DB 9 Female
Pin No. Function
2 TXD
3 RXD
5 GND
7 CTS
8 RTS
Power Lead Vcc +5V
DB 9 Female Pin Assignment Male DC Jack
+5V GND
3. WAND Emulation Output
DB 9 Female
Pin No. Function
2DATA
7 GND
9 Vcc (+5V)
Pin Assignments
