Birch CD-108E - Connector Pin Assignments; Keyboard Output Connector Pinouts

5

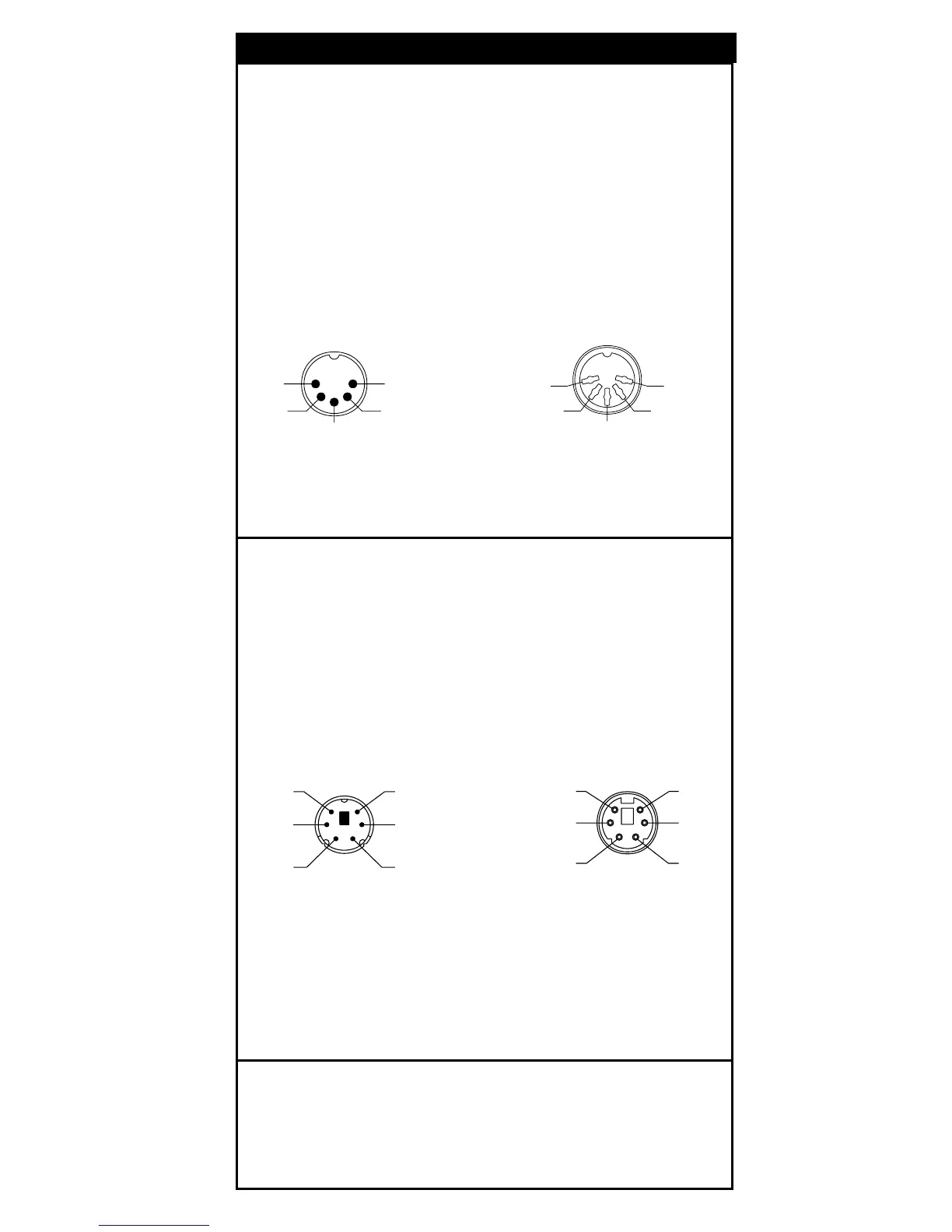

1. Keyboard Output
DIN 5 MALE DIN 5 FEMALE
Pin No. Function Pin No. Function
1 HOST CLK 1 KB CLK
2 HOST DATA 2 KB DATA
4 GND 4 GND
5 Vcc(+5V) 5 Vcc(+5V)
DIN 5 Male DIN 5 Female
Pin Assignment Pin Assignment
MiniDIN 6 MALE MiniDIN 6 FEMALE
Pin No. Function Pin No. Function
1 HOST DATA 1 KB DATA
3 GND 3 GND
4 Vcc 4 Vcc
5 HOST CLK 5 KB CLK
MiniDIN 6 Male MiniDIN 6 Female
Pin Assignment Pin Assignment
Pin Assignments
4
5
3
2
1
5
4
1
2
3
3
1
5
4
2
6
3
1
5
4
2
6
