BIRD THRULINE 4027F series User Manual

Thruline RF Power Meter, Model 4421
7

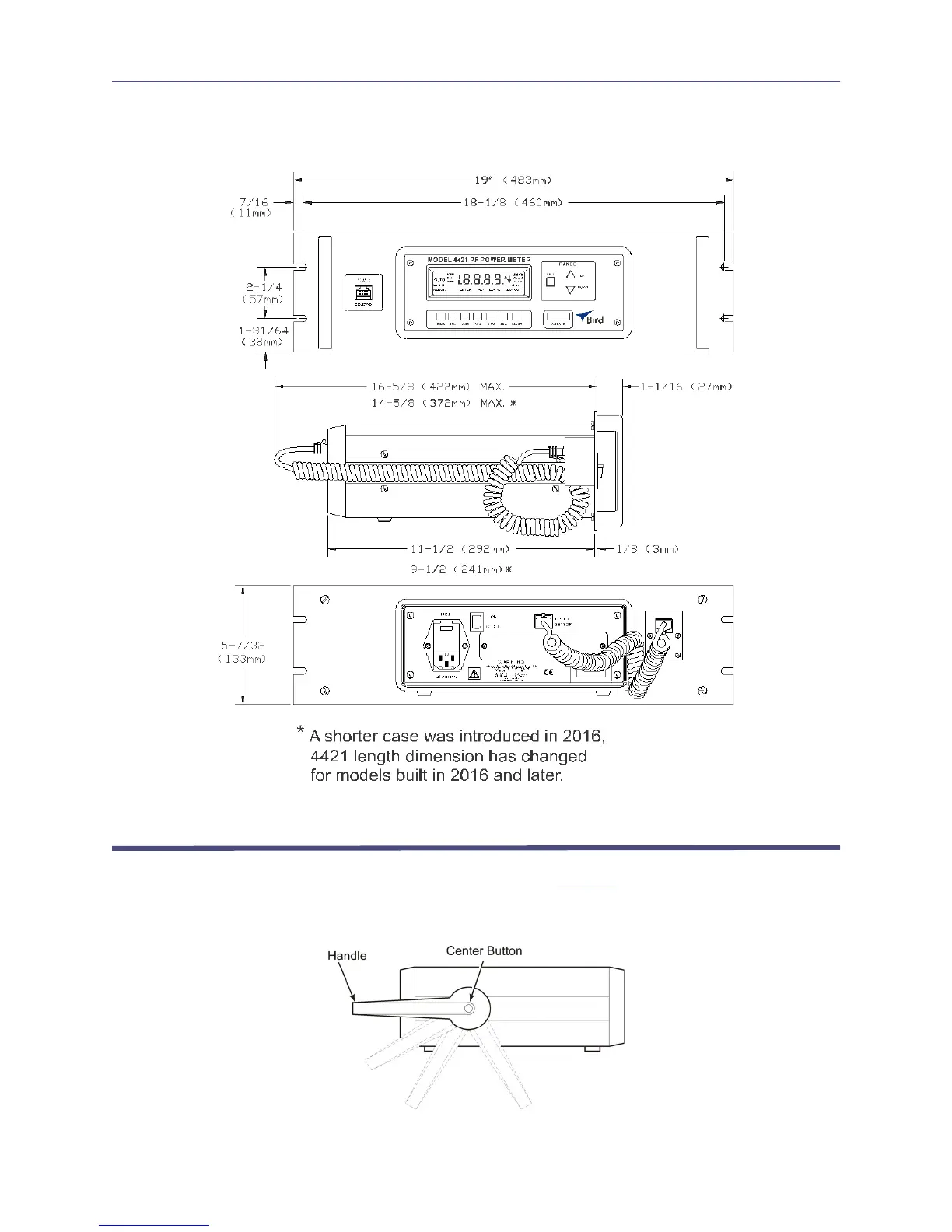

Figure 5 Panel Mounting Dimensions
Handle Operation
The handle on the Bird 4421 can be set to four different positions (see Figure 6 ). To adjust the handle, press the
center buttons on both sides. Releasing the buttons will lock the handle into position.
Figure 6 Handle Positions
