BIRO 3334SS - Page 36

33
Description
A16226A
H462-2
H462A
HHS010S
HHS070S
HN20S
LW15S
A609AAW-16
HN10S
LW20S
16296-2
150
224
226-28
241BL
259
340
241WH
A609AAW-16
SWITCH ASSEMBLY
Guard for switch toggle
Hex Head Screw, 10-32 x ⅜ SS
Hex Head Screw, ⅜-16 x 1 SS
Hex Nut, 10-32 SS
Hex Nut, 5/16-18 SS heavy
Lock Washer, 5/16 SS regular
Lock Washer, ⅜ SS
Switch bracket, SS
Conduit, ½”
Conduit connector, 180°
Washer SS, 1½ x 27/32
Wire, black, 12GA., CSA & UL
Wire, white, 12GA., CSA & UL
Anti-short bushing- ½”
Star lock washer
Item No.

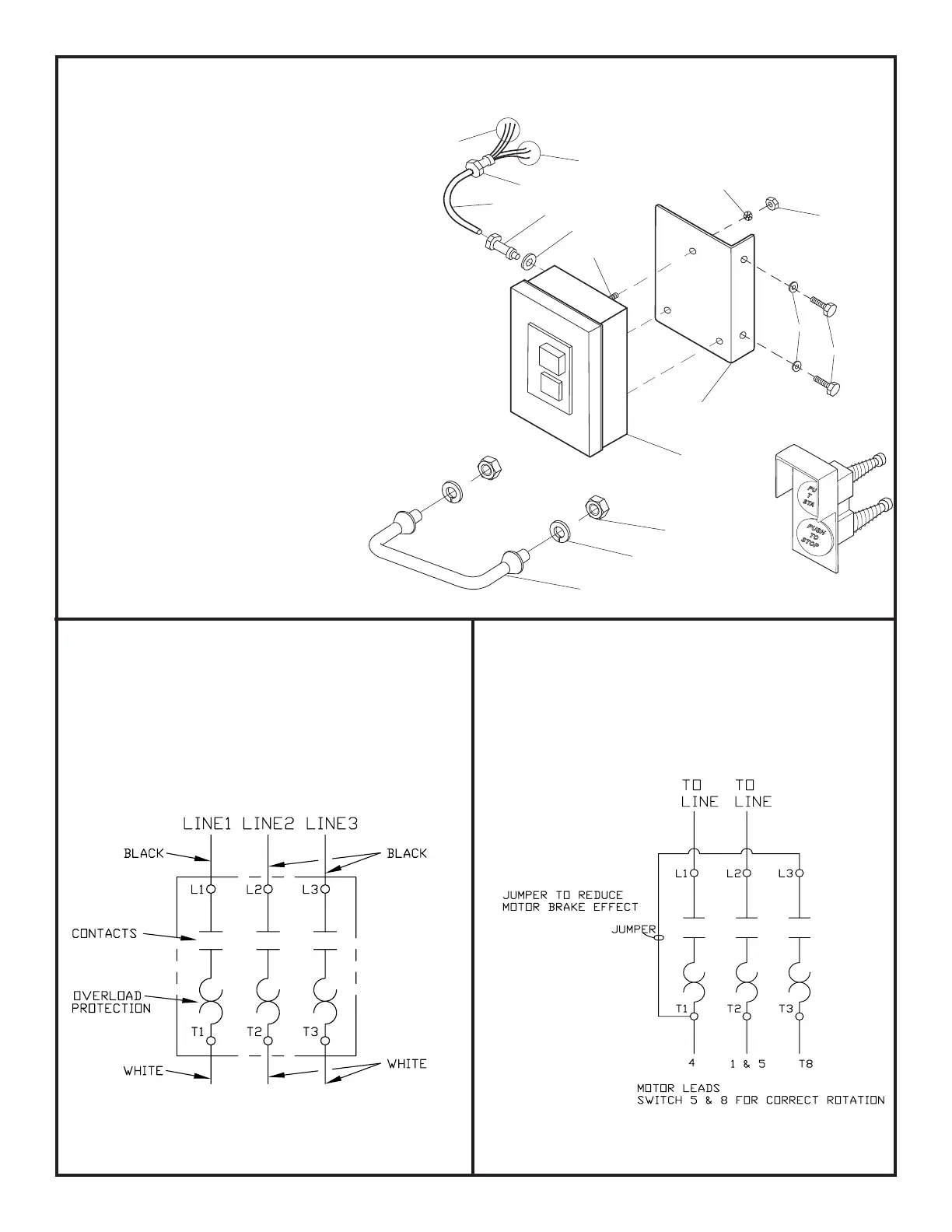

Wire Diagram for Baldor Motor
Spec. No. 35M388S508
230V/1 Phase/50Hz
Used with 609AAW Starter, A-B
609AAW
3 Phase
Green/red switch button assembly w/ springs
Switch assembly, 1& 3 ph, less heater coils
Guard assembly for switch toggle
609AAW
Manual switch, size 0, 1 & 3 ph
PUSH
TO
STOP
PU
T
STA
LW15S (2)
HN20S (2)
H462A
or
H462-2
226-28
224 & 259
150
224 & 259
241WH
241BL
HHS010S (3)
HN10S (3)
340 (3)
609AAW
16296-2
LW20S
HHS070S
A16226A
