Safety Devices
The Food Forming Machine is equipped with the following protection and safety devices:
• Safety micromagnet on the hopper;
• Plastic cover servo-assisted by a micromagnet;
• Protection and front cover of the removable parts;
• Handle of the paddle optimized to avoid crushing and use of keys or particular tools;
• Starting of the machine through reverser for servo-assisted manual or automatic
control;
• Emergency button
• Materials in conformity with the food hygienic regulations and fit to guarantee the
good resistance to oxidation.

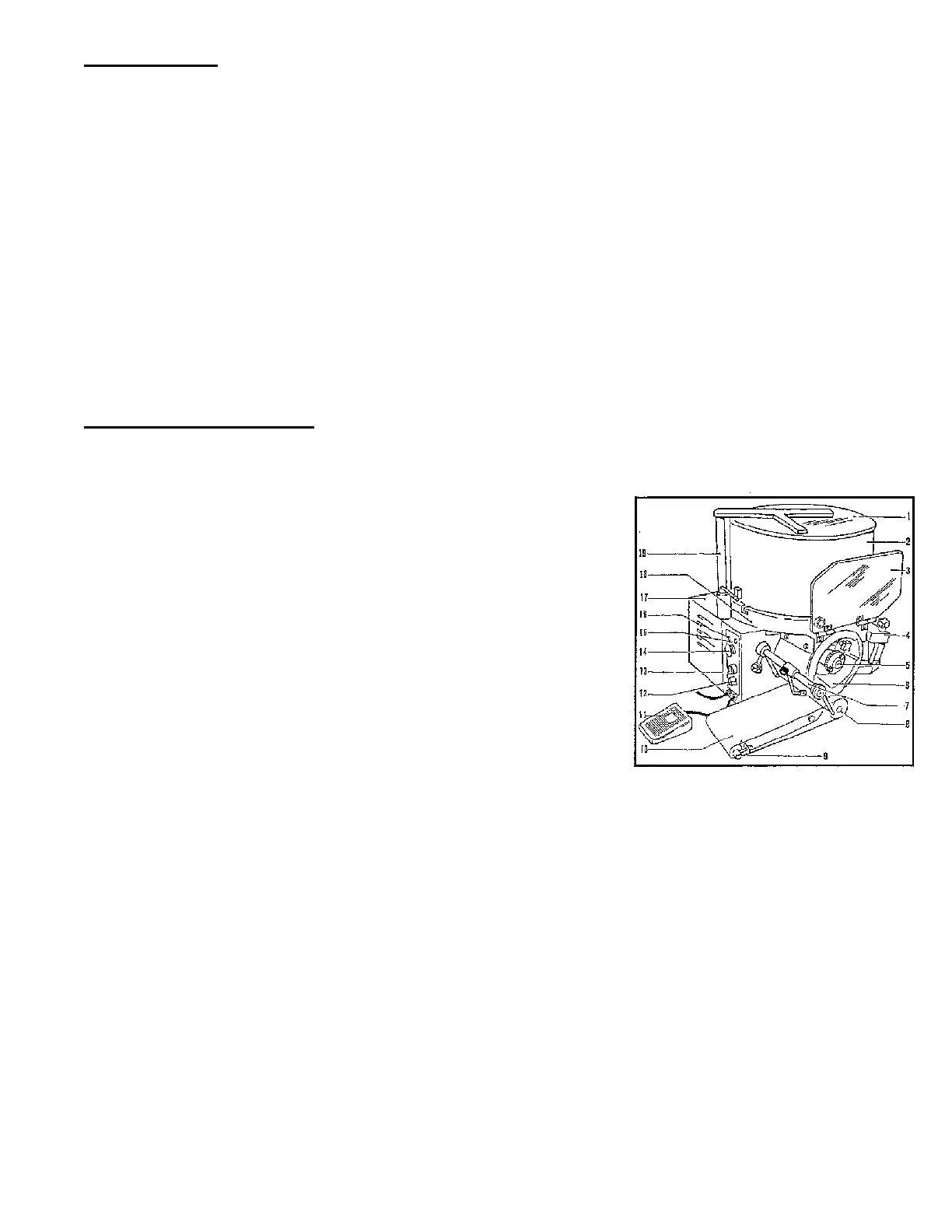

Components Description
CONTENTS
1. Cover
2. Hopper
3. Protection
4. Papering attachment
5. Drum stop ring nut
6. Drum
7. Scraper
8. Leading roll
9. Led roll
10. Conveyor belt
11. Footswitch
12. Speed variator for the mod. with current continuous
13. Manual/automatic switch
14. Stop button
15. Feeding signal light
16. Stop signal light
17. Transmission protection crankcase
18. Base
19. Cover shaft
