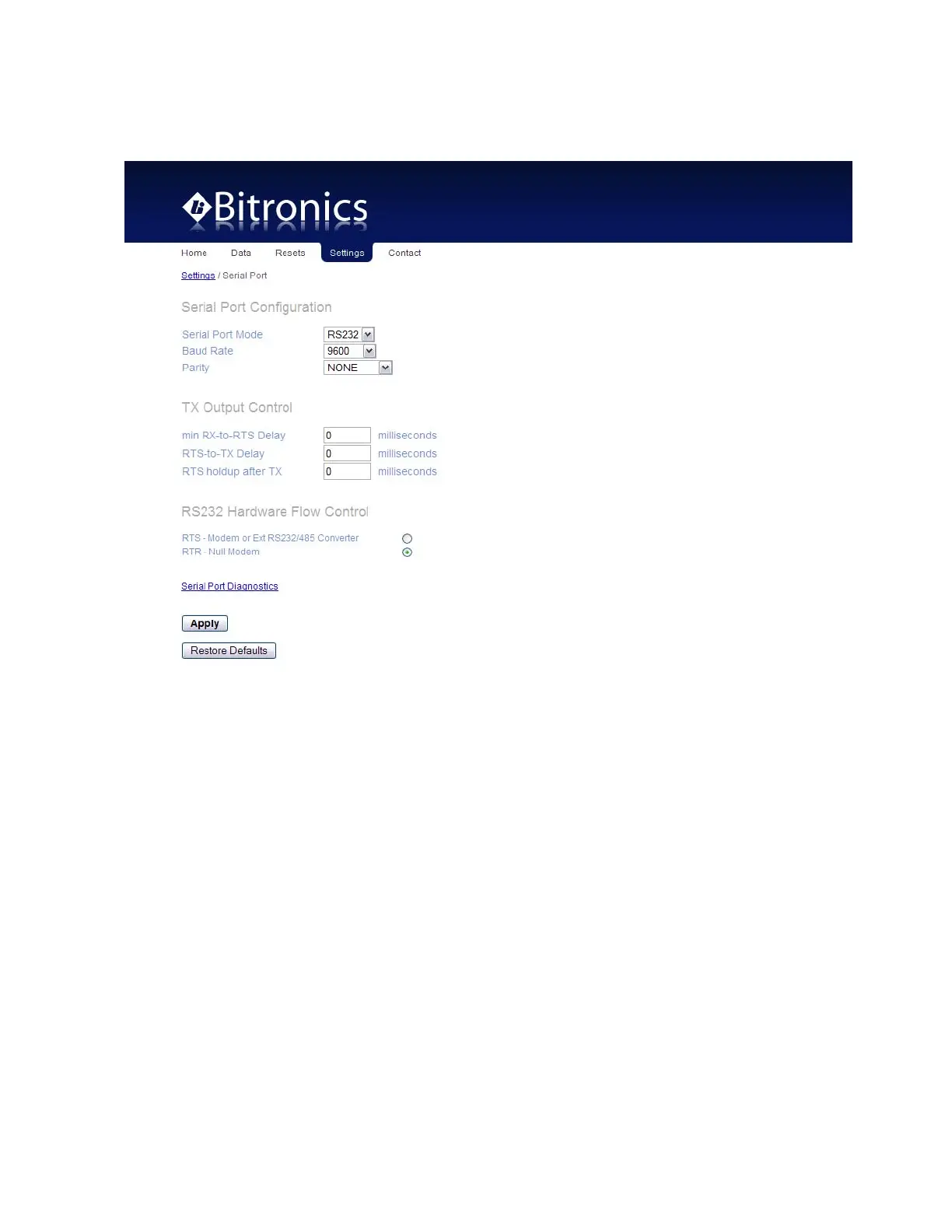

Serial Port (if option ordered):
Protocol Selection (if Option ordered):
First select between Modbus or DNP3. You will then select Optimal Resolution
(default) or Primary Units. Next you will choose a session. Under Type, there will be
4 different selections for Modbus and 3 for DNP3. Under Modbus the options are
Disabled, TCP, ASCII, or RTU. For DNP3 the selections are Disabled, Serial, TCP, or
UDP. Under DNP3, clicking on the Advanced button reveals more advanced functions
that may or may not need to be changed. Clicking on the Basic button hides the
advanced functions. A detailed description of the setup parameters for Modbus and
DNP3 can be found in the Appendix of the respective protocol manuals.
There are both fixed and configurable register/point lists. Please refer to the
appropriate protocol manual for more information regarding how to view or edit the
register/point list.
