ML0038 September 27, 2017 - 68 - Copyright 2017 Bitronics, LLC
APPENDIX
A1 CT/VT Connection Diagrams

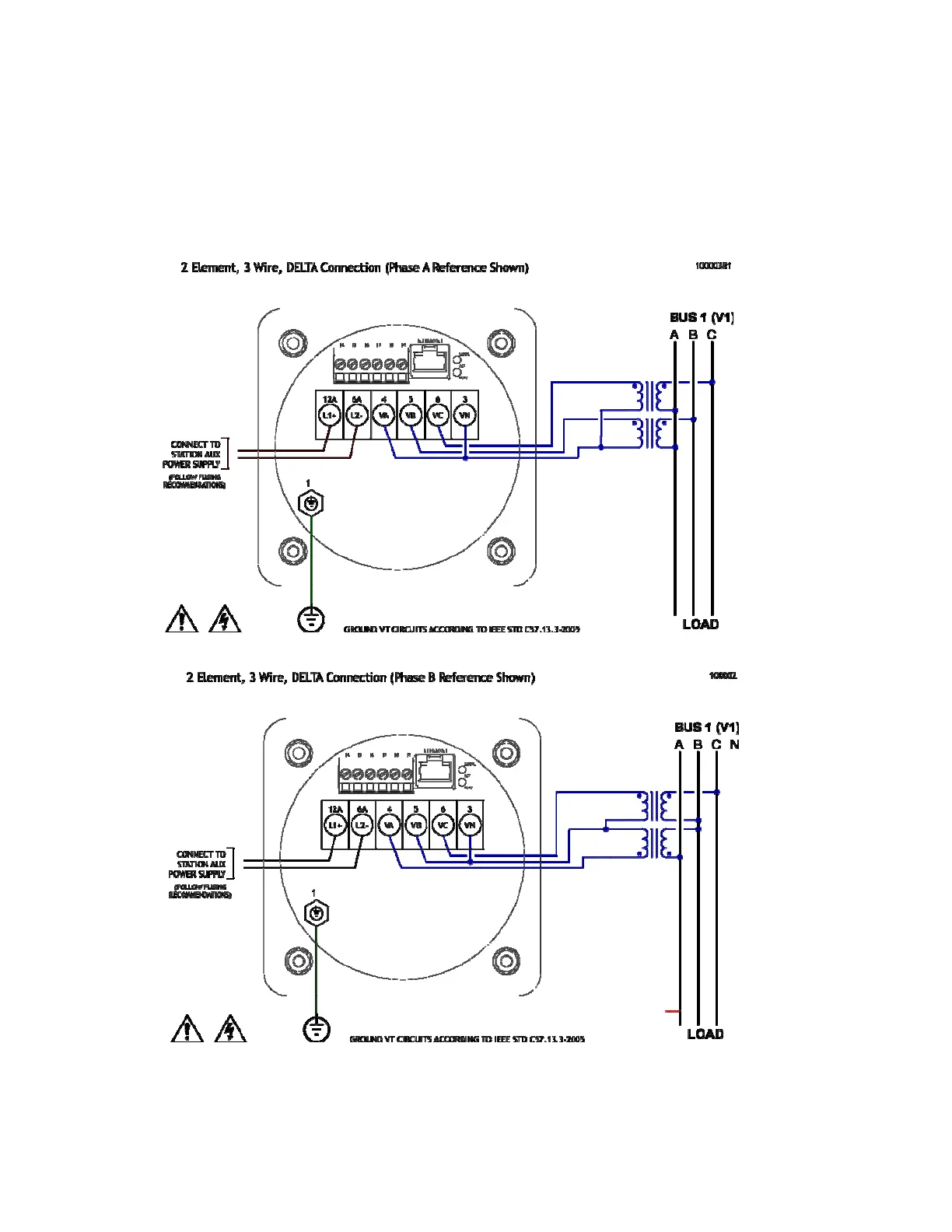

Figure 11 – Voltage Signal Connections – M350 V3
