BIXOLON SRP-332II User Manual

SRP-330II/332II
Ver. 2.00
- 14 -

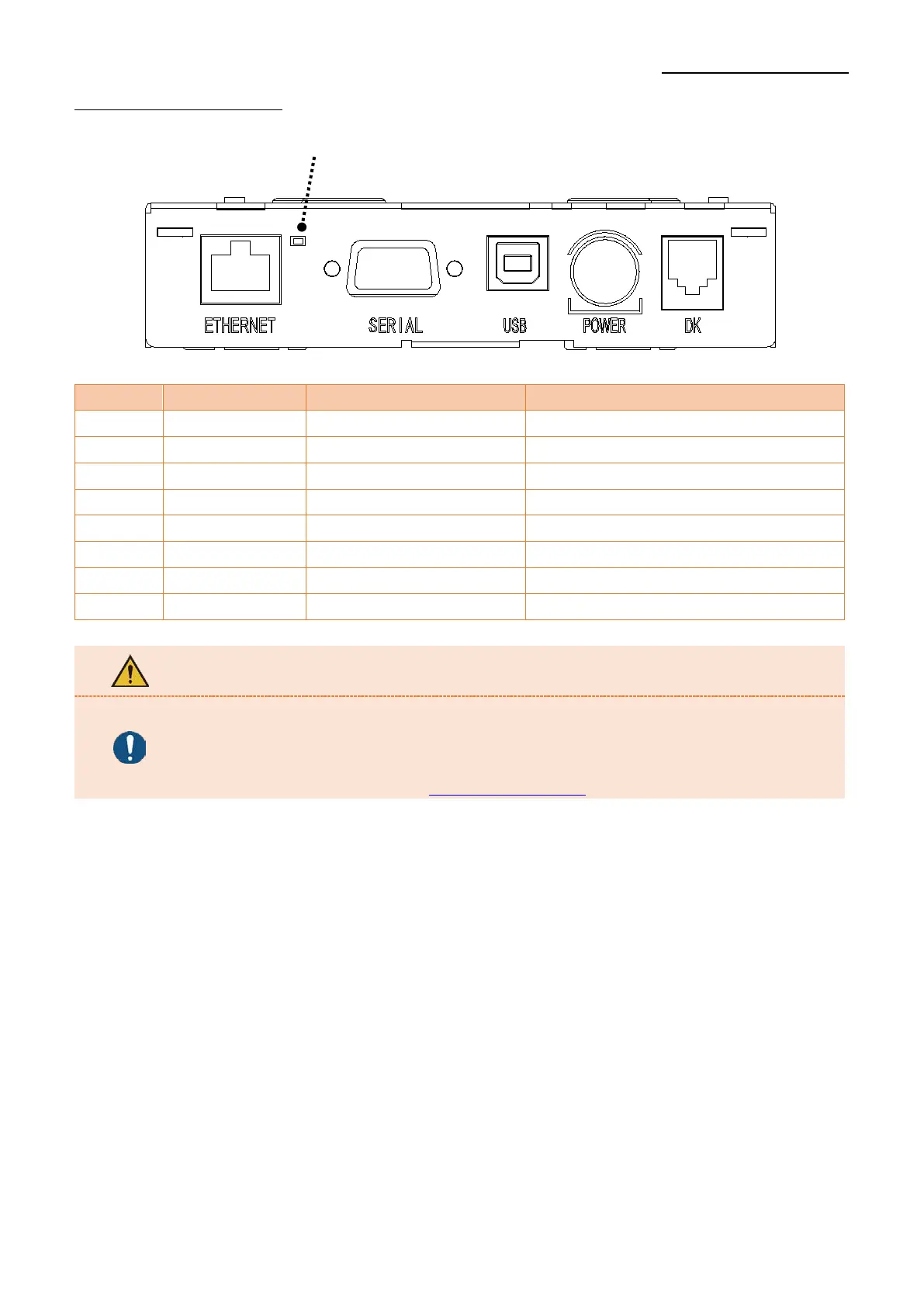

2-2-2 Ethernet Interface
Pin No.
Signal Name
Designation (Color)
Function
1
TD+
White Orange
Transmit +
2
TD-
Orange
Transmit -
3
TCT
White Green
Receive +
4
NC
Blue
-
5
NC
White Blue
-
6
RCT
Green
Receive -
7
RD+
White Brown
-
8
RD-
Brown
-
Connect or disconnect the communication cable while the printer
power is off. If power is on, your data may be lost.
- If you push the function key, IP and MAC information can be obtained.
- Refer to the utility and network connection manual for
Interface connection information. The network connection manual is
on the BIXOLON website (www.bixolon.com) We're offering it.
