Rev. 3.02
- 18 -
SRP-350

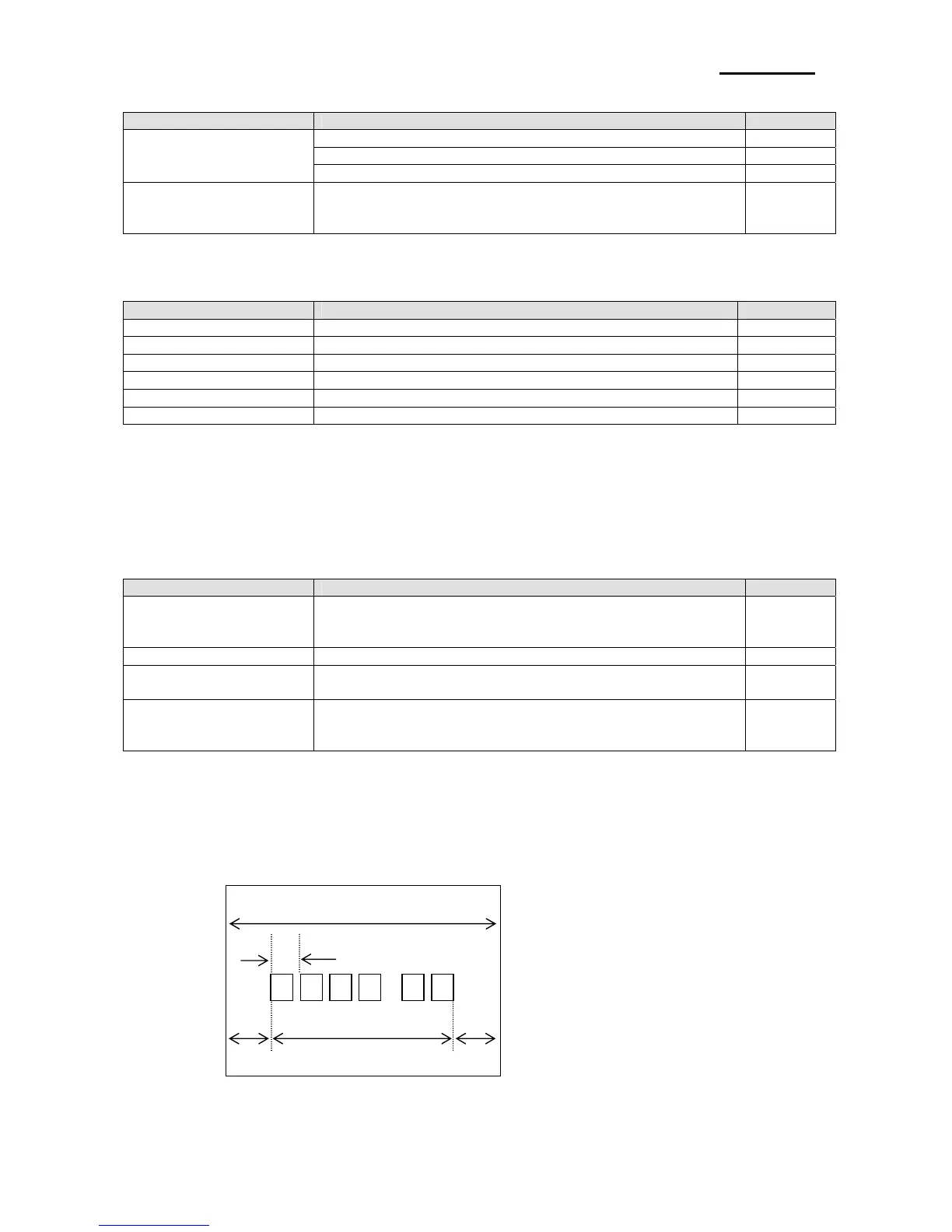

3-3-2 Character Specification
Item Description Remark
• Alphanumeric Characters : 95
• Extended Characters : 128 x 34 Page
(Including one space page)
Number of Character
• International Characters : 32
Character Structure
• 12 x 24 (Font A) (Including 2-dot spacing in horizontal)
• 19 x 17 (Font B) (Including 2-dot spacing in horizontal)
Font A is selected as the default
Table 3-3 Thermal Printer Character Specification
3-3-3 Paper Specification
Item Description Remark
Paper Type • JUJO AF50KS-E
Paper Form • Paper Roll
Paper Width • 80mm(+0,-1), 3.14”(+0,-0.039”)
Paper Roll Size • Max 83mm
Spool Inside Dia. • 12mm (0.47”)
Spool Outside Dia. • 18mm (0.71”)
Table 3-4 Thermal Printer Paper Specification
※ Note : The Following paper can be used instead of the specified paper above.
TF50KS-E : Nippon Paper industries Co., Ltd.
PD 160R : New Oji Paper Mfg, Co., Ltd.
F380 : Kansaki Specialty Paper, Inc. (USA)
3-3-4 Reliability and Environment Specification
Item Description Remark
Life • Mechanism : 15 Million lines
• Head : 1x10
8
Pulses / 100Km
• Auto Cutter : 1,500,000 Cut
MCBF • 37,000,000Lines
Environmental
Temperature
• Operating : 0°C ~ +45°C
• Storage : -10°C ~ +50°C (Except for Paper)
Humidity • 30~80% RH (Operating)
• 10~90% RH (Storage)
; Except for Paper
Table 3-5 Thermal Printer Reliability Specification
3-3-5 Printable Area
The Printer area of a paper with width of 80-1.0mm(3.13”±0.02”) is 72.2±0.2mm(2.84”±0.008”)(512dots) and
The space on the right and left sides are approximately 2.5mm(0.098”).
a
d c e
a = 80-1.0mm (3.13"±0.02")
b = 0.141mm±0.05mm (.056"±.008")
c = 72mm±0.2mm (2.83"±.002")
d = 2.5mm (0.098") Over
e = 2.5mm (0.098") Over
[All the numeric values are typical]
Figure 3-4 Printable Area
b
To Next Page
