BIXOLON SRP-F310II User Manual

SRP-F310/F312/F313II
Ver. 2.00
- 17 -

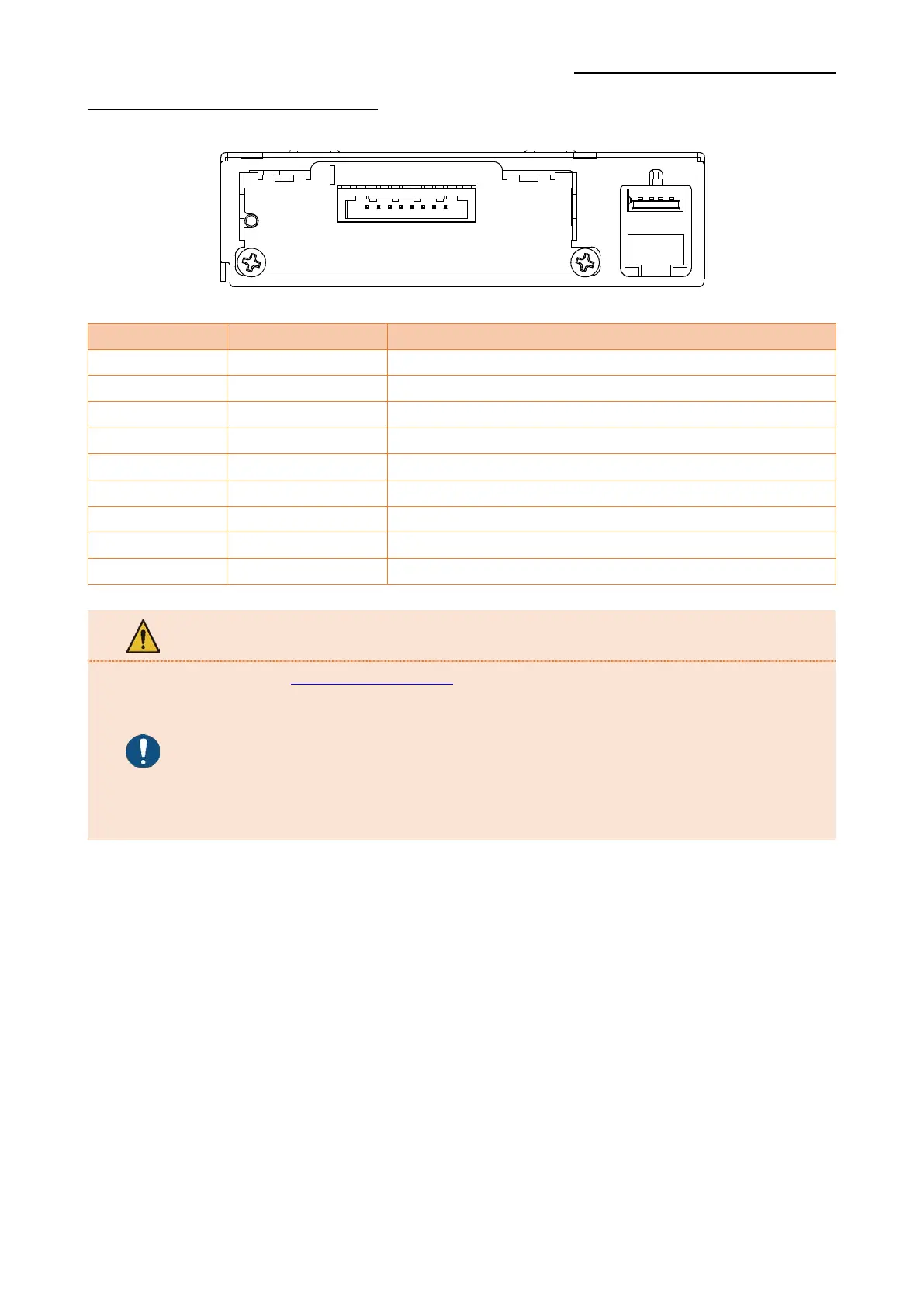

2-2-5 Powered USB Interace Card
Pin No.
Signal Name
Function
Shield
Shield
Frame Ground
1
PGND
Main Power Ground
2
VPP24V
Main Power
3
GND
Signal Ground
4
D+
Data Line (D+)
5
D-
Data Line (D-)
6
VBUS
Hose Power
7
VPP24V
Main Power
8
PGND
Main Power Ground
Connect or disconnect the communication cable while the printer
power is off. If power is on, your data may be lost.
- Refer to www.powered.org for detailed information related to the
specifications of cable and port.
- Do not apply 24V when using powered USB.
(Powered USB uses its own power.)
- In case of using Powered USB interface, the other USB interface
provided by default is not useful. (In this case, USB communication is
only available through the Powered USB)
Powered USB Port
