22

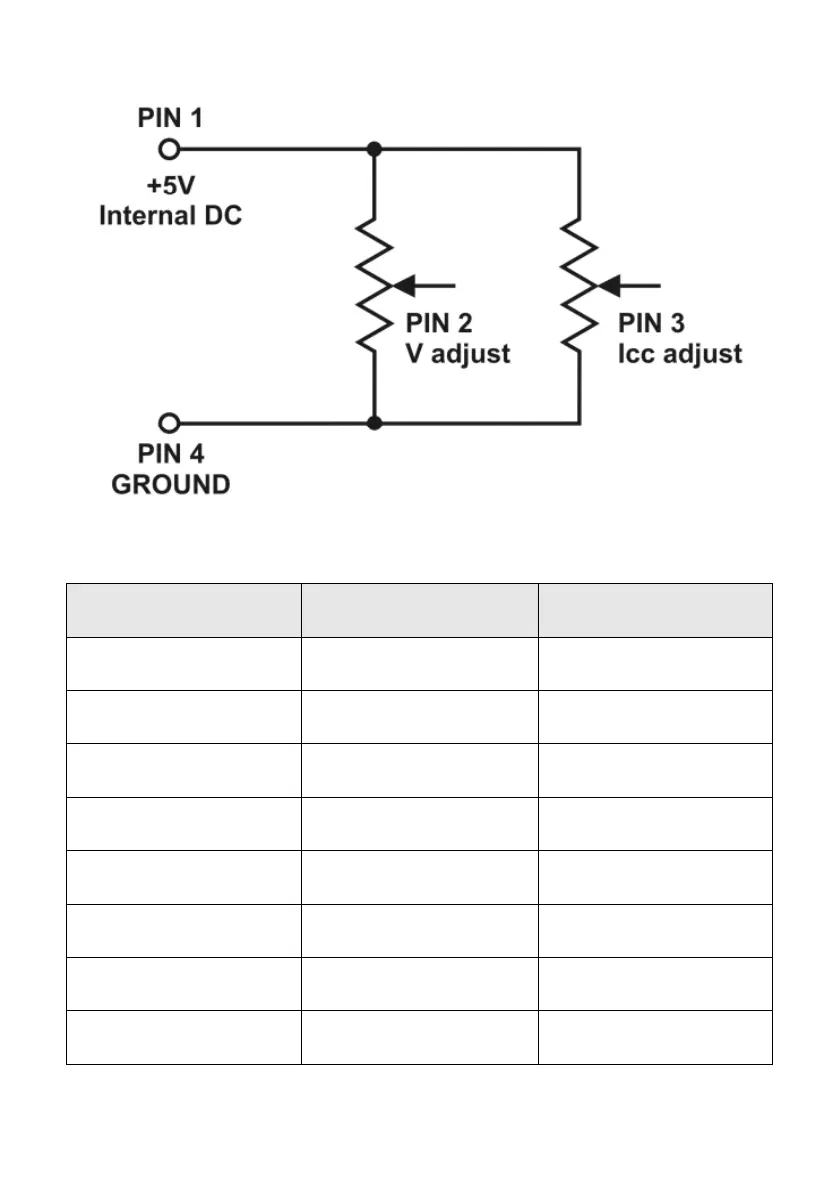

Figure 7 - Variable 5 kΩ Resistors Setup
PIN
FUNCTIONS
REMARKS
1
Internal DC +5 V
Resistor end
2
Voltage Adjust
Variable part of resistor
3
Current Adjust
Variable part of resistor
4
Ground
Resistor end
5
Output OFF
Short to Ground
6
N/A
7
N/A
8
N/A
Table 5 – Remote Connector Plug Pin Assignment for Variable Resistors
