BK Precision 1688B - Controls and Indicators; Front Panel Controls and Display

7
3 Controls and Indicators
3.1 Front Panel

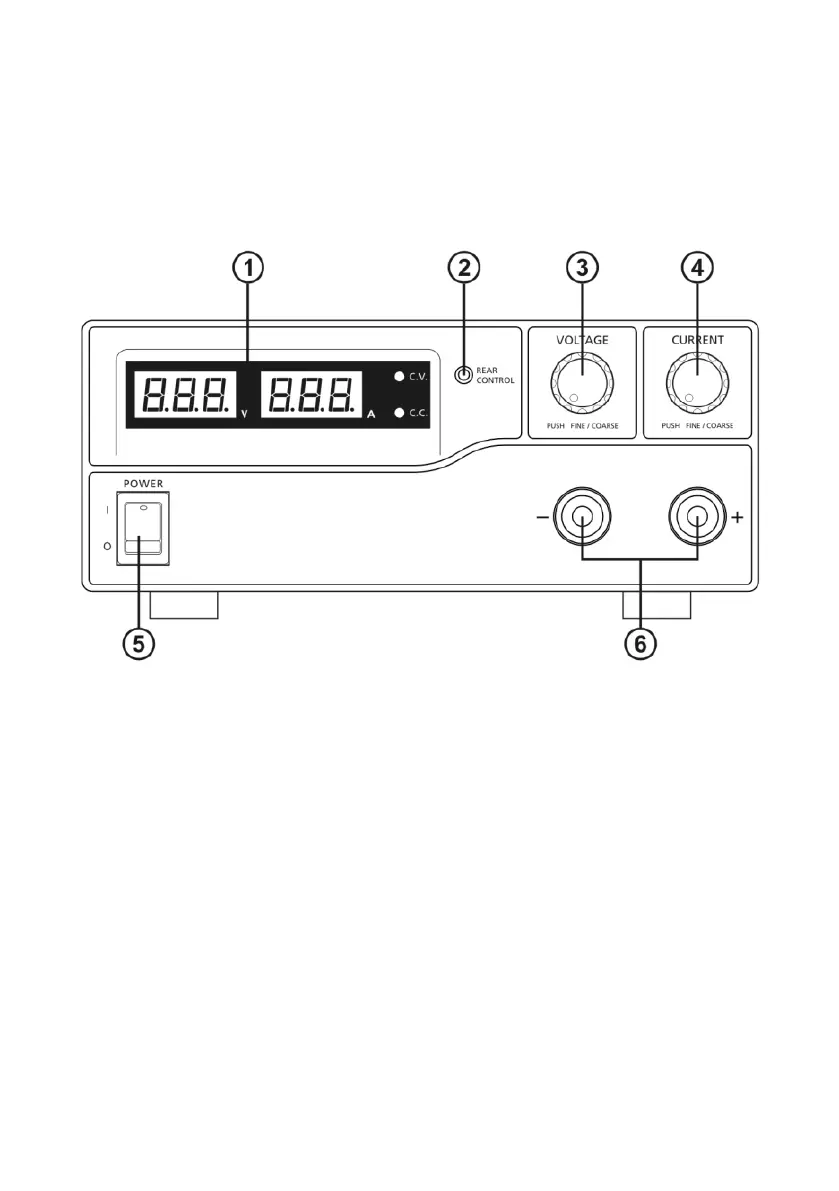

Figure 1 - Front Panel
(1) LED panel meter display with CV/CC indicator
(2) Rear Control Indicator (lights up when using Preset/Remote Control/Set mode)
(3) Output Voltage Control Knob (control main and auxiliary output voltage)
(4) Output Current Control Knob (control main and auxiliary output current limit)
(5) Power ON/OFF Switch
(6) Auxiliary Output Terminal (max 5 A)
Note: Please see Section 4.1.5 more details on using both main and
auxiliary output terminals together.
