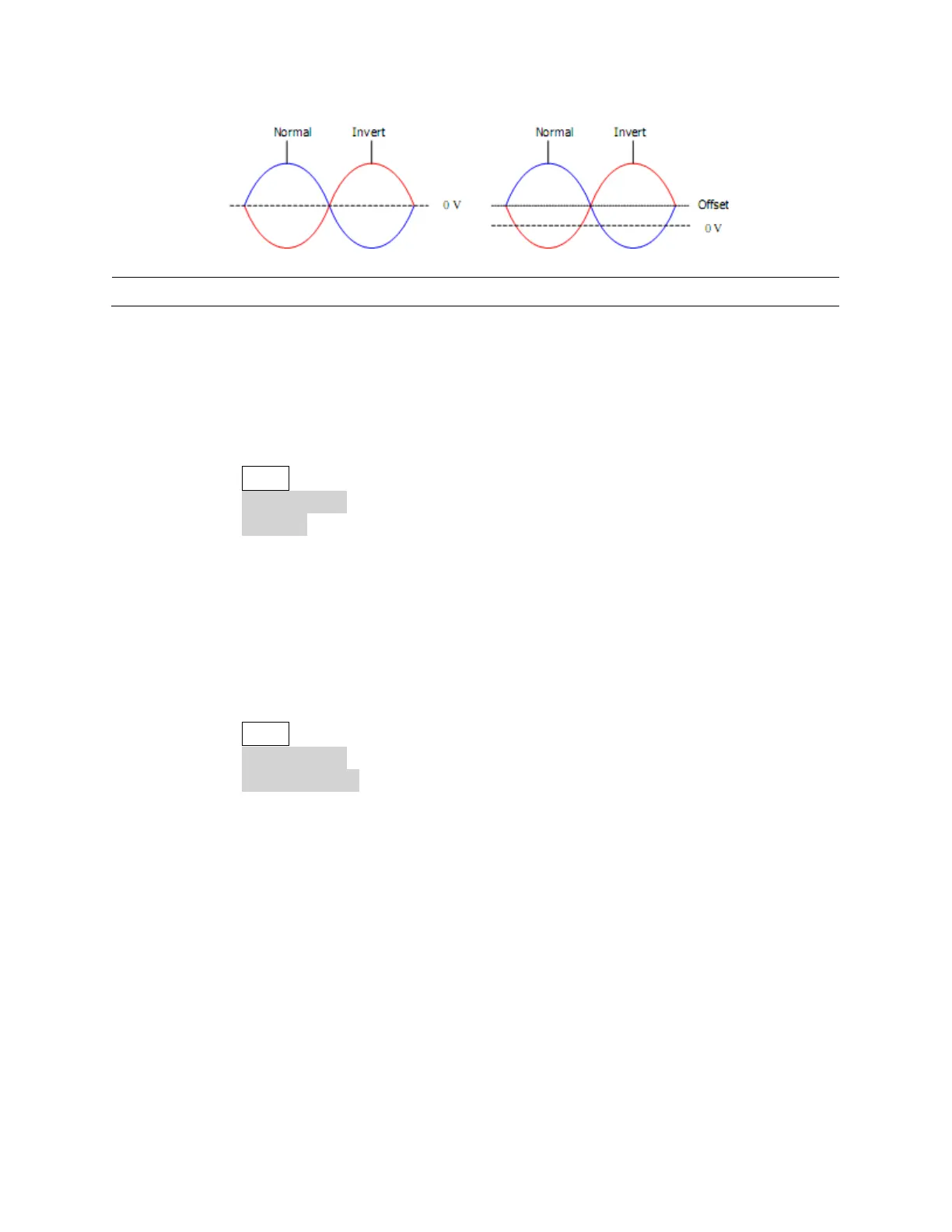

EqPhase
The unit can set both channel 1 and channel 2 to be in phase. Once the selected channel has
the required phase follow the steps below to copy the phase to the other channel:
1. Press the Utility button.
2. Press the Output Setup.
3. Press the EqPhase softkey to align the phases of CH1 and CH2.
Combining Waveforms (Wave Combine)
The CH1 output port of the generator outputs the waveform of CH1 in the normal mode, while
the waveform of CH1+CH2 (the sum of the two waveforms) can be output in the combined
mode. Similarly, the CH2 output port of the generator outputs the waveform of CH2 in the
normal mode while the waveform of CH1+CH2 can be output in the combined mode.
1. Press the Utility button.
2. Press the Output Setup softkey.
3. Press the Wave Combine softkey to enter the waveforms combining interface, as shown
in the following figure.
