BK Precision 8542B User Manual

General Information 21
3.7 Rear Panel Overview

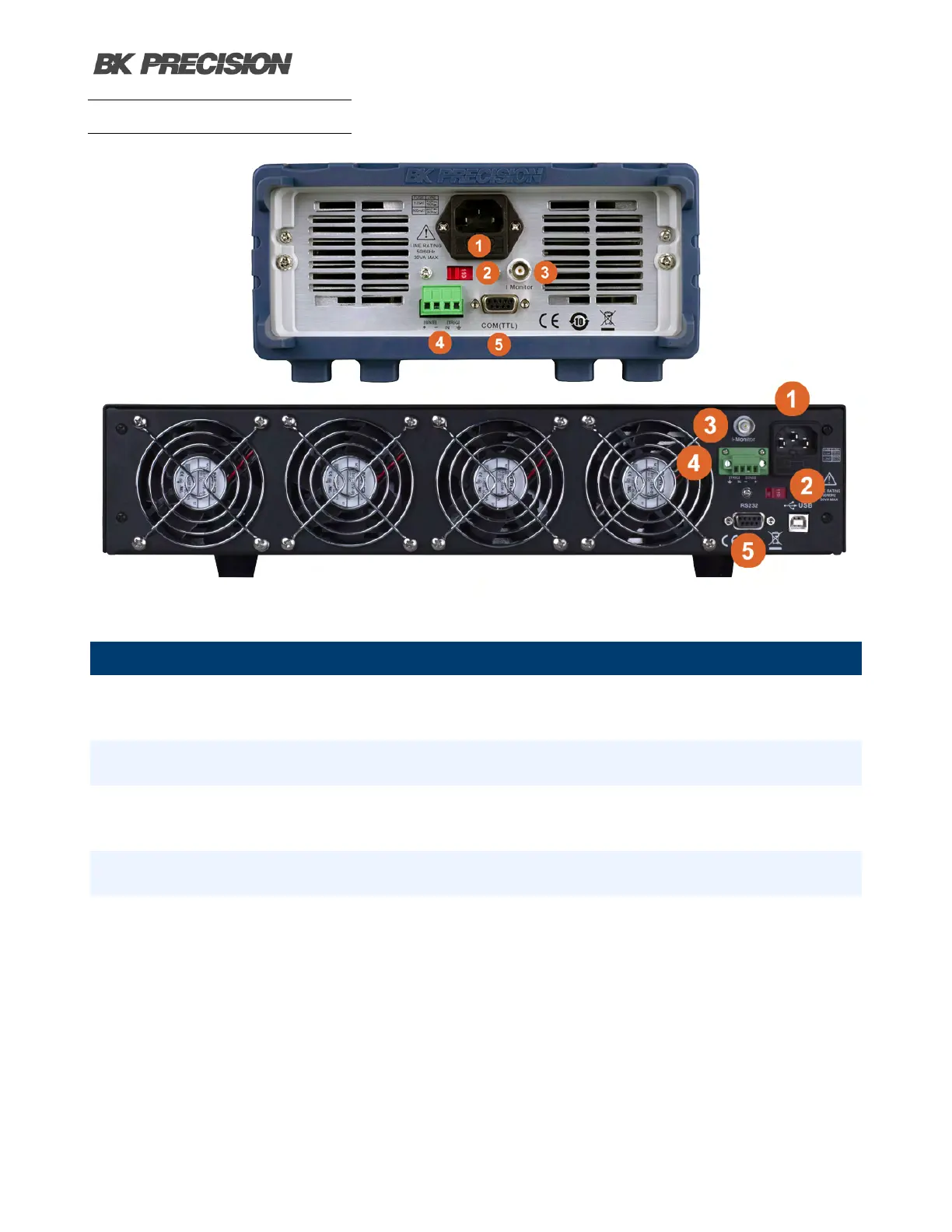

Figure 3.4 Rear Panel Overview
Item Name Description
1
AC power input
& fuse box
Houses the fuse as well as the AC input.
2 Line Voltage Selection Select 110/220V±10%AC input.
3 Current Monitoring
Connect an external voltmeter or oscilloscope to
display the input’s current.
4 Sense Remote Sense terminals
5 Comm. Interface
Connect TTL adapter/USB cable to remotely control
the unit.
Table 3.4 Rear Panel Overview
