6.2.5 Toggle Transient Mode
In toggle transient operation the electronic load will switch between the main level and the transient level
when a trigger signal is received.
The load will remain at the transient level until another trigger is received, at which time the load will
switch back from the transient level to the main level.

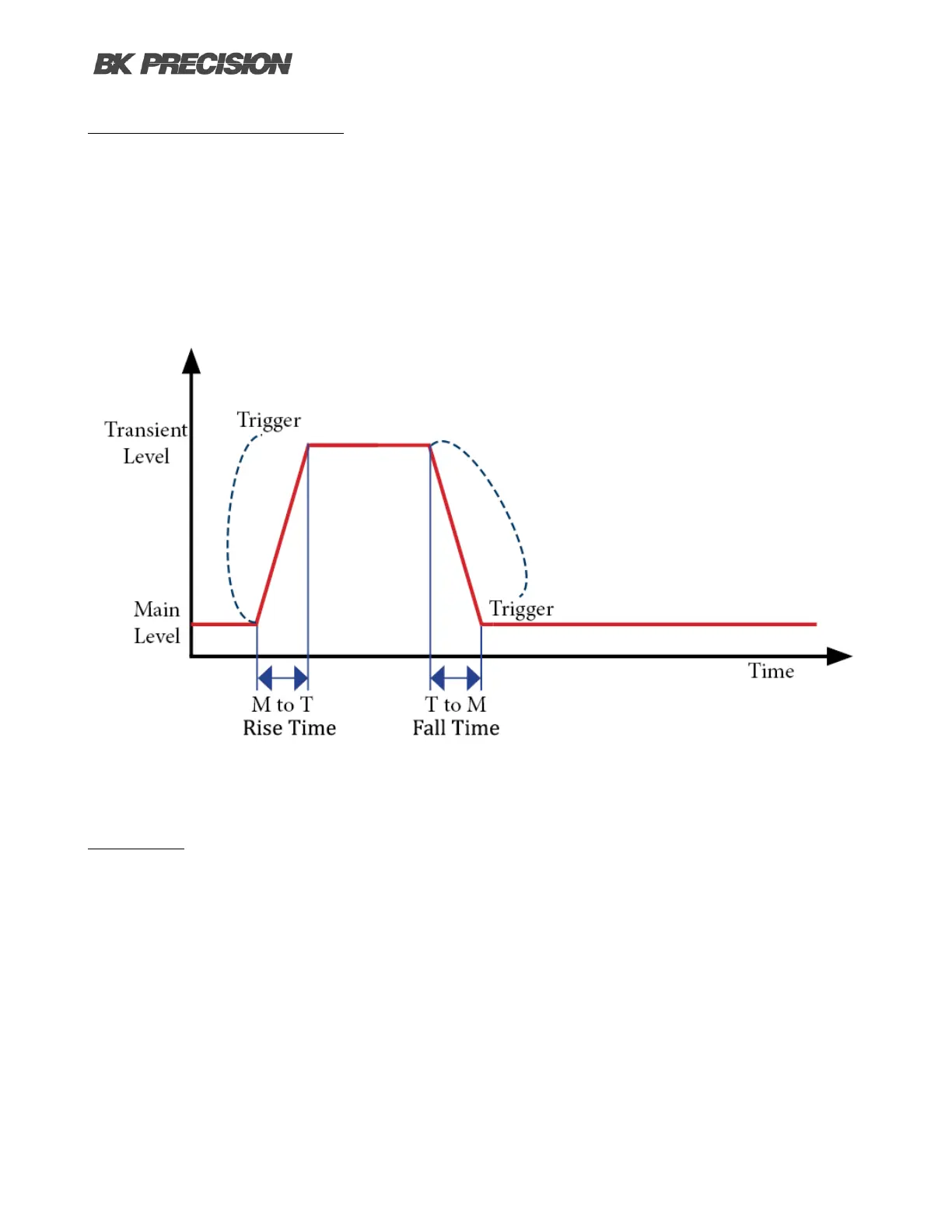

Both of these switches in level occur in accordance with the user specied slew rate. Figure 6.2.5 shows
the current waveform in toggle transient operation.
Figure 6.7 Toggle Transient Mode
A/B Level
The A/B Level refers to the two values the transient function will transition between. The values units will
vary depending on the selected Load Mode.
