BKI MHB - Mechanical Specifications

Mobile Hot Bar Installation
8

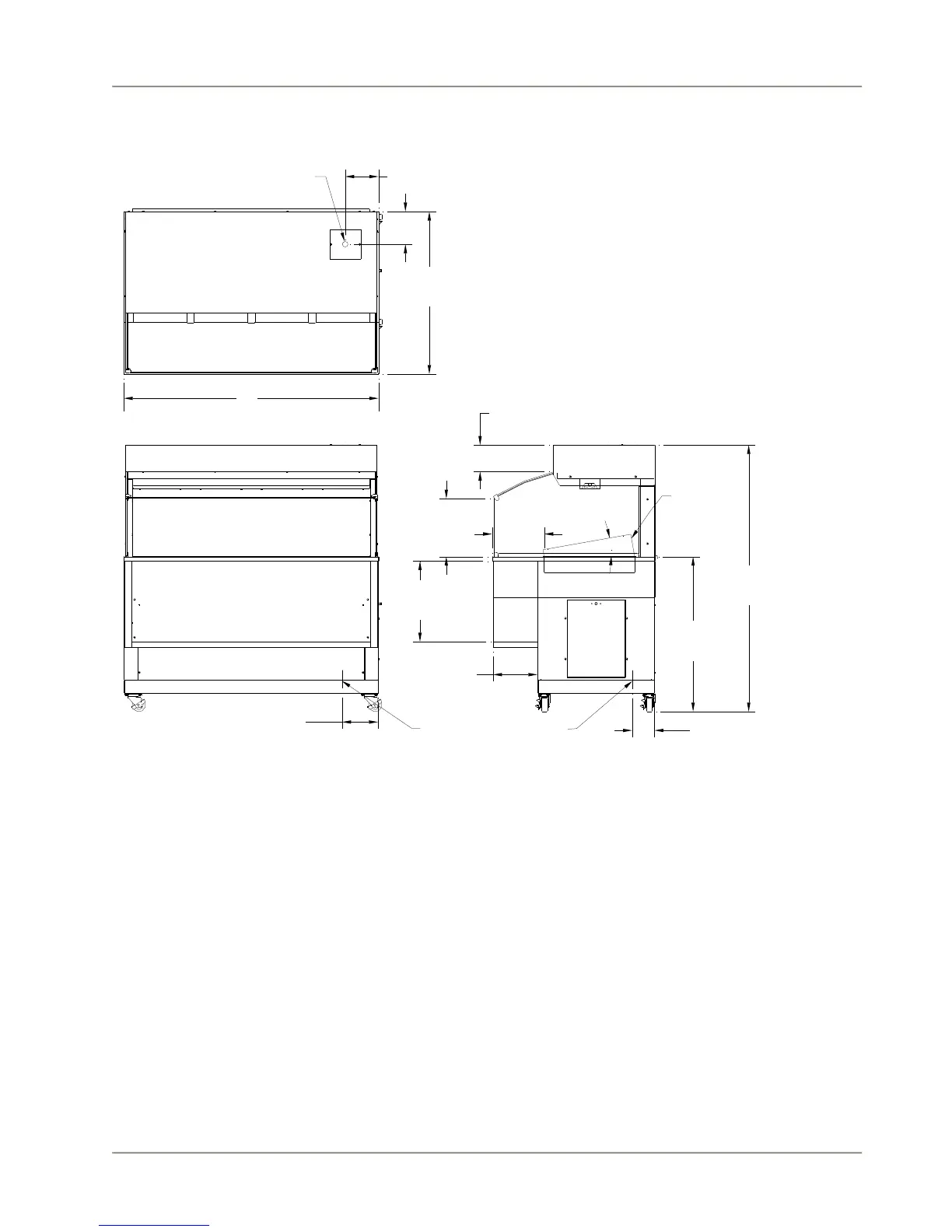

Mechanical Specifications
10°
34 3/8
[873.2]
59 1/8
[1501.9]
5 7/8
[148.8]
11 9/16
[293.7]
9 7/8
[251.1]
17 7/8
[453.8]
36 1/16
[916.0]
A
7 3/8
[187.8]
7 1/4
[184.2]
8
[203.2]
4 15/16
[125.4]
12 7/8
[327.0]
OPTIONAL
ANGLED
WELL
RISER
TOP CORD ENTRY
(3/4 KNOCK OUT)
BOTTOM CORD ENTRY
(3/4 KNOCK OUT)
MODEL WELLS DIM. "A"
MHB-3 3 43 [1092]
MHB-4 4 56 1/2 [1435]
MHB-5 5 70 [1778]
208V 220V 240V
MODEL kW Amps* kW Amps* kW Amps*
MHB-3 3.3 10.7/15.9 3.2 10.0/14.7 3.8 10.9/16.0
MHB-4 4.4 12.5/21.1 4.3 11.5/19.5 5.1 12.5/21.2
MHB-5 6.2 18.7/29.9 6.0 16.2/27.4 7.2 17.7/29.8
* ALL MODELS ARE 3 or 1 Ph
AMPS SHOWN ARE 3 Ph/ 1 Ph
