BKI MHB - MHB-4 Wiring Diagram

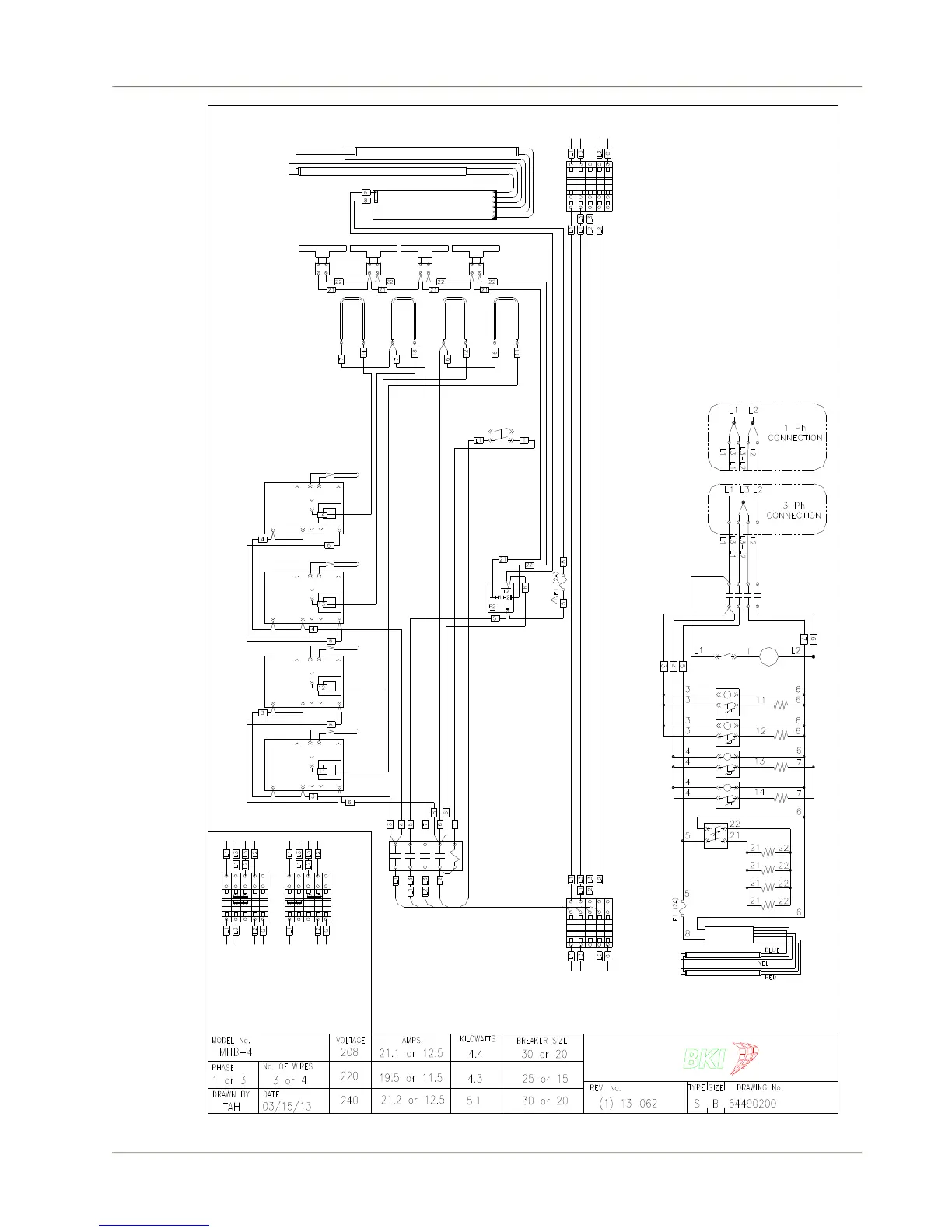

Mobile Hot Bar Wiring Diagrams
14
B1
F1
H1
H2
L1
P1
R1
SW1
SW2
T1
TB1
&
TB2
TB3
B0090
F0123
FH0001
C0375
C0376
C0057
FL0045
T0174
R0150
S0356
S0141
K0053
T0110
K0053
TB0003
TB0004
TB0005
TB0109
TB0059
BALLAST, T5 x 2 LAMPS
FUSE, 2A
FUSE HOLDER
HEATING ELEMENT, 750W, 208V
HEATING ELEMENT, 750W, 230V
HEATING ELEMENT, 400W, 230W
LAMP, F28T5, SHATTERPROOF
PROBE, THERMISTOR
CONTACTOR, 50A, 230V
SWITCH, ROCKER
INFINITE SWITCH
KNOB w/ INDICATOR
THERMOSTAT
KNOB w/ INDICATOR
TERMINAL SECTION, 3 POLE
END PLATE, TERMINAL SEC.
GROUND TERM. SEC., 3 POLE
END STOP, TERMINAL SEC.
TERM. BLOCK, 2 POLE CERAMIC
COMPONENT LEGEND
KEY Part No. DESCRIPTION
SW1
120
100
COM
240
Relay
Relay
Aux 1
Aux 3Aux 2
Probe
T1
P1
SW2
R1
BLUE
BLUE
YEL
YEL
RED
RED
BLUE
YEL
YEL
RED
120
100
COM
240
Relay
Relay
Aux 1
Aux 3Aux 2
Probe
120
100
COM
240
Relay
Relay
Aux 1
Aux 3Aux 2
Probe
120
100
COM
240
Relay
Relay
Aux 1
Aux 3Aux 2
Probe
H1
H2
B1
TB3
L1
TB1
TB2
R1
R1
POWER
B1
T1
SW1
SW2
H2
BOTTOM ENTRY
WIRING CONNECTION
TOP ENTRY
WIRING CONNECTION
3 Ph
Connection
1 Ph
Connection
INSTALL JUMPERS ONLY IN TERMINAL
BLOCK FIELD WIRING CONNECTION
IS MADE (TOP or BOTTOM ENTRY).
POWER ENTRY TERMINAL
BLOCK JUMPER CONFIGURATION
L1
H1
MHB-4
