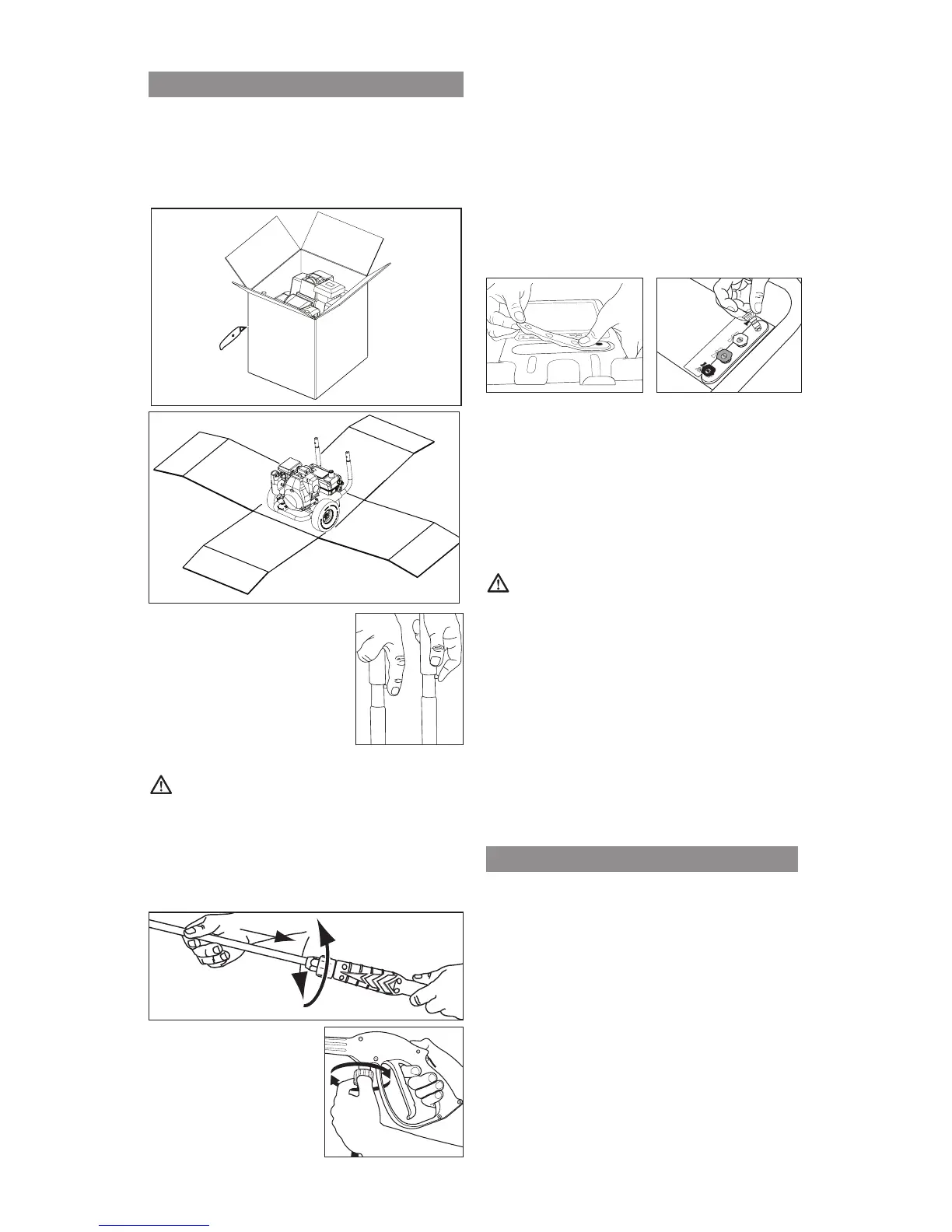

ASSEMBLY INSTRUCTIONS
1. Locate and remove all loose parts
from the carton.
2. Cut four corners of the carton
from top to bottom and lay the
panels flat.
3. Place handle (C)
onto frame (J),
depress the snap
buttons, and slide
the handle assembly
onto the frame until
snap buttons snap
into place.
CAUTION: Risk of personal injury.
Avoid placing hands between handle
and frame when assembling to pre-
vent pinching.
4. Connect wand (N) to gun (O).
Tighten securely.
5. Attach high
pressure hose
(D) to gun (O).
T i g h t e n
se curely.
6. Place the nozzle holder (B) onto
the panel (located on the handle
assembly) and push each nozzle
holder into place.
7.
nozzles (A) from plastic bag and
insert them into correct grommet on
the nozzle holder. NOTE: Nozzles
are color coded to match colored
nozzles on panel.
NOTE: The high pressure pump was
filled with oil at the factory. The oil in
the high pressure pump was designed
to last the life of the pump. If there is
a problem with the pump contact an
Authorized Service Center.
8. Roll the unit off the carton and
discard carton.
WARNING: Risk of bursting. Use a
tire pressure gauge to check the tires
pressure before each use and while
inflating tires; see the tire sidewall for
the correct tire pressure.
NOTE: Air tanks, compressors and
can fill small tires similar to these very
rapidly. Adjust pressure regulator on
air supply to no more than the rating of
the tire pressure. Add air in small incre-
to prevent over inflation.
OPERATING INSTRUCTIONS
PRESSURE WASHER
TERMINOLOGY
PSI:
measure for water pressure. Also used
for air pressure, hydraulic pressure, etc.
GPM: Gallons Per Minute. The unit of
measure for the flow rate of water.
CU: Cleaning Units. GPM multiplied by
PSI. GPM x PSI = CU
Bypass Mode: Allows water to
re-circulate within pump when the gun
trigger is not pulled.
