Page 16
877-877-2269 | blackbox.com
Chapter 3: System Connection
Connect a 24-VDC power adapter to the power port of AVS-HDB-RX. AVS-HDB-WPTX
can be powered synchronously via PoC.

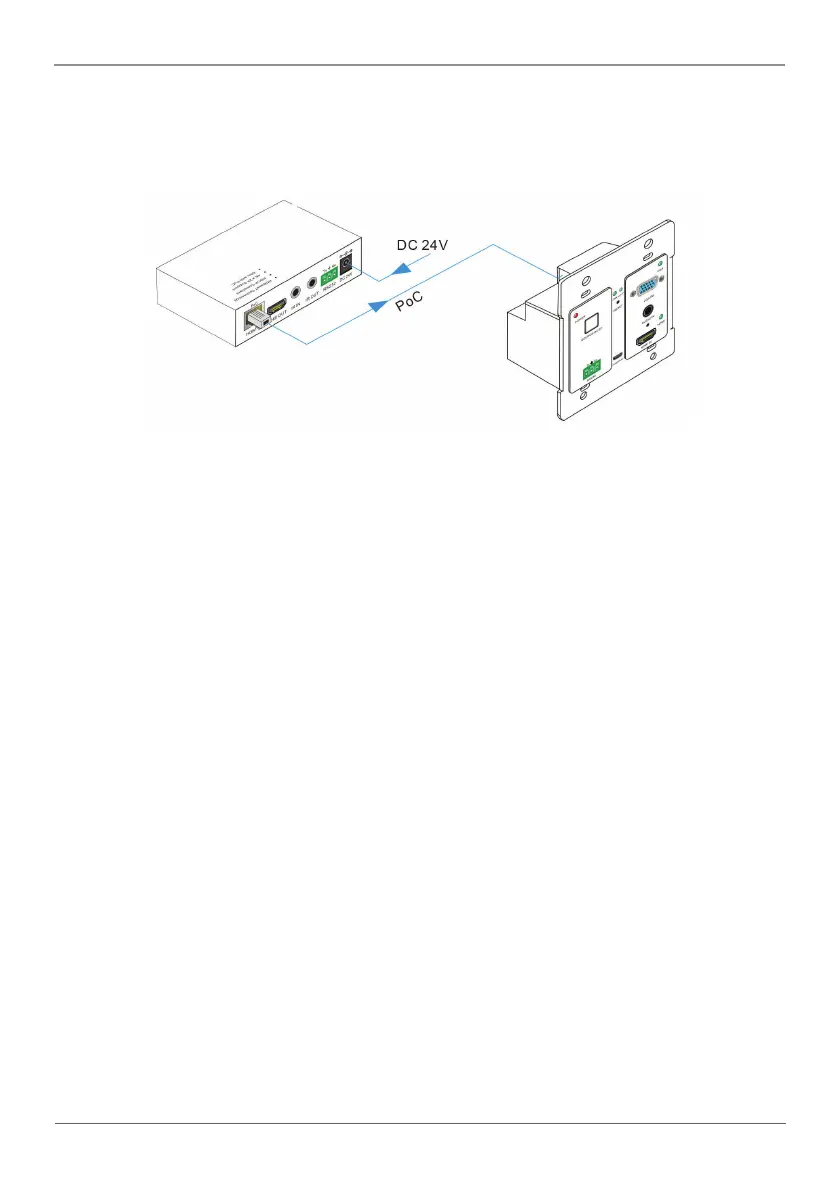

Figure 3-3. PoC connections.
3.5 Application
Use the AVS-HDB-WPTX for computer monitoring, conference rooms, large-screen
displays, television, education applications and more.
