Page 14
877-877-2269 | blackbox.com
Chapter 3: System Connection
3. System Connection
3.1 Usage Precautions
1. Install the system in a clean environment that has a proper temperature and humidity.
2. Make sure that all the power switches, plugs, sockets, and power cords are insulated
and safe.
3. Connect all devices before powering on.
Blu-ray
™
AVS-HDB-RX

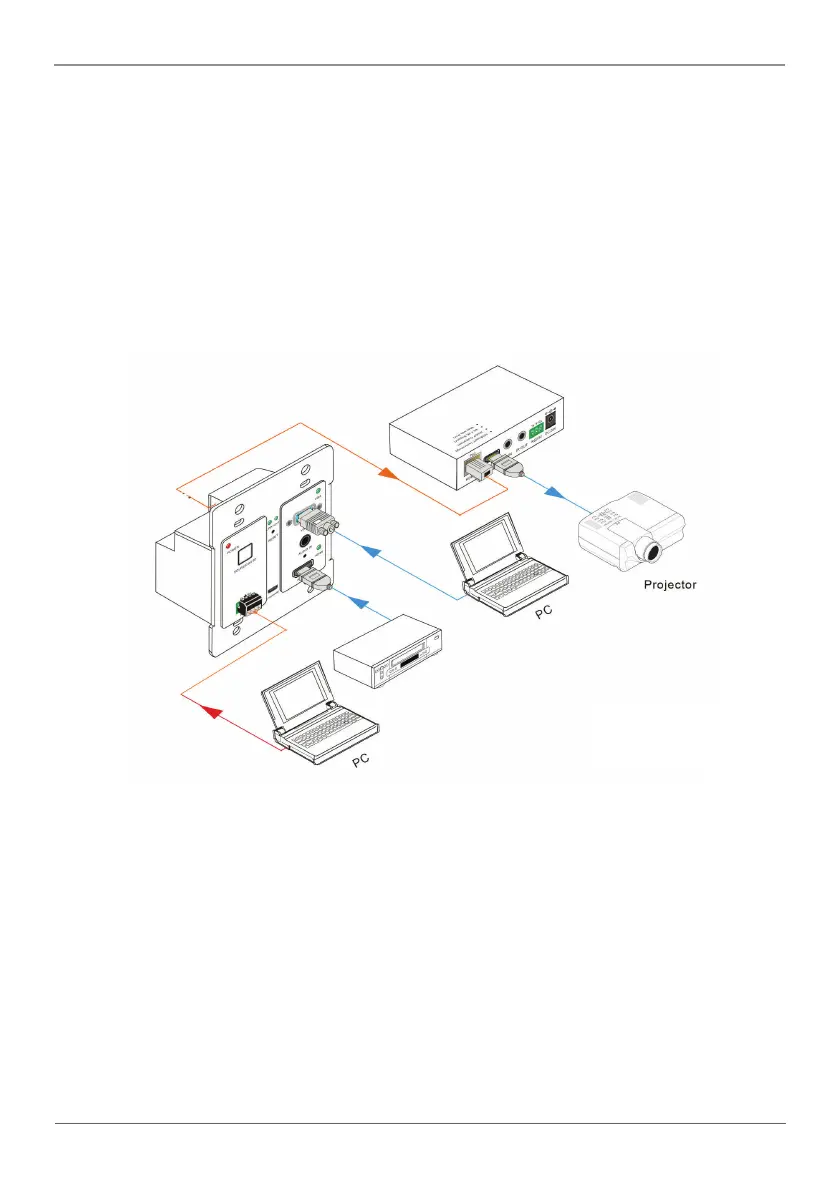

Figure 3-1. Connections.
3.2 Connection Procedure
Step 1: Connect an HDMI source device (e.g. Blu-ray DVD) to the HDMI input port of
the AVS-HDB-WPTX with HDMI cable. Connect a VGA source device (e.g. PC)
to the VGA input port of the AVS-HDB-WPTX with VGA cable.
Step 2: Connect a AVS-HDB-RX to the HDBaseT port on the rear panel with twisted
pair.
Step 3: Connect a HDMI display to the HDMI OUT port of AVS-HDB-RX.
