Chapter 2: Overview
2.4.2 Side Panel

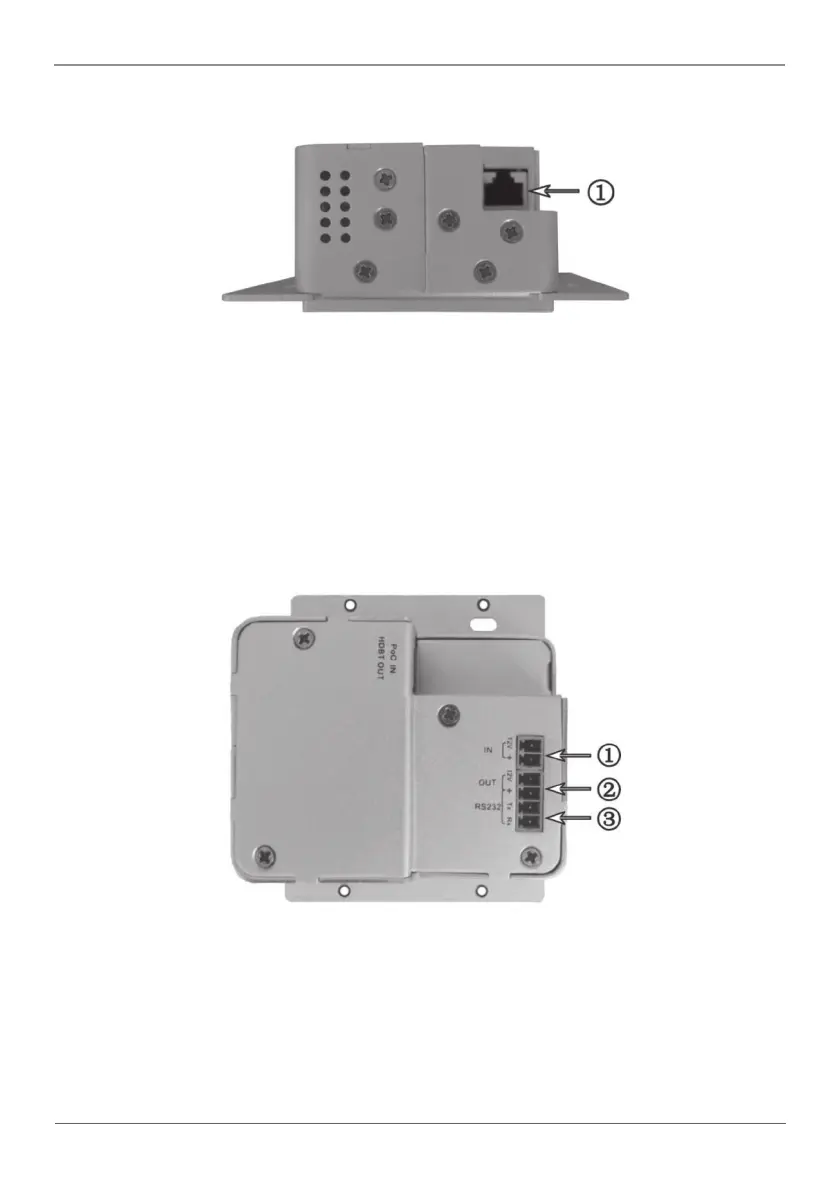

Figure 2-2. Side panel.
1. HDBaseT OUT: RJ-45 port, connect to a receiver via a CAT5e/6 cable to deliver
Audio/Video signals, supports PoC.
NOTE: AVS-HDB-WPTX supports unidirectional PoC. It can be powered the by far-end
receiver but it can’t power the far-end receiver.
2.4.3 Back Panel
Figure 2-3. Back panel.
