CHAPTER 2: OVERVIEW
2.4.2 BACK PANEL

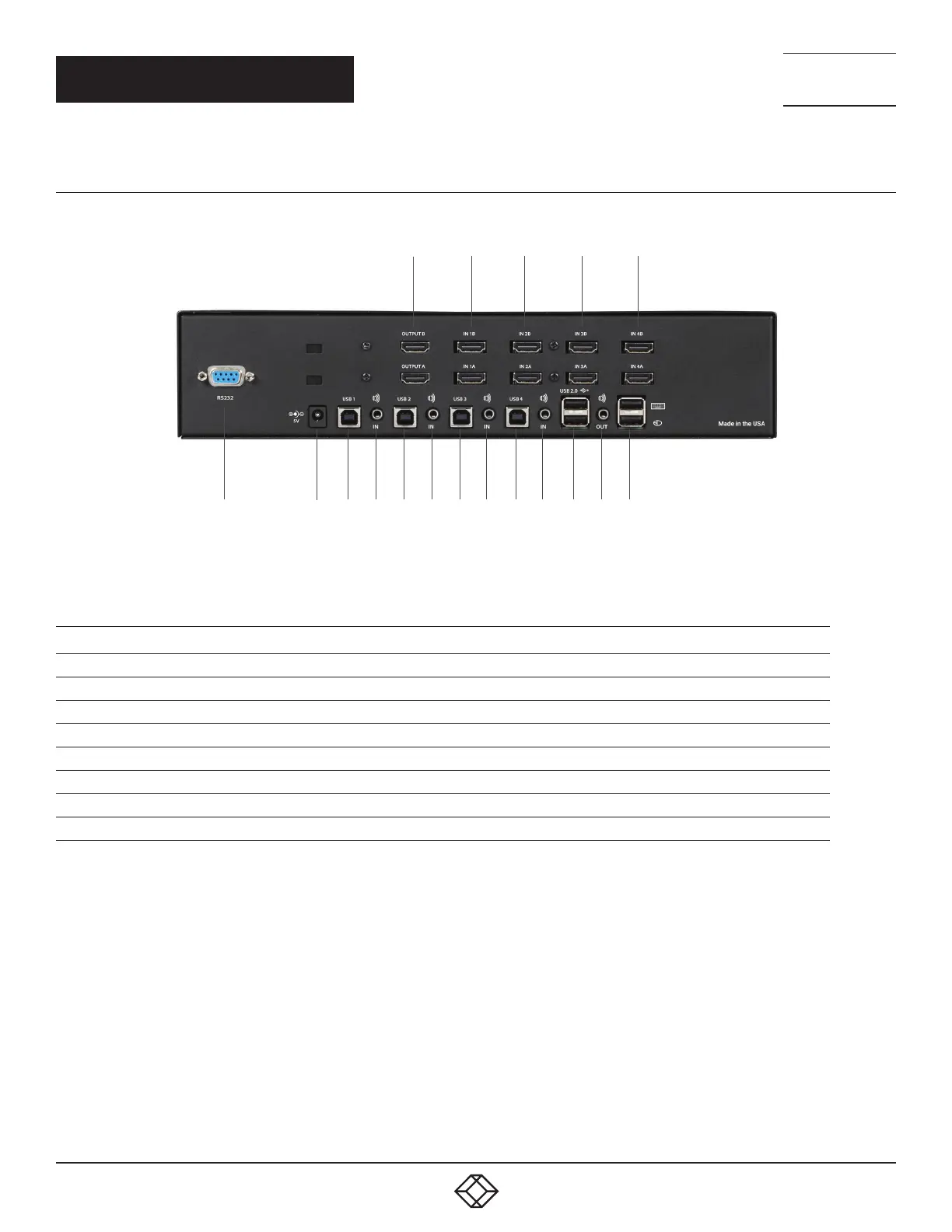

Figure 2-2 shows the back panel of the HD6224A. Table 2-2 describes its components.
1 2 3 4 3 4 3 4 3 4 5 6 5
7 8 8 8 8
FIGURE 2-2. BACK PANEL OF THE HD6224A
TABLE 2-2. HD6224A BACK-PANEL COMPONENTS
NUMBER IN FIGURE 2-2 COMPONENT DESCRIPTION
1 (1) DB9 female connector Used for RS-232 control
2 (1) barrel connector Links to 5-V power supply
3 (4) USB Type B connectors Connects to computer input interfaces
4 (4) Audio IN connectors Connectors to input audio
5 (4) USB Type A connectors Connects to device output interfaces
6 (1) Audio OUT connector Connects to output audio
7 (2) HDMI 2.0 female connectors Links to Output A and Output B
8 (8) HDMI 2.0 female connectors Links to Inputs 1A, 2A, 3A, 4A, 1B, 2B, 3B, and 4B
