Chapter 5: Diagnostics
5. Diagnostics
Clicking the Diagnostics icon opens the “Diagnostics” dialog box and enables you to check the operation of connected Modbus
Hardened Serial Servers on the local computer.
The Computer Information box displays information about the type of network connections, the IP addresses, Subnet Masks, and
Default Gateways in use.

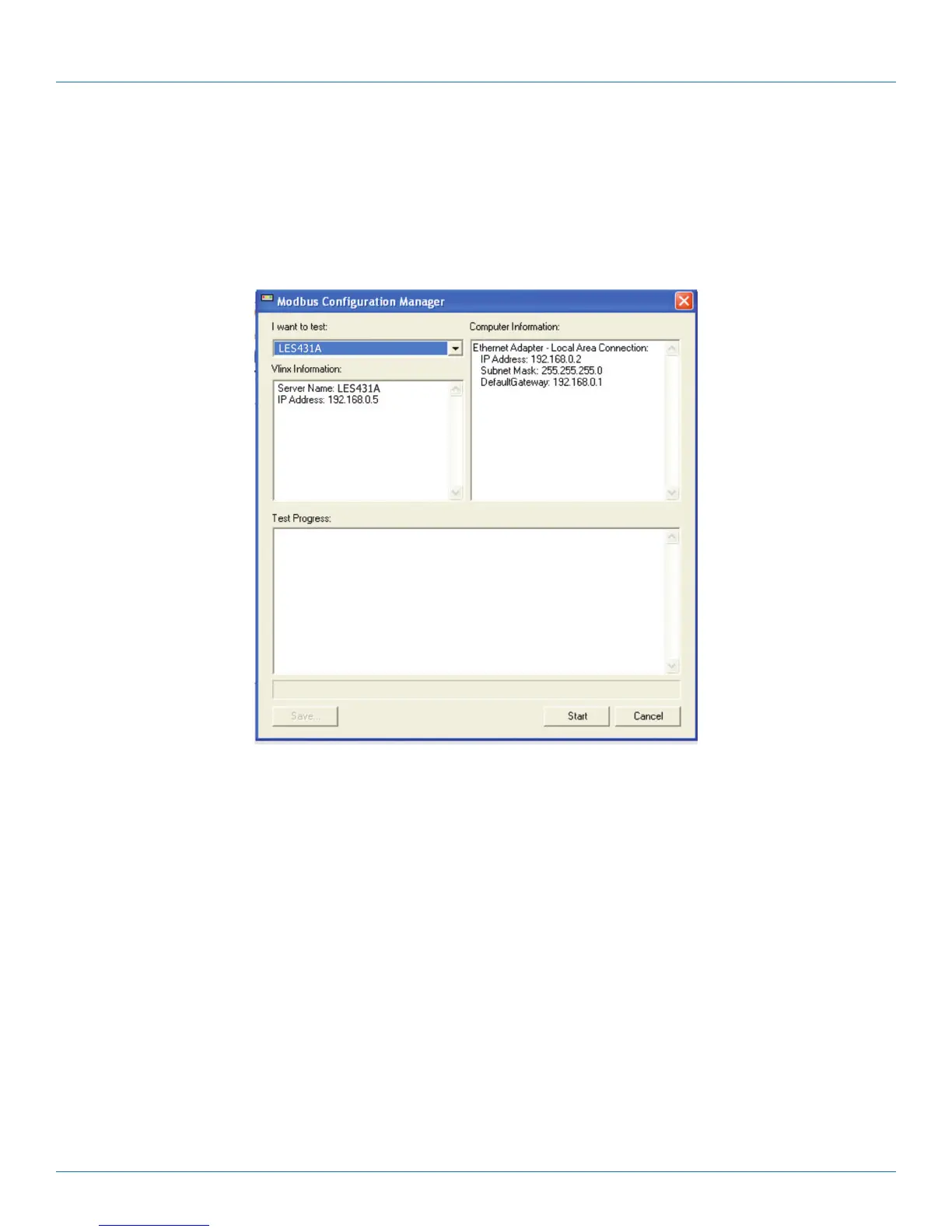

Figure 5-1. Diagnostics dialog box.
Testing a Modbus Hardened Serial Server Connection
To run diagnostics on a Modbus Hardened Serial Server:
1. Click the “Diagnostics” icon.
The “Diagnostics” dialog box appears.
2. In the drop-down box, select the specific Modbus Hardened Serial Server you want to check.
3. Click the “Start” button. Information about the progress of the pinging process is displayed in the “Test Progress” box.
