724-746-5500 | blackbox.com
Page 48
724-746-5500 | blackbox.com
Chapter 6: Application Examples
2. Configure the Modbus slave ID routing. In this case Modbus slaves 1 through 5 and 205 are on Serial Port 1. Modbus slaves
150 and 151 through 160 have IP assignments.

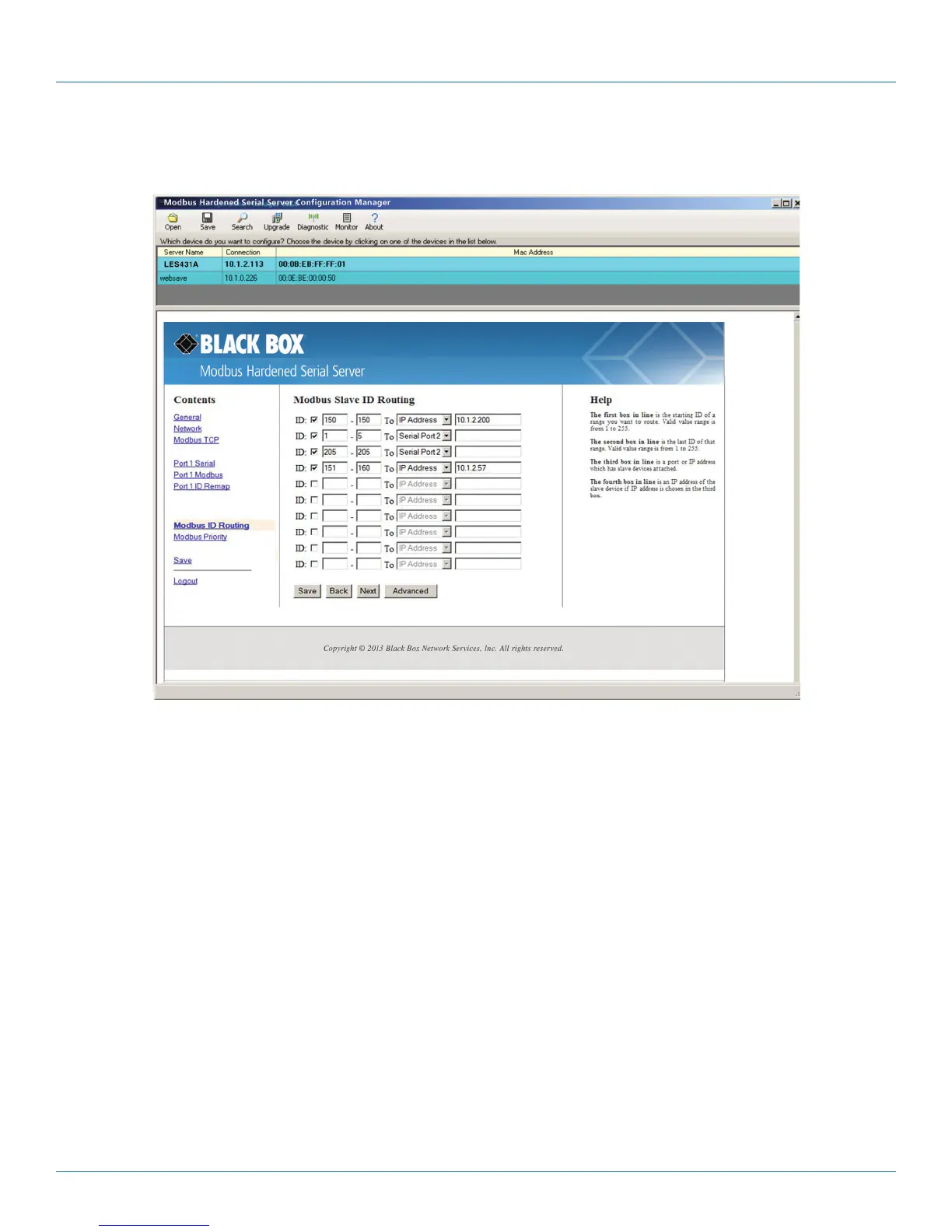

Figure 6-9. Modbus Slave ID routing.
