Chapter 3: Configuration
3.12.2 Statistics
This section describes the port statistics of GARP for all switch ports. The port statistics relate to the currently selected unit, as
shown in the page header.
Web Interface
To display GARP Port statistics in the Web interface:
1. Click GARP statistics.
2. Scroll to the port you want to display the GARP Counter information.
3. Click Refresh to modify the GARP statistics information.

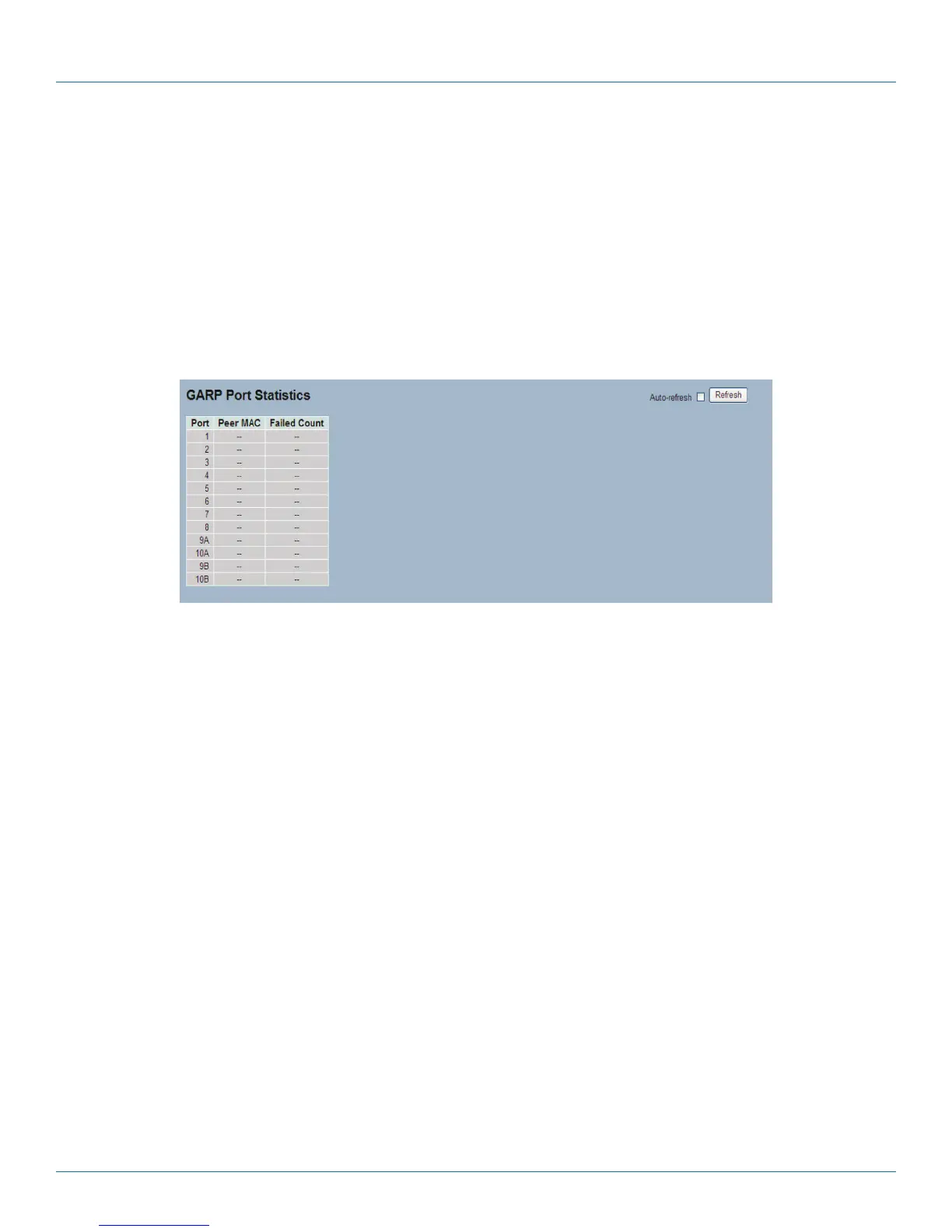

Figure 3-65. The GARP Port Statistics screen.
Parameter Description
• Port: The Port column shows the list of all ports for which per-port GARP statistics are shown.
• Peer MAC: This is the MAC address of the neighboring switch from which the GARP frame is received.
• Failed Count: Records the quantity of all forwarding failure packets, which includes the failed forwarding attempts for Join and
Leave messages.
• Auto-refresh: Check the auto-refresh box to set the unit to refresh information automatically.
• Icon, upper right of screen (Refresh): Click to refresh the GARP Port Statistics information manually.
LGB110 8 A
