W ALL MOUNT INSTALLATION
1-9
403-002-018 Rev A

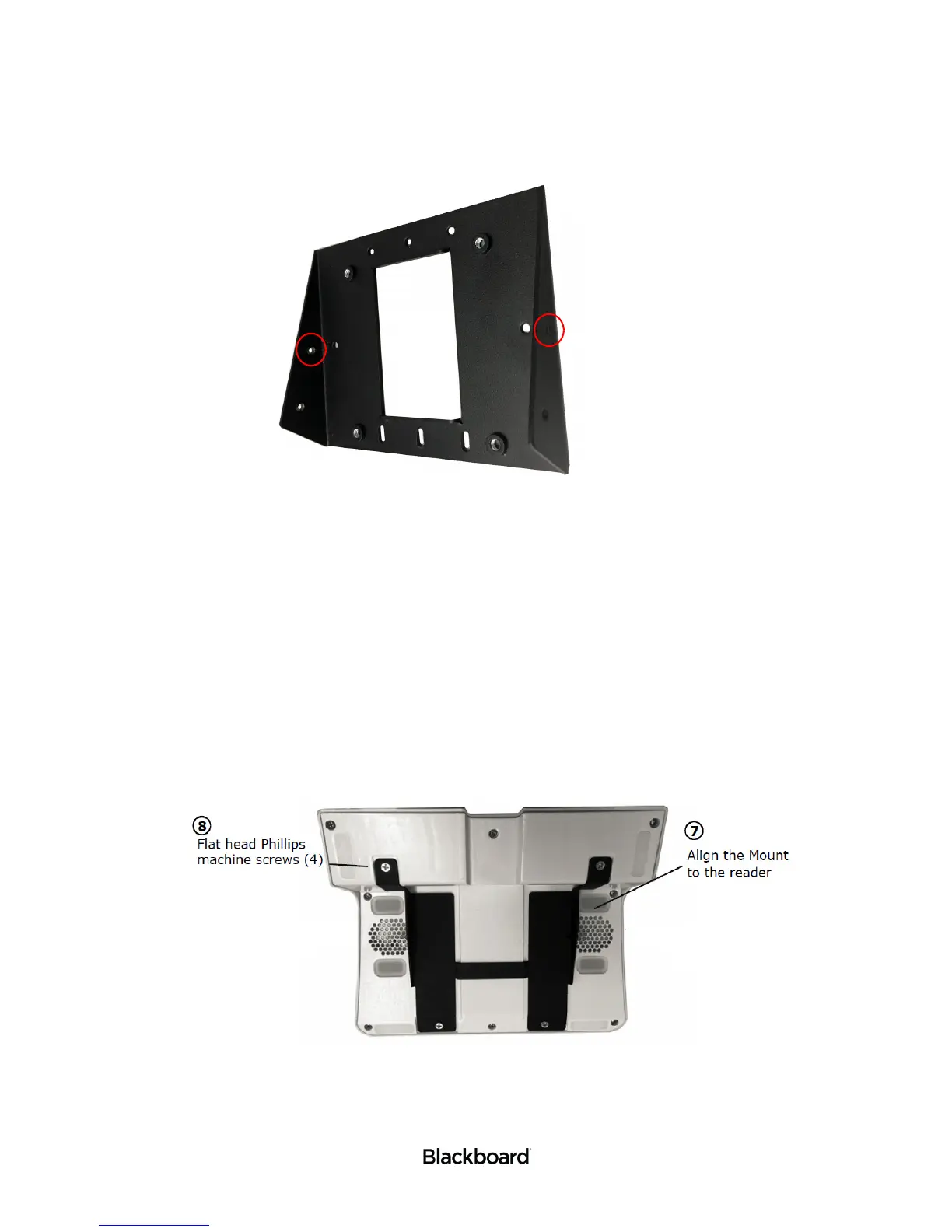

Figure 1-8 Mount Base Installation
4 Tighten all screws.
5 Loosely install 6-32 X 1/2 Tamper Proof screws (2) in the upper screw holes shown in Figure 1-8.
The remaining Tamper Proof screws will be installed later.
6 Obtain the PR5000 Reader and the PR5000 Mount included (Blackboard Part No. 044-059-120).
7 Place the reader on a tabletop with the front of the reader facing downward.
Blackboard recommends using a towel or soft cloth underneath the reader to avoid scratches.
8 Align the Mount with the reader as shown in Figure 1-9.
9 Attach the Mount to the reader using the 6-32 X 1/4 SS Flat Head Phillips machine screws (4).
Figure 1-9 PR5000 Mount and Reader
Loosely install Tamper
Proof Screws (2) in the
upper screw holes.
To Next Page
