PR5000 FUNCTIONAL OVERVIEW
1-2
403-002-018 Rev A
PR5000 FUNCTIONAL OVERVIEW
Inputs and Outputs:
• One RJ-45 connector that is utilized for Power over Ethernet standard 802.3af at 15.40 W.
• Two USB 2.0 Type A connectors.
• One USB Type C connector that support USB 2.0 high speed data transfer.
• 12V - 15W DC Power Input
• Two 2W stereo speakers
Functional Overview - Bottom

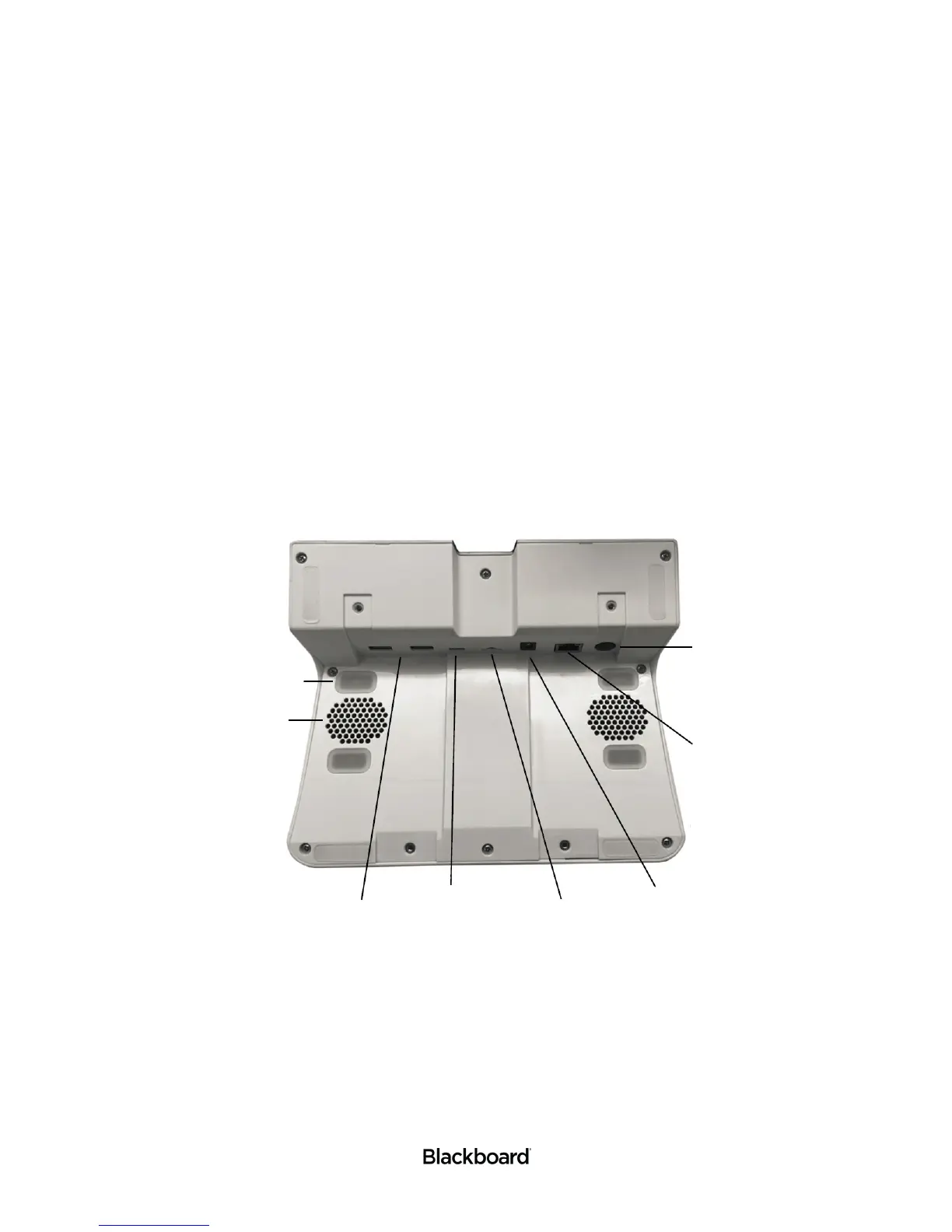

Figure 1-2 Functional Overview - Bottom
Bottom of the PR5000 Reader
LEDs (4)
Stereo Speakers (2)
USB 2.0 Type A
USB Type C
Micro SD Card
Connector
DC Power Input
RJ-45
Reset
Button
