The chain binder is accessed by opening the hatch
and is designed to connect to a link in the anchor
chain when the anchor is hauled in. To release the
binder, pull the anchor chain in slightly to relieve
the tension on the binder, then release the binder
from the chain. To secure the anchor in the up
and stored position, raise the anchor until it seats
rmly in the roller with the chain snug. Attach the
chain binder to a link in the chain. Before getting
underway after hauling the anchor, always make
sure the binder is properly attached to the anchor
chain link and the hatch is closed and latched.
Windlass
The windlass is mounted in the compartment
below the hatch in the deck. The anchor is stored
on the roller and is raised and lowered by the
windlass. The anchor line is stored in the rope
locker and routed out through the windlass to the
anchor chain.

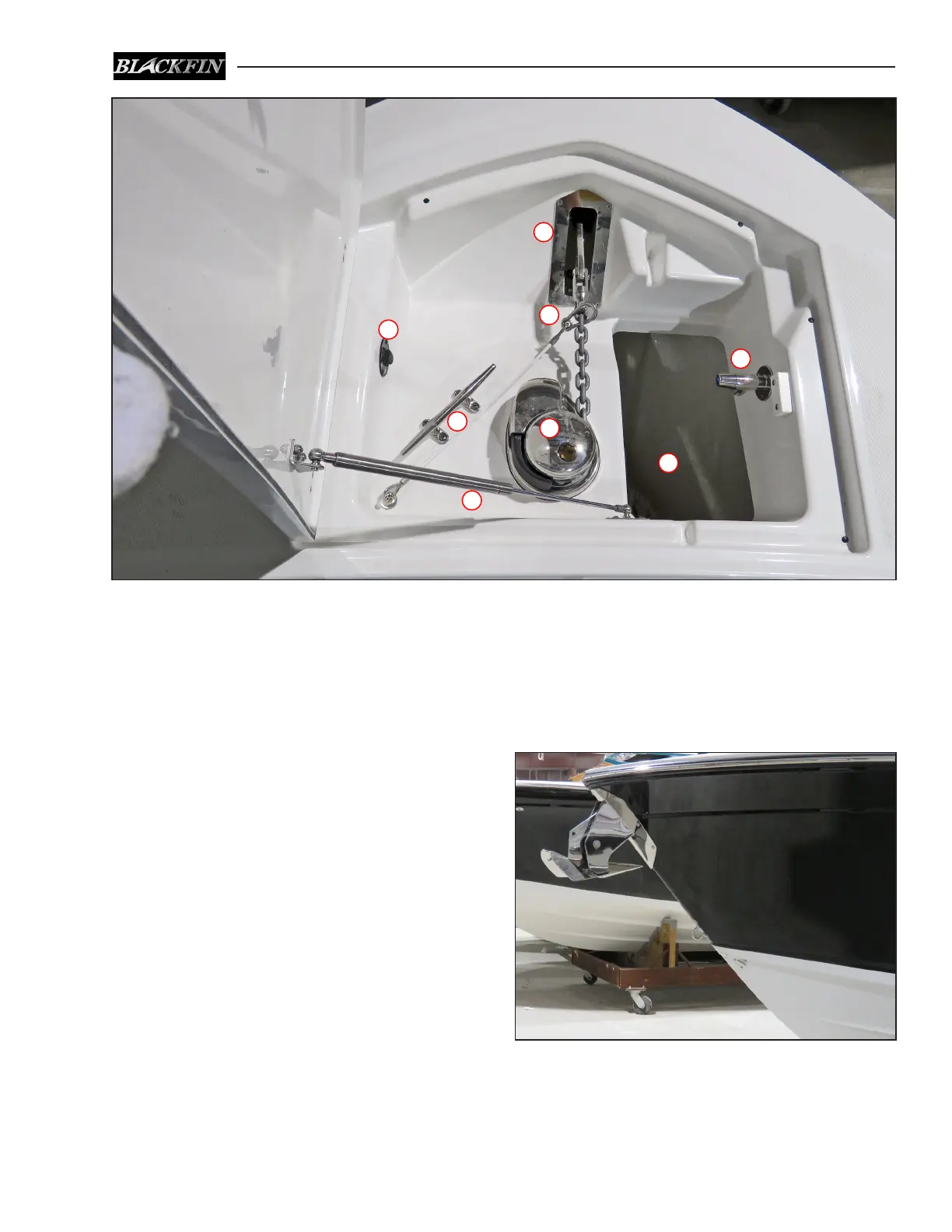

A. Raw Water Faucet E. Anchor Line Cleat
B. Gas Spring F. Bow Roller Assembly
C. Chain Binder G. Rope Locker
D. Windlass H. Windlass Switch
H
A
C
D
E
F
G
B
Windlass Compartment
Bow Roller & Anchor
To Next Page
