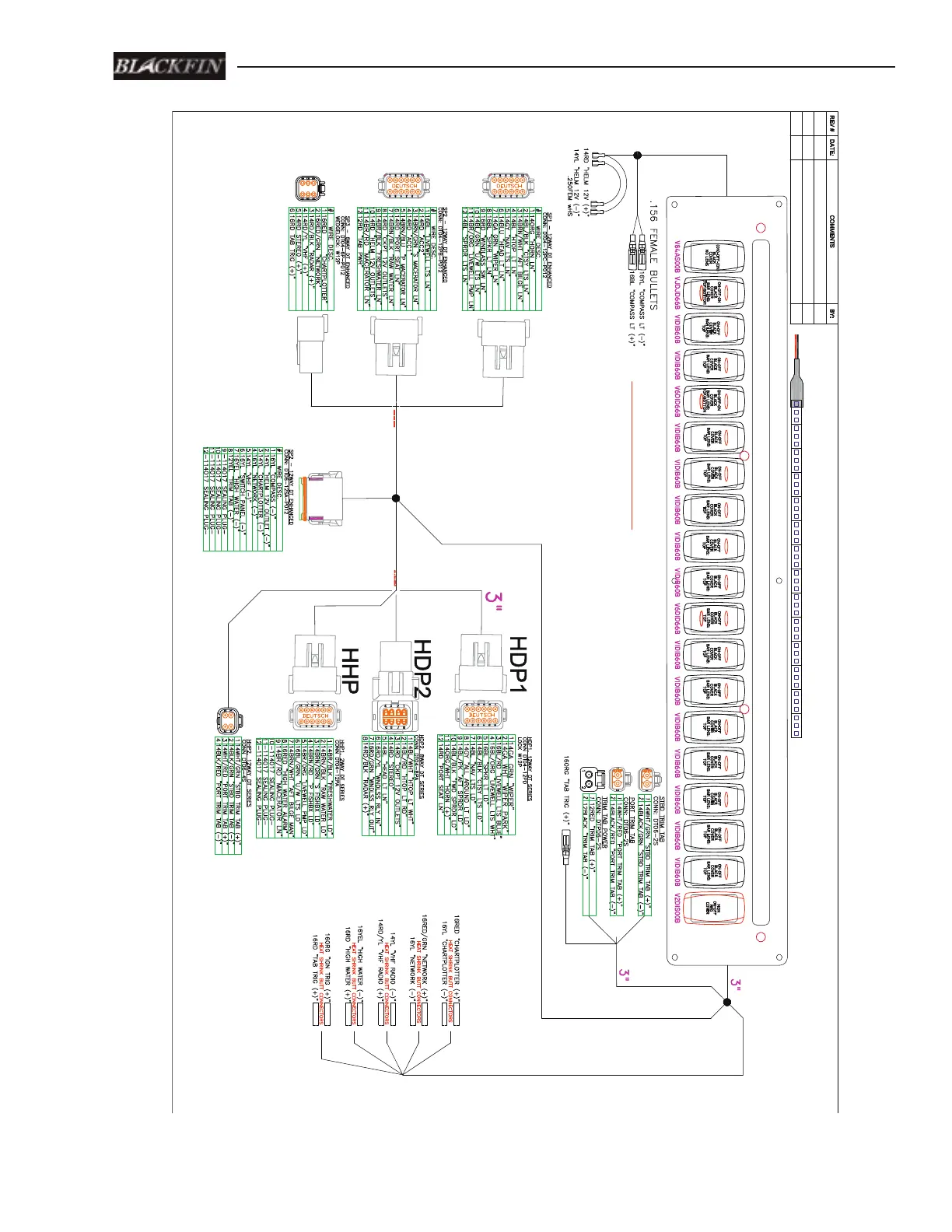

Blackfin 272 - Appendix A; Schematics; Helm Switch Panel

129
SCHEMATICS
A p p endix A :
Helm Switch Panel
HORN
BILGE
PUMP
NAVIG
ATION
LIGH
TS
COURT
ESY
LIGHT
S
HARD
TOP
LIGHT
S
SPEAK
ER
LIGHT
S
FORW
ARD
SPREA
DER
AFT
SPREA
DER
WINDL
ASS
LIVEW ELL
PUMP
W/S
WIPER
LIVEW ELL
LIGHTS
PORT
MACERATOR
STBD
MACERATOR
RAW WATER
PUMP
FRESH WATER
PUMP
ACC 2
UNDER
WATE
R
LIGHT
S
ACC 1
18"
12"
12"
CONNECTS TO
272DC HULL HARNESS
#SE-365
CONNECTS TO
272DC DECK HARNESS
#SE-366
0 4/13/18 MHPROTOTYPE
.125 ALUM
RACE BLACK POWDERCOAT BLANK ZP-SE-270APC
INSERT ZP-SE-271PEN INSERT BACKER ZP-SE-226P-1
QC - TEST BACKLIGHT BACKLIGHT AND COMPASS SHOULD LIGHT UP
WITH NAV LIGHT ON
A 2/21/19 MHADDED 18" TO "BP" DROP-OFF
LED: IP65-3528-30BLU
B 1/26/20 DH
CHANG ED TO NEW STYLE INSERTS
AND BLUE LED
CONNECTS TO
272/242DC 12V BRKR PANEL
#SE-362
3"
3"
3"
SP3
12"
3"
3"
24"
6"
HGB
3"
20"
12"
SP1
SP2
