D ra ina ge S y stem s

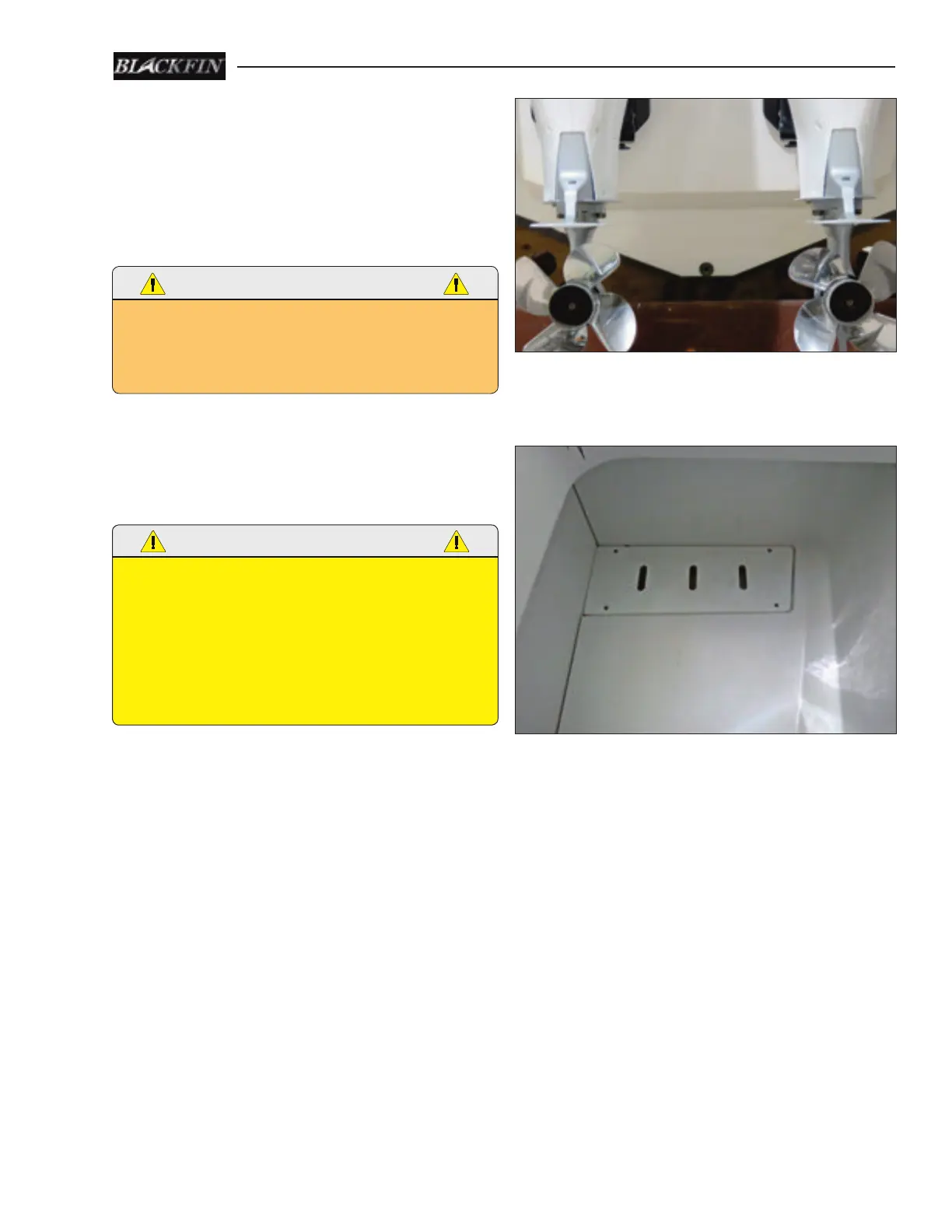

Transom Garboard Drain Plug
Garboard Drain Plug
When the boat is out of the water the bilge can be
drained by a garboard drain located in the tran-
som at the bottom of the hull. The plug should
be removed whenever the boat is hauled out of
the water and installed just prior to launching. It
is important to check the drain plug regularly to
make sure it is tight.
W ARNI NG
A LOOSE DRAIN PLUG WILL ALLOW SEAWATER TO
ENTER THE BILGE AND COULD CAUSE THE BOAT TO
SINK. IT IS VERY IMPORTANT TO CHECK THE DRAIN PLUG
FREQUENTLY TO ENSURE IT IS PROPERLY TIGHTENED.
Important:
Any oil spilled in the bilge must be thoroughly
removed and properly disposed of before op-
erating the bilge pump. The discharge of oil
fromthebilgeisillegalandsubjecttoane.
C AU T I O N
THE FEDERAL WATER POLLUTION CONTROL ACT
PROHIBITS THE DISCHARGE OF OIL OR OILY WASTE
INTO OR UPON THE NAVIGABLE WATERS OF THE UNITED
STATES OR THE WATERS OF THE CONTIGUOUS ZONE IF
SUCH DISCHARGE CAUSES A FILM OR SHEEN UPON OR
A DISCOLORATION OF THE SURFACE OF THE WATER OR
CAUSES A SLUDGE OR EMULSION BENEATH THE SURFACE
OF THE WATER. VIOLATORS ARE SUBJECT TO A PENALTY
OF $10,000.
9 . 4 H a rdtop D ra ins
There is a hole drilled in the leg bases on hardtop
frame to prevent water from being trapped within
the legs. Additional drain holes are drilled in the
tubing to drain other areas as required.
Always make sure the drain holes are clear when
the boat is laid up for the winter. Water trapped
inside the legs and frame could freeze and cause
the legs to split.
9 . 5 H ea d C om p a rtm ent D ra ins
The head compartment sole drains to the forward
bilge through a removable grate in the rear of the
sole. The forward bilge is drained overboard by the
forward bilge pump.
Head Compartment Drain Grate
9 . 6 Grey W a ter S y stem
If your boat is equipped with this option, all sinks
and the head compartment sole are drained by
the sump system which pumps waste water to the
waste/grey water holding tank in the bilge. The
sump system is controlled by an automatic switch
in the sump and is protected by a circuit breaker
in the battery switch panel. The sump system is
activated whenever the HOUSE battery switch is
on and is located in the forward in-oor storage
compartment bilge.
The uid level in the waste/grey water holding
tank is monitored by a lighted LED symbol in the
toilet control panel in the head compartment. The
symbol lighted green indicates the waste tank is
