Blackfin 272 - 12 Volt Accessory Switch Panels

58
E lec tric a l S y stem
. 6 1 2 v olt A c c essory S w itc h P a nels
The main accessory switch panel is located at the
helm. Most “push to reset” circuit breakers that
protect the accessories activated by the switches
are located in the circuit breaker panel in the
compartment forward of the helm. An LED light
built into the rocker switches indicates that the
circuit is activated.
If a breaker trips, the reset button pops out and
can be felt through the protective cover. Press
the button to reset the tripped breaker. If the
breaker trips again, nd and correct the problem
before resetting the breaker.
The following is a description of the acces-
sories controlled by the helm accessory
switches:
Windlass
A three position momentary switch that controls
the windlass. The middle position is o. Press
and hold the top of the switch to raise the anchor.
Press and hold the bottom of the switch to lower
the anchor. The switch automatically returns to
the o position when it is released.
Navigation Lights
The switch is a three-position switch. The middle
position is OFF. Moving the switch in one direc-
tion will activate the navigation lights. Moving
the switch in the opposite direction activates the
anchor light.
Bilge Pump
Manually activates the aft bilge pump located
in the stern bilge near the transom. The pump
moves water out a thru-hull tting in the hull. The
pump is also activated by an automatic switch that
is activated whenever the batteries are connected.
This pump will run as needed whenever water in
the bilge accumulates high enough to cause the
switch to activate and turn o when the water is
removed.
Notice:
Bilge pumps will start automatically when
thereissucientwaterinthebilgetoacti-
vate the automatic switch. Each automatic
switch is protected by a fuse located near the
batteries and is always supplied current when
the batteries are connected.
Courtesy Lights
Activates the lights below the gunnels that illumi-
nate the cockpit sole.
Hardtop Lights
A three position switch that actives the overhead
lights in the in the Hardtop liner. The center
position is OFF. Moving the switch in one direc-
tion will activate white overhead lights. Moving
the switch in the opposite direction activates red
overhead lights.
Notice:
Redlightshavelesseectonnightvisionand
should be selected if you need to illuminate
the bridge deck while navigating at night.
Speaker Lights
Activates the accent lights in the speakers.
Underwater Lights (Optional)
Activates the lights in the transom below the
waterline.

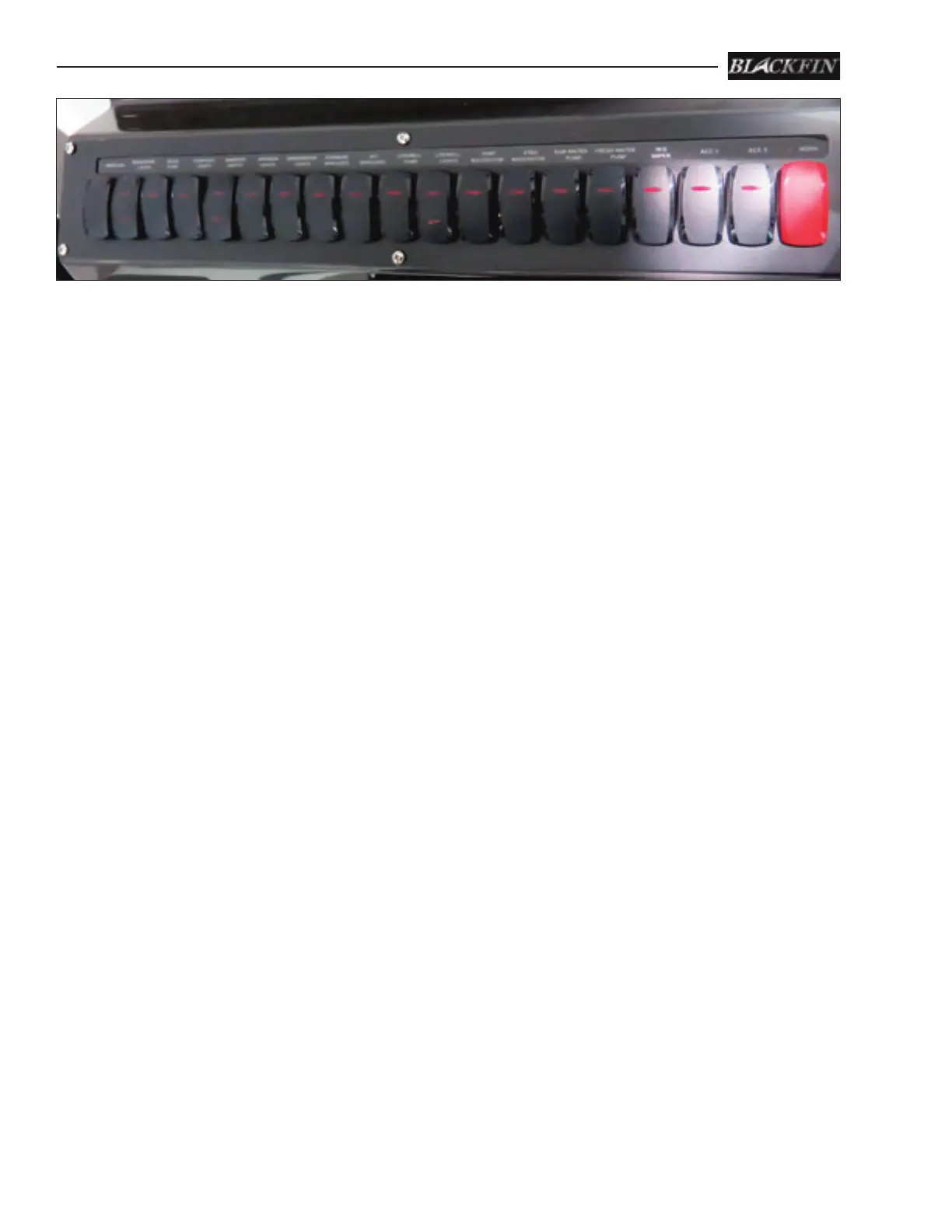

Helm Accessory Switch Panel
