E lec tric a l S y stem
Windlass Switch
A three position momentary switch located in the
windlass compartment that controls the wind-
lass. The middle position is o. Press and hold
the switch UP to raise the anchor. Press and hold
the switch DOWN to lower the anchor. The switch
automatically returns to the Middle (OFF) position
when it is released.
The primary windlass circuit is protected by a
heavy duty circuit breaker of the type and rat-
ing recommended by the windlass manufacturer
which is located in the helm circuit breaker panel.
Another “push to reset” breaker protects the wind-
lass switch circuits.
Port Lounge Seat Switch
A three position momentary switch located in the
passenger seat backrest next to the port lounge
seat. The middle position is o. Press and hold
the bottom of the switch to slide the seat back.
Press and hold the top of the switch to slide the
seat forward. The switch automatically returns
to the Middle (OFF) position when it is released.
Head Control Panel and Macerator Pump
Switch (Optional)
The optional electric head is controlled by switches
in a panel located in the head compartment.
Another momentary switch located in the head
control panel controls the optional overboard
discharge pump system for the holding tank and
marine head system. Monitor the waste level in
the tank while pumping and turn the waste dis-
charge switch OFF immediately when pumping is
complete.

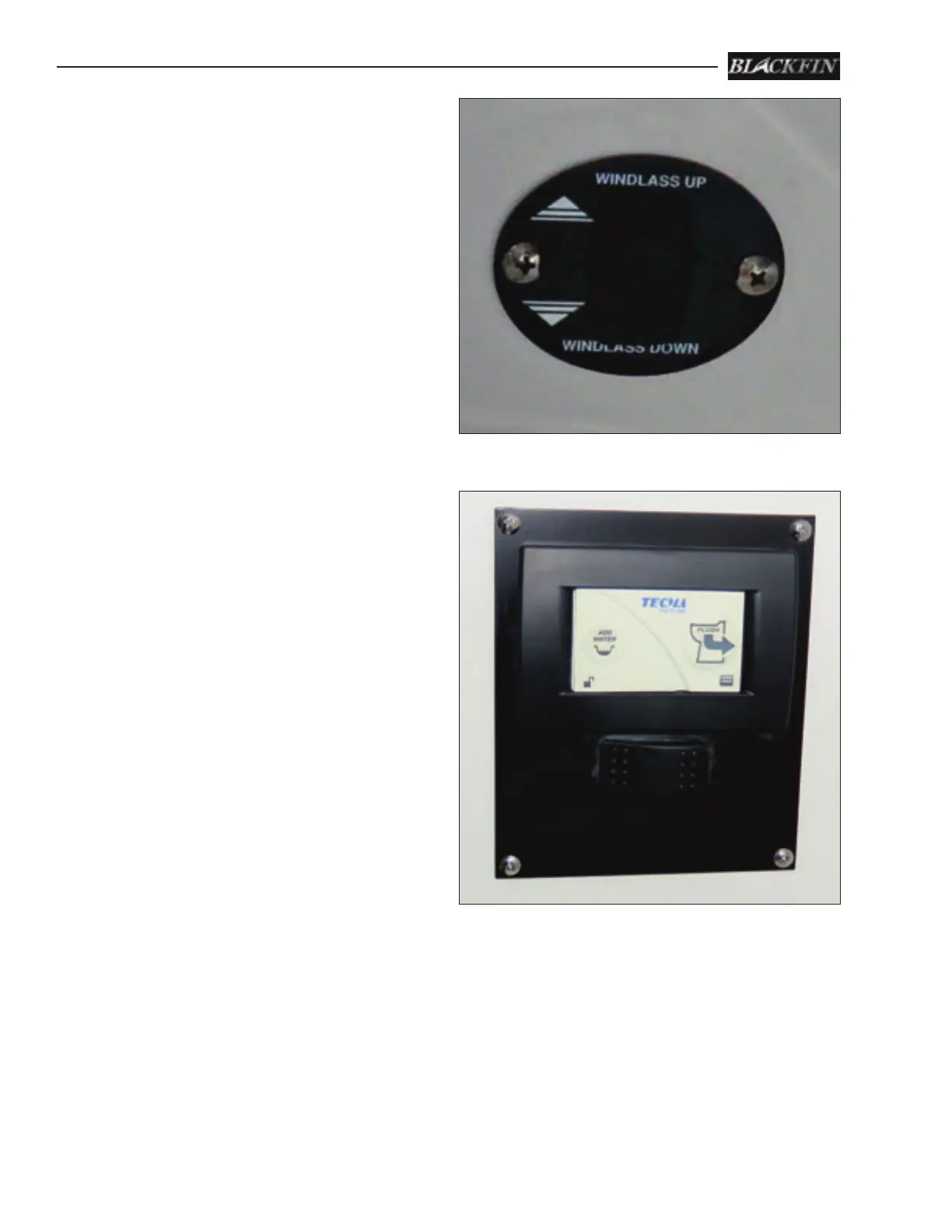

Windlass Switch In Windlass Compartment
Head Flush Control & Optional Overboard Macerator
Discharge Control Switches
