________________________________________PL10C / PL20B_____________________________________
10
V) TECHNICAL SPECIFICATIONS
Lifting capacity: 2500 kg
Lifting time: 50 seconds
Lowering time: 1 mn 40 seconds
Total weight (PL20): 550 kg
Total weight (PL10): 1370 kg
Noise level: 70 dB(A) / 1m
Working temperature: -10°C / +40°C
Working environment: covered
Dimensions :
Minimum height: 115 mm
Maximum height: 1700 mm
Width of frame: 770 mm
Length of frame: 2830 mm
Electromotor
Motor power: 1.1 kW
Voltage: 230V / 400V, 3 ph., +/-10%
Frequency: 50 Hz
Amperage: 230V : 5.8 A
400V : 3.4 A
Number of wires: 3 + earth
Speed: 1380 rpm

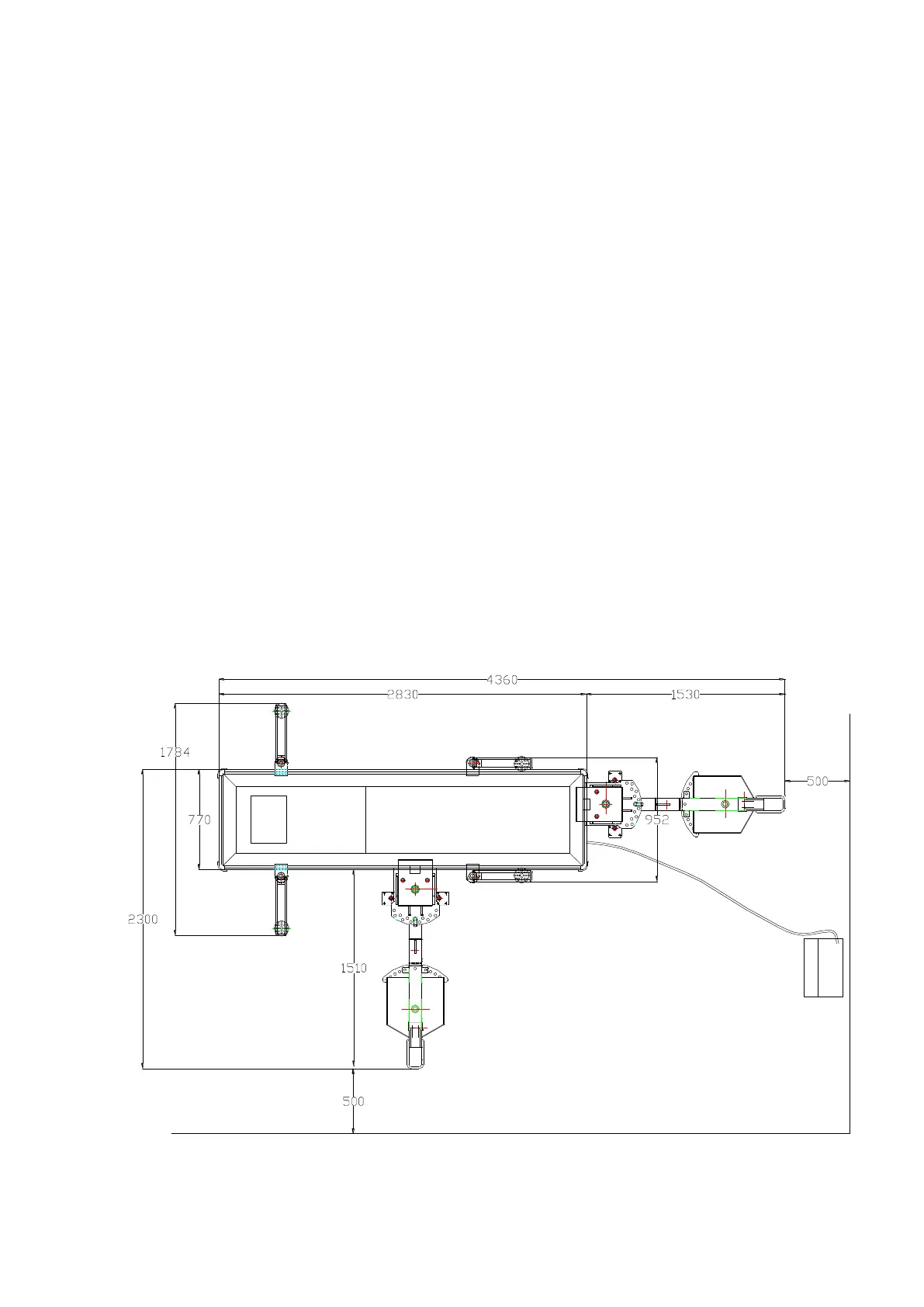

Figure 12
