INSTALLATION OF HOSES
1. Remove the packing from the lift.
2. Lower the lift into the place where it is to be installed using a load lifting equipment with sufficient capacity.
While doing this, keep in mind the locations of the hose connections.
Insert the hydraulic hoses and the limit switch wires through the pipe into the pump.
3. Connect the hydraulic hoses to the valve block of the pump. (Figure 14).

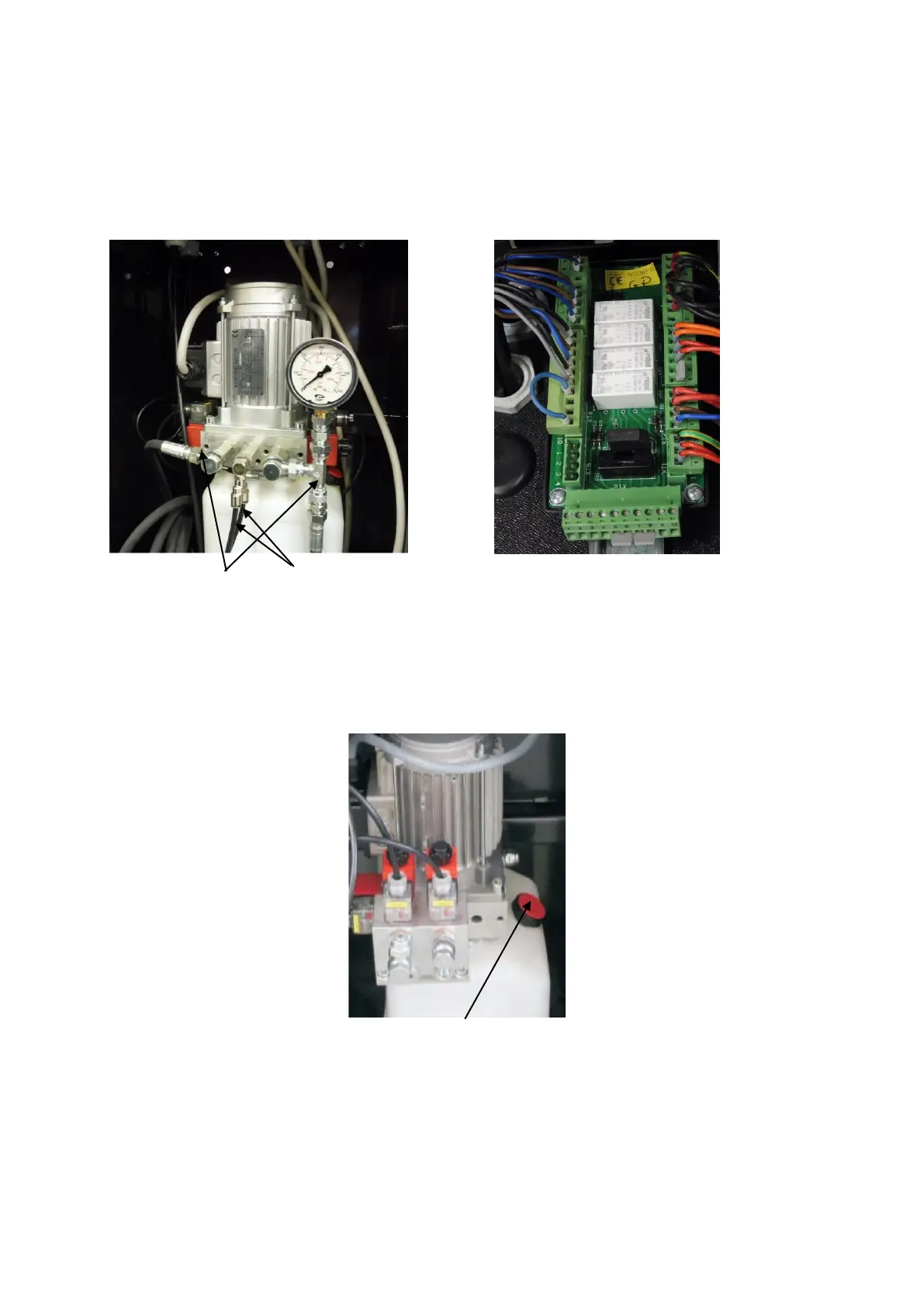

Figure 14 Figure 15
Oil return hose
Hydraulic connections
4. Connect the limit switch cables of the lift to the XT6 connector of the pump circuit board. (Figure 15).
FILLING THE HYDRAULIC SYSTEM
Fill the oil tank with around 10 litres of hydraulic oil, for example BLACKHAWK oil LX22Y or Fina Hydran TS32 or similar
oil. (Figure 16)
Figure 16
Oil filler cap
CONNECTING TO THE MAINS
